SFP+-lähetin-vastaanotinmoduuli BlueOptics Hirschmann 942211001 10000 Mbit/s

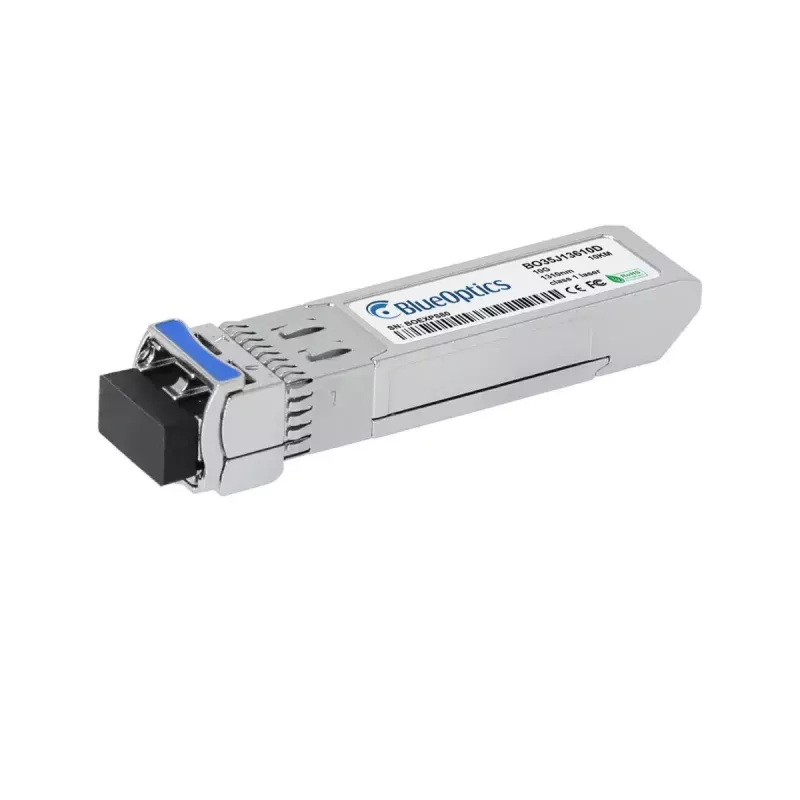

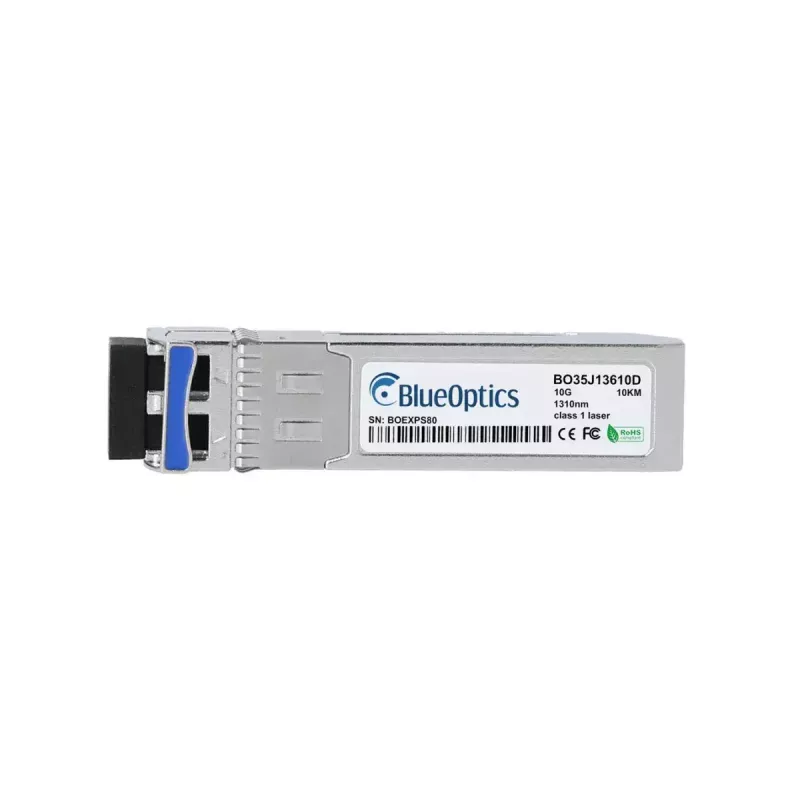

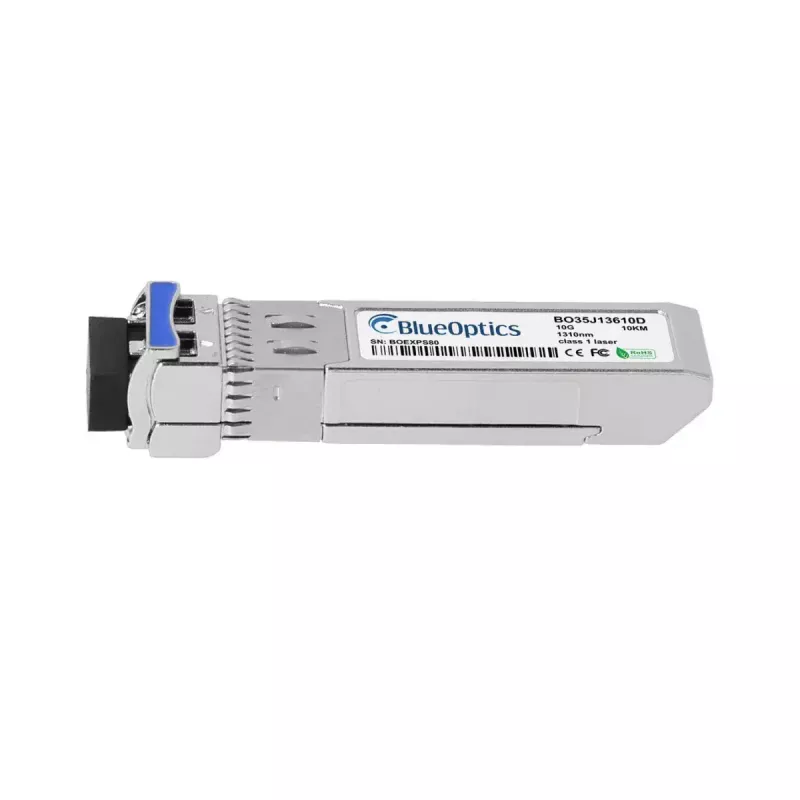

The BlueOptics Hirschmann 942211001 10000 Mbit/s SFP+ transceiver module is a single-mode fiber optic plug-in designed for 10 Gbit/s links. It implements the 10GBASE-LR optical specification with LC duplex connectivity and operates at 1310 nm for both transmit and receive. The module is produced to meet CE, RoHS and FCC requirements and is intended as a compatible replacement for Hirschmann platforms and other devices that support the original Hirschmann 942211001 SFP+ module. With a compact silver metal housing and a weight of approximately 20 g, this transceiver is intended for use in network switches, routers, storage systems and other high-speed networking equipment.

Advantages

The SFP+ transceiver provides 10 Gbit/s data throughput over single-mode fiber for links up to typical 10 kilometers when used in accordance with the 10GBASE-LR standard. Its MSA-compliant LC duplex interface ensures physical compatibility with equipment that accepts standard SFP+ modules. The module supports digital diagnostics (DDM/DOM) when the host hardware exposes the feature, enabling real-time monitoring of supply voltage, laser bias current, optical output/input power and internal temperature. The compact silver housing and low weight simplify installation and reduce port density impact in dense rack environments.

Suitable for

• 10 Gbit/s fiber links between switches and routers
• Long-reach single-mode connections up to ~10 km
• Interconnecting storage systems and servers over optical links
• Replacing or upgrading SFP+ ports in Hirschmann-compatible hardware

Key specifications

• Interface type: SFP+
• Optical standard: 10GBASE-LR (single-mode)
• Wavelength: 1310 nm (TX and RX)

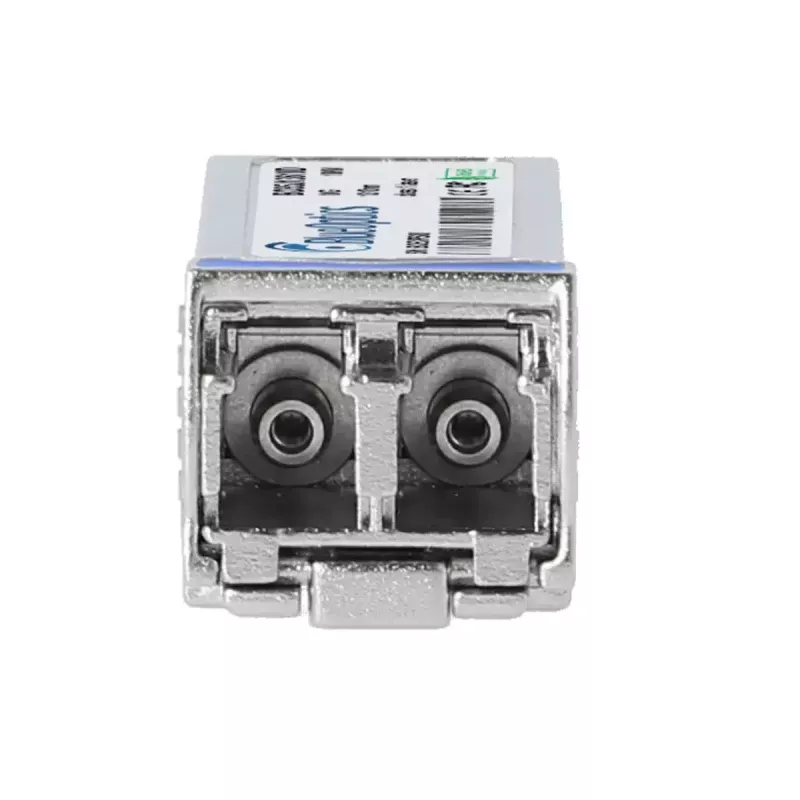

• Connector: LC duplex
• Maximum data rate: 10000 Mbit/s (10 Gbit/s)
• Typical reach: up to 10 km over single-mode fiber
• Compliance: CE, RoHS, FCC
• Housing colour: silver
• Weight: approx. 0.02 kg

How to use

Install the SFP+ module into a compatible SFP+ slot on a switch, router or storage device while the host equipment is powered down or according to the vendor's hot-swap procedure. Connect an LC duplex single-mode patch cable to the module, observing correct orientation for transmit and receive fibers. Confirm that the host device supports 10GBASE-LR and, if required, enable or verify DDM/DOM support in the host software to access diagnostics. After insertion and connection, verify link formation and data rate using the device management interface or monitoring tools.

Recommendations

Use high-quality single-mode LC duplex patch cords and maintain clean fiber connectors to ensure optimal signal quality. Verify compatibility with the target Hirschmann or other vendor hardware and confirm that any required firmware or software settings for third‑party modules are applied. For diagnostic monitoring, ensure the host supports DDM/DOM to receive real-time optical and electrical parameters.
