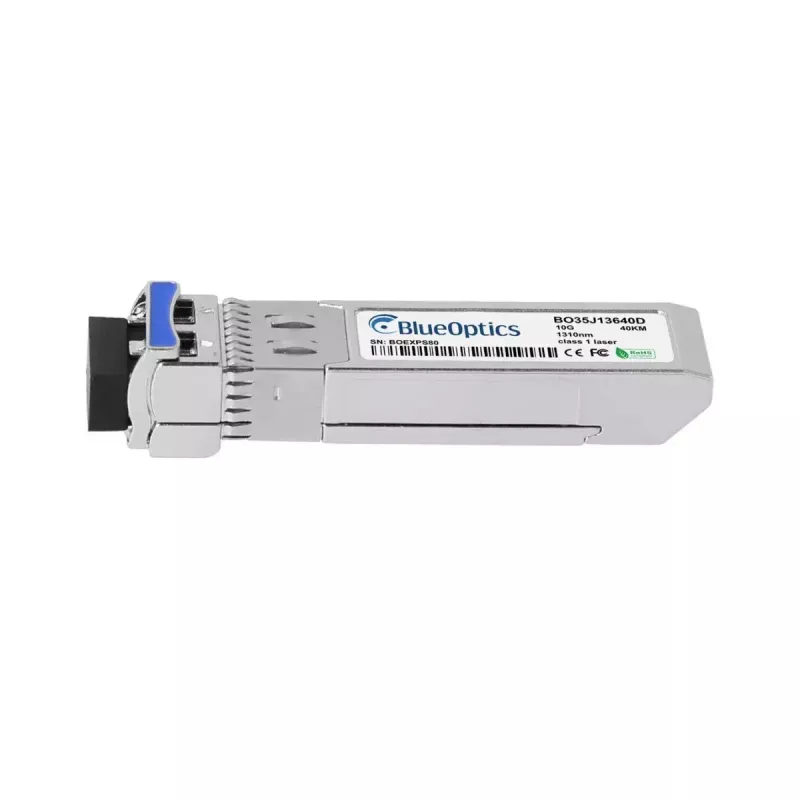

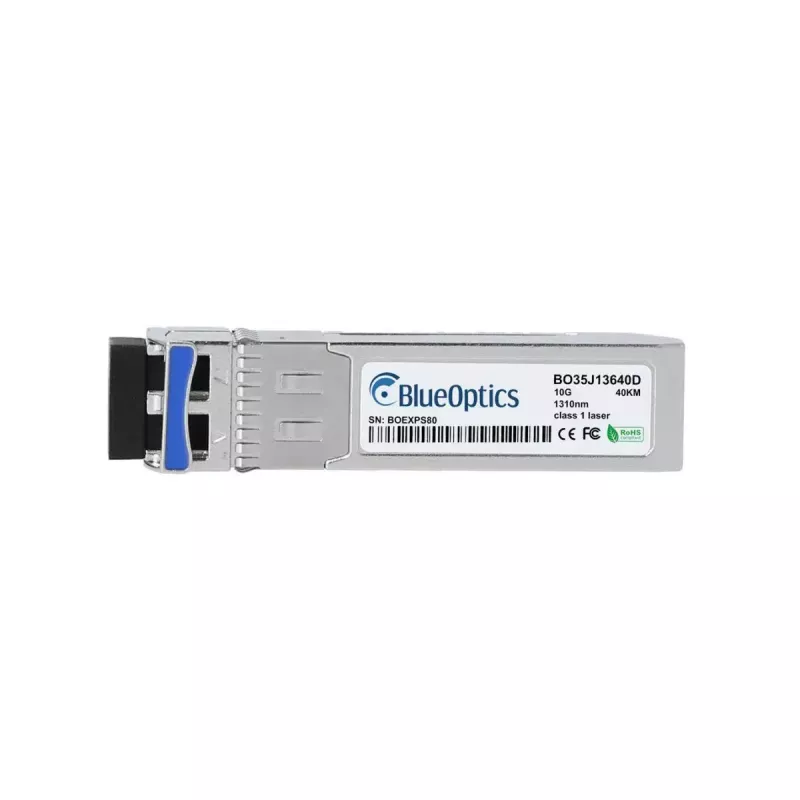

SFP+ lähetin-vastaanotinmoduuli BlueOptics JDDYH-AS-BO 10000 Mbit/s kuitu

The BlueOptics JDDYH-AS-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s networks. Housed in a metal enclosure and weighing 20 g, it implements the SFP+ interface and supports single-mode fiber links with LC duplex connectors. The module is engineered for long-term use with an MTBF of 1,000,000 hours and conforms to MSA mechanical and electrical specifications for pluggable optics.

Advantages

The transceiver provides a 10,000 Mbit/s maximum data transfer rate in a compact SFP+ form factor, enabling high-speed Ethernet and Fibre Channel over Ethernet applications. Its metal housing increases durability and EMI resistance, while industry-standard interoperability ensures compatibility with major network hardware that accepts MSA-compliant SFP+ modules. Digital diagnostic monitoring (DDM/DOM) support offers real-time access to parameters such as supply voltage, temperature, laser bias and optical power, simplifying remote maintenance and troubleshooting.

Suitable for

• 10G Ethernet uplinks and aggregation links
• Long-distance single-mode fiber connections
• Data center switches, routers and storage systems
• Fibre Channel over Ethernet and SDH/SONET high-speed links

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10,000 Mbit/s
• Connector: LC duplex (single-mode)
• Transmitter/receiver wavelength: 1310 nm (single-mode)
• Typical reach: up to multi-kilometer/extended range (designed for long-haul single-mode use)
• Housing material: metal
• Weight: 0.02 kg
• Digital diagnostics: DDM/DOM (MSA SFF-8472 compliant)
• Compliance: MSA-based form factor and electrical specifications

How to use

Insert the BlueOptics JDDYH-AS-BO into any compatible SFP+ slot on switches, routers or storage devices while the host device is powered according to the vendor's instructions. Connect LC duplex single-mode fiber patch cords to the module, observing correct TX/RX orientation. Verify link status and DDM/DOM parameters through the host system's management interface to confirm correct operation and to monitor optical power, temperature and voltage levels.

Recommendations

For optimal performance use certified single-mode fiber patch cables and ensure the host hardware supports MSA-compliant SFP+ modules and DDM/DOM if remote diagnostics are required. Avoid exposing the module to mechanical shock or contaminants on fiber endfaces; clean connectors before mating and follow the equipment manufacturer's insertion/removal guidelines.
