SFP-lähetin-vastaanotinmoduuli BlueOptics SFPP-S12-40-BO 10000 Mbit/s kuitu

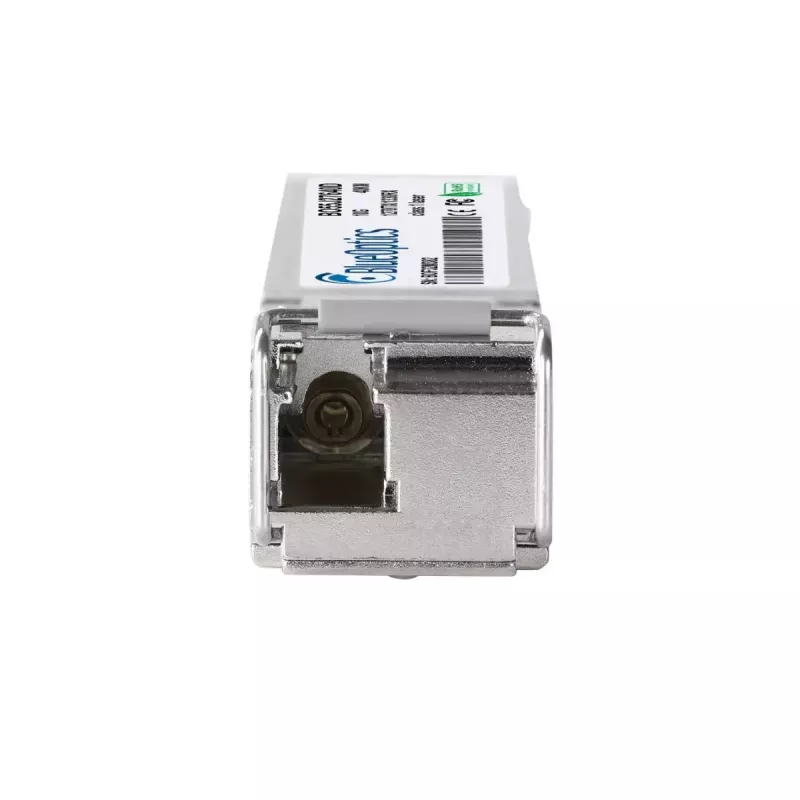

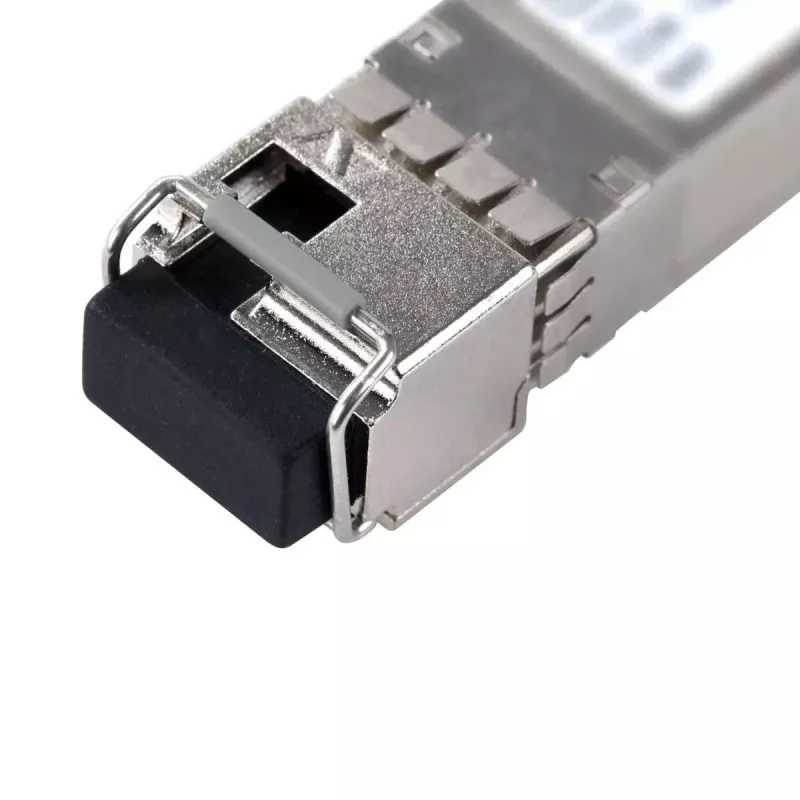

The BlueOptics SFPP-S12-40-BO is a compact SFP+ fiber optic transceiver module designed for 10 Gbit/s networks. Housed in a metal casing and weighing approximately 3 g, the module operates from a 3.3 V supply and provides single-mode optical transmission using an LC simplex connector. It supports 10GBASE-BX-U style single-fiber operation with separate wavelengths for transmit and receive, enabling high-speed links over long distances in networking equipment that accepts SFP+ modules.

Advantages

The module combines a standardized form factor with a metal housing for reliable mechanical stability and heat dissipation. With a 10 000 Mbit/s maximum data transfer rate and a lightweight design, it is suitable for dense deployment in switches, routers and other communications hardware. Built to meet industry MSA form-factor expectations, the transceiver supports digital diagnostics (when the host device provides DDM/DOM support) to monitor supply voltage, optical output and input power, laser bias current and temperature in real time.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFPP-S12-40-BO into a compatible SFP+ port on your switch, router or other network device while the host is powered on or off according to the device manual; the module is hot-pluggable. Connect a single-mode LC simplex fiber patch cable, observing the correct orientation for transmit and receive wavelengths. Ensure the host device supports BX-U single-fiber operation and, if you plan to use digital diagnostics, that DDM/DOM is enabled on the equipment to access real-time monitoring data.

Recommendations

Use quality single-mode fiber and LC simplex patch cables rated for 10 Gbit/s and verify compatibility with the target hardware. Keep optical connectors clean and capped when not in use. If monitoring is required, enable DDM/DOM in the host system and check measured parameters during commissioning and maintenance to confirm link health.
