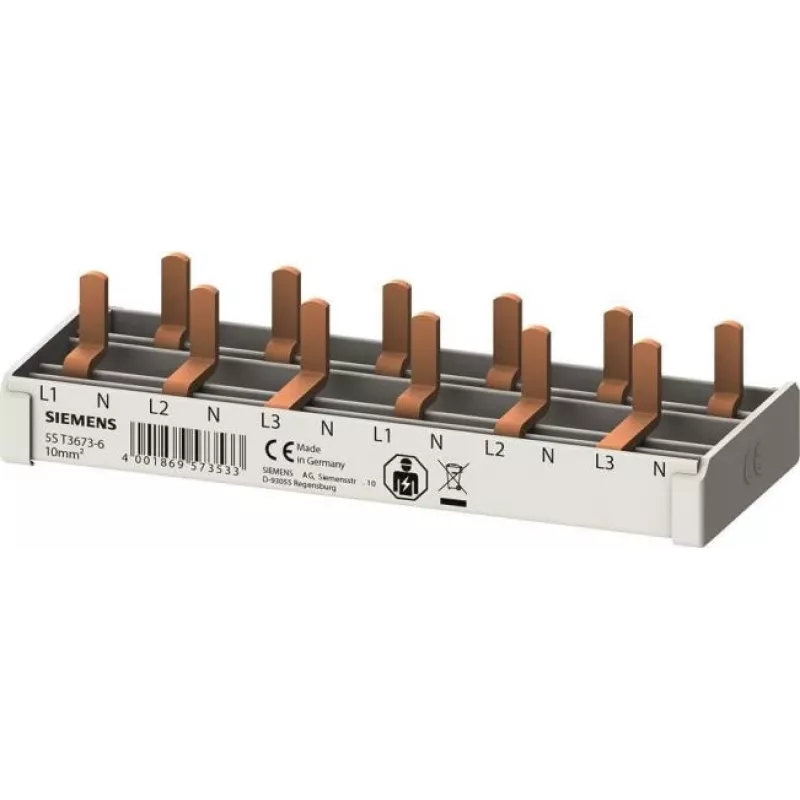

Siemens 5ST3673-6 kompakti piikkikisko 10 mm² 6 TE 1-napainen harmaa

The Siemens 5ST3673-6 is a high-quality compact pin busbar designed for use with Siemens SENTRON modular devices. With a conductor cross-section of 10 mm² and 6 module widths (TE), this 1-pole busbar ensures reliable power distribution in electrical installations. Its grey thermoplastic insulation and copper conductor provide durability and excellent conductivity.

Advantages

This pin busbar offers a space-saving design with a compact 6 TE width, making it ideal for crowded distribution boards. The pin connection method ensures secure and easy installation, while the rated current of 63 A and voltage of 400 V AC support demanding applications. Compliant with IEC 60947-7-1, it guarantees safety and performance.

Suitable for

• Modular electrical distribution systems
• Industrial and commercial power distribution
• Integration with Siemens SENTRON series devices

Key specifications

• Product Type: Pin Busbar
• Number of Poles: 1
• Conductor Cross-section: 10 mm²
• Number of Module Widths: 6 TE
• Rated Operational Current (Ie): 63 A
• Rated Operational Voltage (Ue): 400 V AC
• Connection Method: Pin connection
• Conductor Material: Copper
• Insulation Material: Thermoplastic
• Mounting: For DIN rail modular devices
• Compatibility: Siemens SENTRON modular devices
• Overall Length: 108 mm
• Overall Width: 17.5 mm
• Overall Height: 35 mm
• Color of Insulation: Grey
• Operating Temperature: -25 to +55 °C
• Storage Temperature: -40 to +75 °C
• Standard: IEC 60947-7-1

Recommendations

For optimal performance, pair this busbar with compatible Siemens SENTRON circuit breakers and accessories. Ensure proper installation by a qualified electrician.
