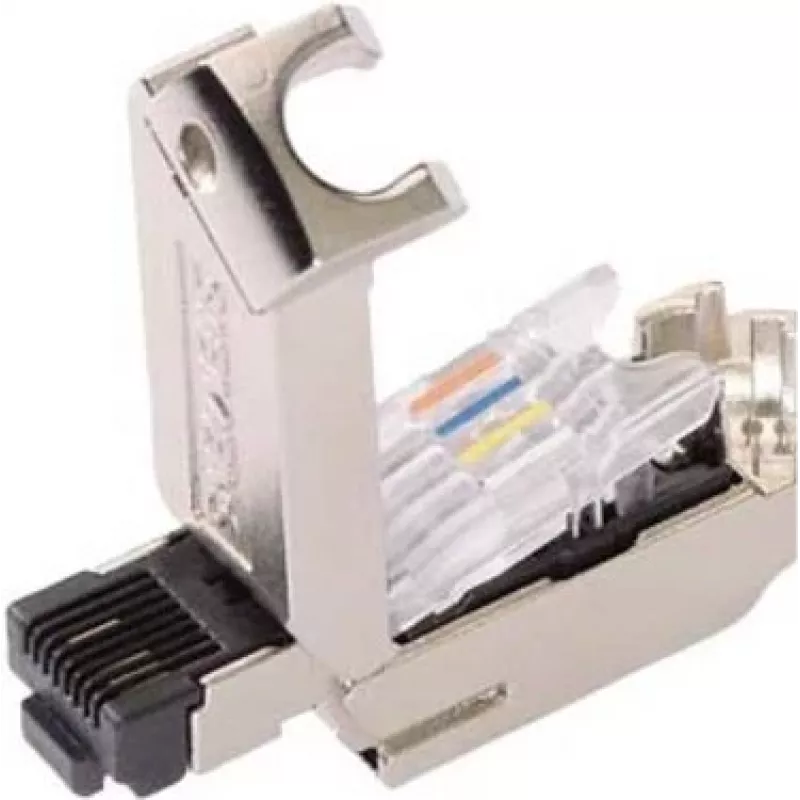

Siemens Industrial Ethernet RJ45 FastConnect -liitin 6GK1901-1BB30-0AE0

Gigabit-ready and field-proven, the Siemens 6GK1901-1BB30-0AE0 delivers a robust RJ45 connection for PROFINET and Industrial Ethernet networks. Its FastConnect insulation displacement technology strips and terminates all 8 wires in a single motion, cutting installation time by up to 80% compared to traditional crimping.

Overview

This industrial-grade RJ45 plug is engineered for 10/100/1000 Mbit/s data rates over Siemens IE FC TP cables (4x2, AWG24). The straight 180° cable outlet suits tight cabinet layouts and machine-level wiring. A full metal housing with integrated shielding provides excellent EMC protection, while the IP20 rating matches typical control panel environments.

What stands out

• FastConnect IDC termination – no special tools required, just a standard stripping tool
• Supports Gigabit Ethernet for high-speed PROFINET applications
• Compact metal housing with integrated strain relief and shielding
• Wide operating temperature range from -40°C to +70°C
• Over 500 mating cycles for long service life
• CE, UL, cUL, and RoHS approved

Technical details

• Connector type: RJ45 plug, 8-pole (4 pairs)
• Cable outlet: 180° (straight)
• Compatible cable: Siemens IE FC TP 4x2 AWG24
• Connection technology: FastConnect (insulation displacement contacts)
• Data transfer rate: 10/100/1000 Mbit/s
• Housing material: Metal, silver/grey
• Protection class: IP20
• Operating temperature: -40°C to +70°C
• Storage temperature: -40°C to +80°C
• Relative humidity: max. 95% non-condensing
• Mating cycles: >500
• Mounting: field-assembly
• Approvals: CE, UL, cUL, RoHS

Our verdict

For PROFINET installations demanding speed and reliability, this connector is a smart choice. Its FastConnect design slashes assembly time, and the metal shielding ensures signal integrity even in noisy industrial environments. A dependable, long-lasting solution for Ethernet connectivity in automation.
