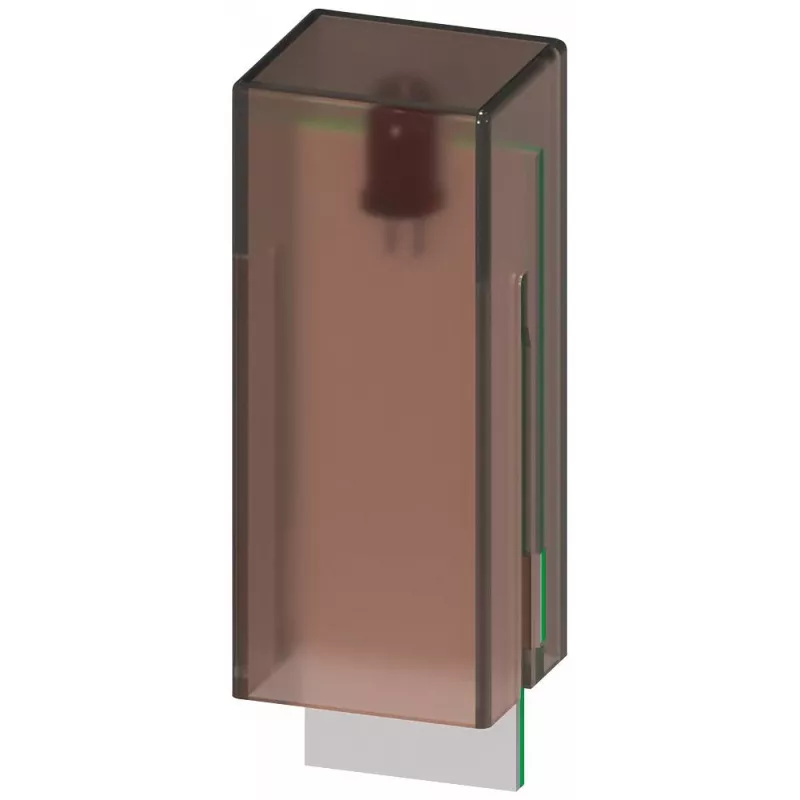

Siemens LED-moduuli 24 V DC punainen LZS:PTML0024

Industrial control panels often require clear, reliable status indication. The Siemens LED module LZS:PTML0024 provides a bright red LED light source for SIRIUS ACT signaling columns and indicator lights, ensuring operators can quickly assess machine states.

Who is it for

This module is intended for panel builders, machine integrators, and maintenance technicians who need a durable, low-power indicator light for 24 V DC control systems.

Main features

• Red LED illumination for high visibility
• Operates on 24 V DC with only 15 mA current consumption
• Long service life of 100,000 hours
• Rear panel mounting with screw terminals for secure connection
• Compatible with Siemens SIRIUS ACT series

Specifications

• Illumination type: LED
• Light colour: Red
• Operating voltage: 24 V DC
• Current consumption: 15 mA
• Power loss: 0.36 W
• Service life: 100,000 h
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Material: Plastic
• Number of LEDs: 1

Tips

Ensure the module is used within the specified temperature range and voltage to maintain optimal performance and longevity.
