Siemens LZX:RT314024 pistoke-rele 24 V DC 2 CO 8 A

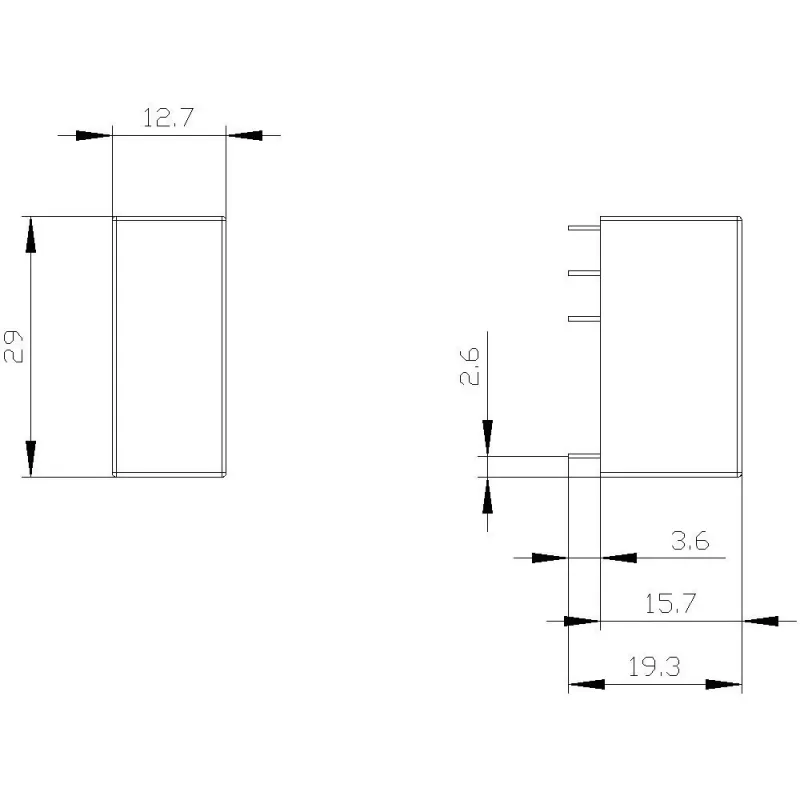

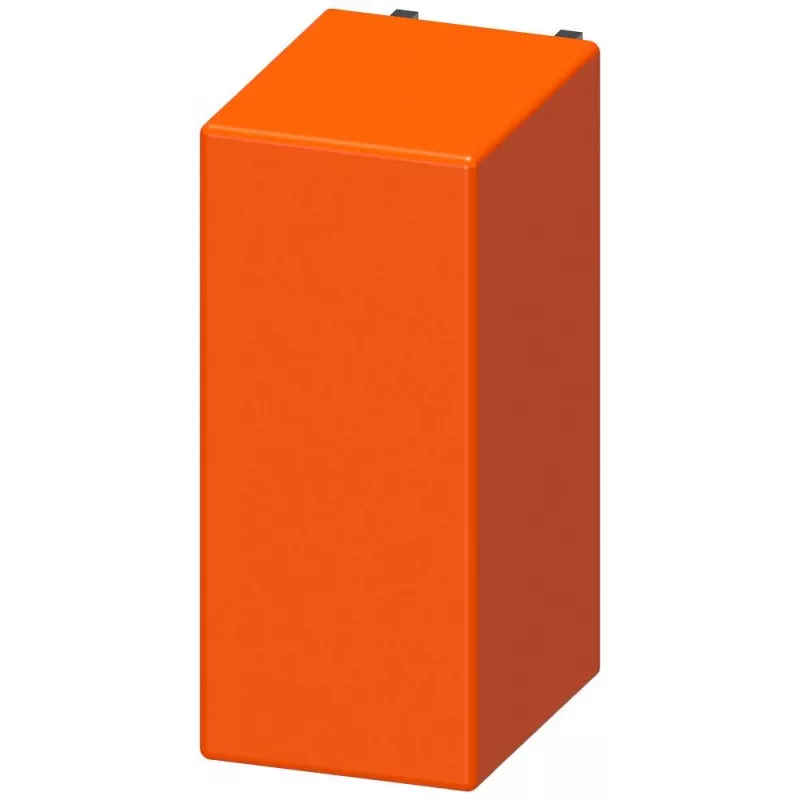

The Siemens LZX:RT314024 stands out as a compact plug-in interface relay with a 15 mm width, delivering reliable switching in a space-saving design. Its 24 V DC coil consumes just 1 W, making it an energy-efficient choice for control cabinet applications.

Highlights

• 2 changeover contacts (DPDT) rated for 8 A at 250 V AC
• High dielectric strength: 5000 V AC between coil and contacts
• Wide operating temperature range from -40 to +70 °C
• Long mechanical life of 10 million operations

In daily use

This relay plugs into standard sockets, simplifying installation and replacement. It is suited for general-purpose switching in industrial controls, HVAC systems, and building automation. The LED indicator (if equipped) provides clear status at a glance, though the base model may not include it.

Full specifications

• Relay type: Plug-in interface relay
• Coil voltage: 24 V DC
• Coil power consumption: 1 W

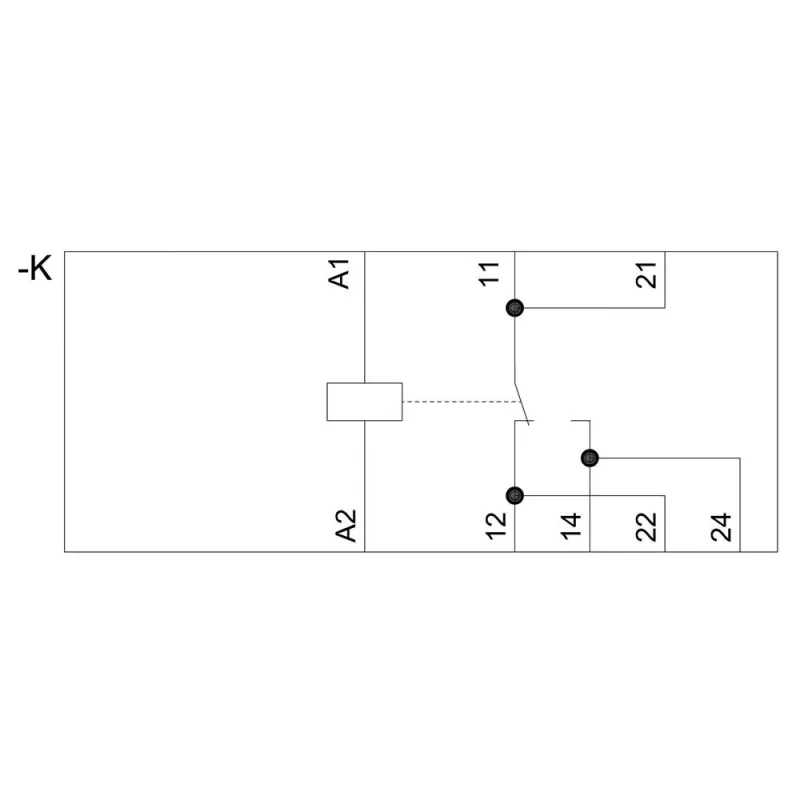

• Contact configuration: 2 CO (DPDT)
• Rated switching current (AC1): 8 A
• Rated switching voltage: 250 V AC
• Max. switching power AC1: 2000 VA
• Max. switching power DC1: 240 W
• Dielectric strength coil-contact: 5000 V AC
• Dielectric strength open contacts: 1000 V AC
• Electrical life at rated load: 100,000 operations
• Mechanical life: 10,000,000 operations
• Operating temperature: -40 to +70 °C
• Mounting: Plug-in
• Protection degree: IP20
• Terminal type: Plug-in pins
• Number of pins: 8
• Housing material: PA 6.6 (polyamide)
• Standards: CE, UL, CSA, VDE

Final note

A reliable and compact relay for demanding switching tasks, backed by Siemens engineering.
