Siemens PROFIBUS maakaapeli 6XV1830-3FH10 - 1 m

Industrial PROFIBUS DP cable for direct burial and outdoor use, built with a violet PE jacket and copper braid shielding for reliable data transmission up to 12 Mbit/s.

Advantages

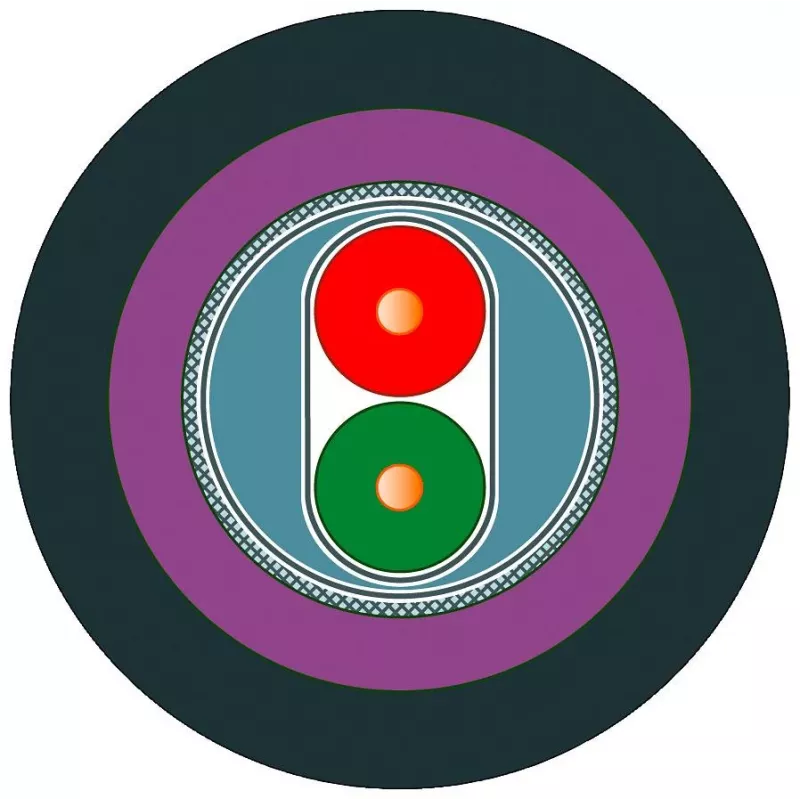

Designed for direct burial, this cable withstands harsh outdoor environments with UV resistance and an operating temperature range of -40 to +70 °C. The overall copper braided shield and twisted pair construction ensure signal integrity in noisy industrial settings.

Suitable for

• PROFIBUS DP networks in outdoor or underground installations
• Industrial automation systems requiring robust, long-distance communication
• Applications where resistance to UV and moisture is essential

Key specifications

• Cable length: 1 m
• Number of cores: 2 (twisted pair)
• Conductor material: bare copper, 0.64 mm diameter (AWG 22)
• Characteristic impedance: 150 Ohm (3-20 MHz)
• Loop resistance: max. 110 Ohm/km
• Capacitance: max. 28 pF/m
• Attenuation: max. 9.6 dB/km at 16 MHz
• Outer jacket: PE, violet, 8 mm diameter
• Operating temperature: -40 to +70 °C

Recommendations

Ideal for PROFIBUS DP installations that require direct burial without additional conduit, offering long-term reliability in outdoor industrial environments.
