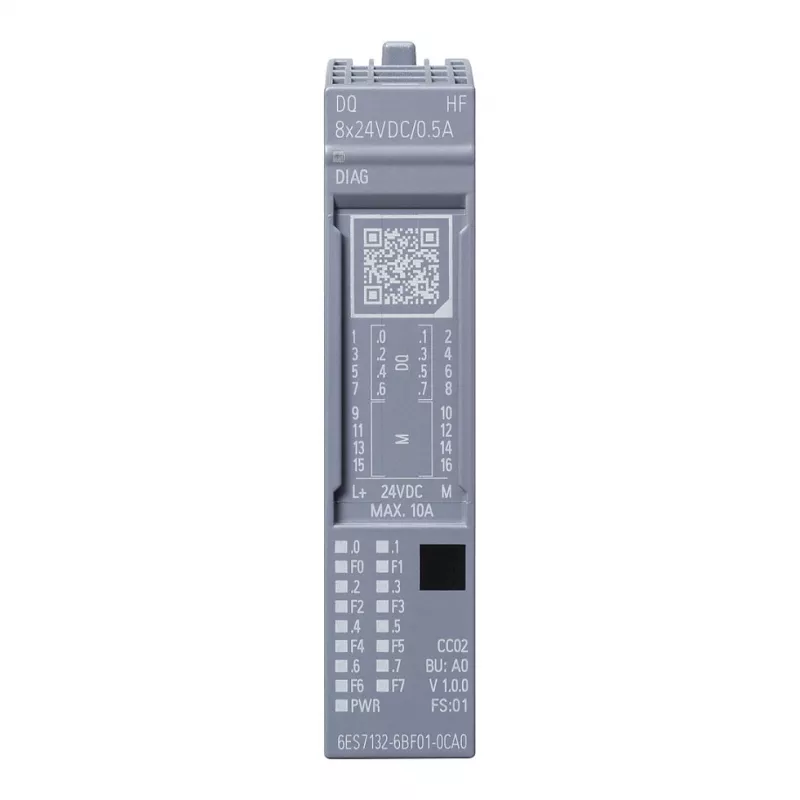

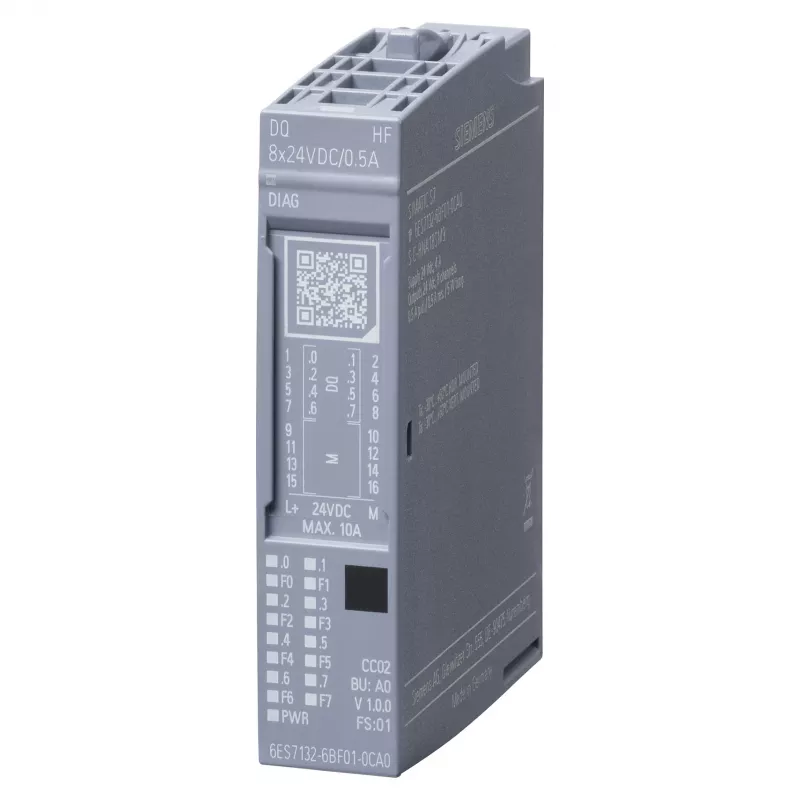

Siemens SIMATIC ET 200SP digitaalilähtömoduuli DQ 8x24VDC 6ES7132-6BF01-0CA0

Industrial automation often demands reliable, high-speed digital outputs that can drive actuators, valves, and indicator lights without failure. The Siemens SIMATIC ET 200SP Digital Output Module DQ 8x24VDC (6ES7132-6BF01-0CA0) addresses this need by providing eight sourcing outputs with robust protection and diagnostics, ensuring smooth operation in demanding environments.

Who is it for

This module is ideal for system integrators, machine builders, and maintenance engineers who use the SIMATIC ET 200SP distributed I/O system. It suits applications in manufacturing, packaging, and process automation where space is limited and reliability is paramount.

Main features

• 8 digital outputs, 24V DC, sourcing (high-side switching), 0.5 A per channel.
• Short-circuit and overload protection for each output.
• Reverse polarity protection for the supply voltage.
• Diagnostics: wire break, short circuit, overload, and supply voltage monitoring.
• Hot-swappable module for easy maintenance without stopping the system.
• Firmware update capable for future enhancements.

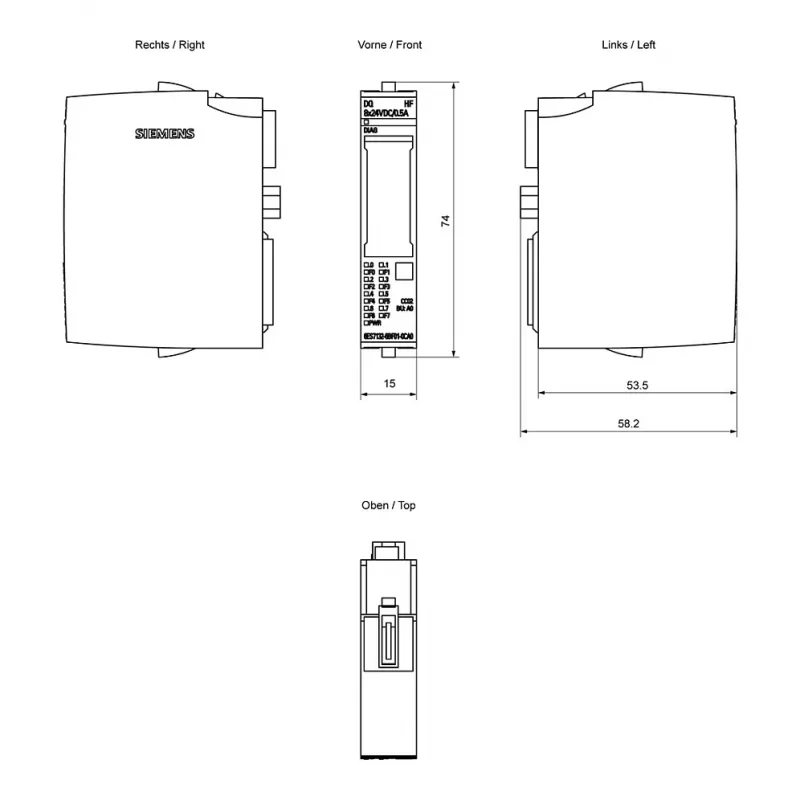

• Compact design for ET 200SP station, mounts on DIN rail.
• Requires a separate BaseUnit (BU) for field wiring connections.

Specifications

• Product series: SIMATIC ET 200SP ST
• Number of digital outputs: 8
• Output voltage: 24V DC
• Output current per channel: 0.5 A
• Output type: Sourcing (high-side switching)
• Short-circuit protection: Yes
• Overload protection: Yes
• Reverse polarity protection: Yes (supply voltage)
• Isolation: Yes (between channels and backplane bus)
• Power loss: Max. 1.5 W
• Operating temperature: -30 to +60 °C (horizontal), -30 to +50 °C (vertical)
• Degree of protection: IP20
• Mounting type: DIN Rail

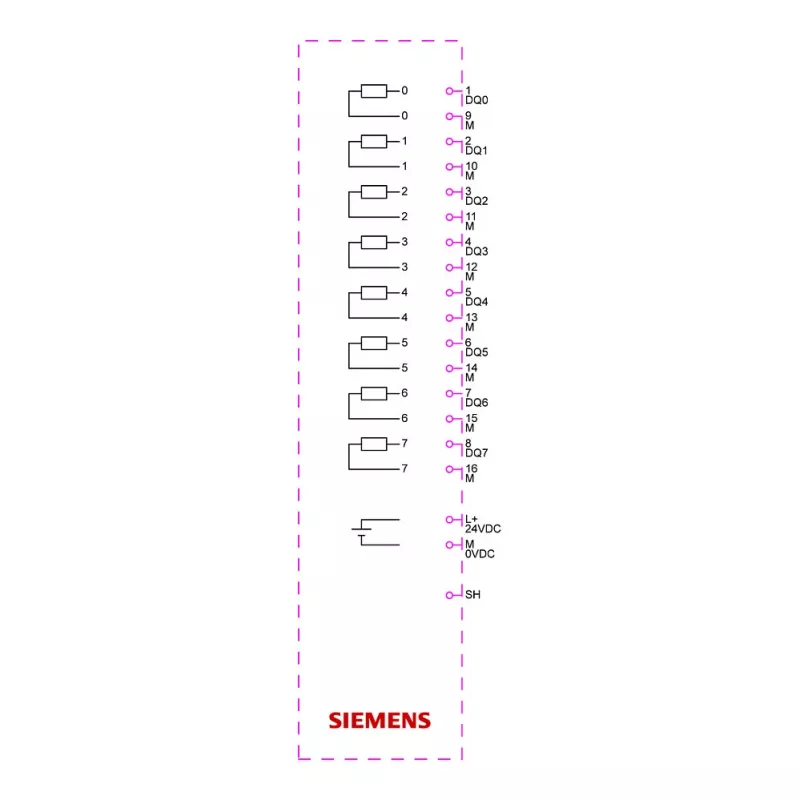

• Connection type: Requires BaseUnit (BU) for terminal connection
• Diagnostics functions: Wire break, short circuit, overload, supply voltage monitoring
• Firmware update: Yes

Tips

For optimal performance, ensure the module is mounted on a standard DIN rail and paired with a compatible BaseUnit to establish field wiring connections. The hot-swappable design allows replacement without powering down the station, minimizing downtime. Regular firmware updates can enhance functionality and security.
