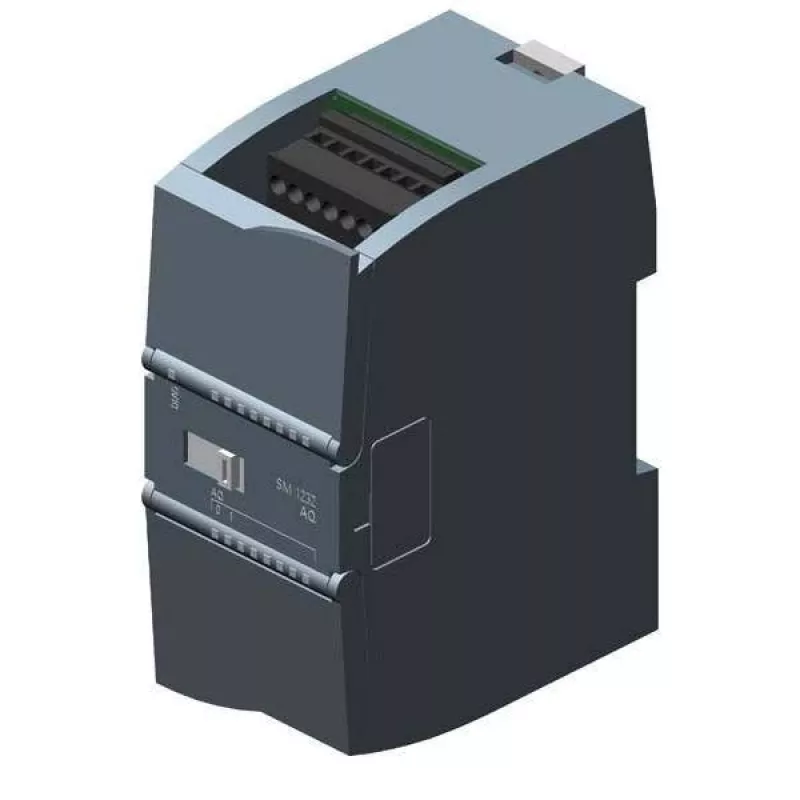

Siemens SIMATIC S7-1200 SM 1232 analogialähtömoduuli, 2 AO

Siemens SM 1232, article 6ES7232-4HB32-0XB0, expands a SIMATIC S7-1200 controller with two analog outputs. The voltage range is ±10 V with 14-bit resolution. Current output supports 0–20 mA or 4–20 mA with 13-bit resolution. The two resolution values apply to different output modes and should be distinguished when selecting the module.

The module requires a rated 24 V DC supply, with typical input current of 45 mA. Its 5 V backplane-bus current is 80 mA. The minimum load resistance for voltage output is 1000 Ω and the maximum resistance for current output is 600 Ω. Manufacturer EAN: 6940408102057. This is an expansion module for a compatible controller.
