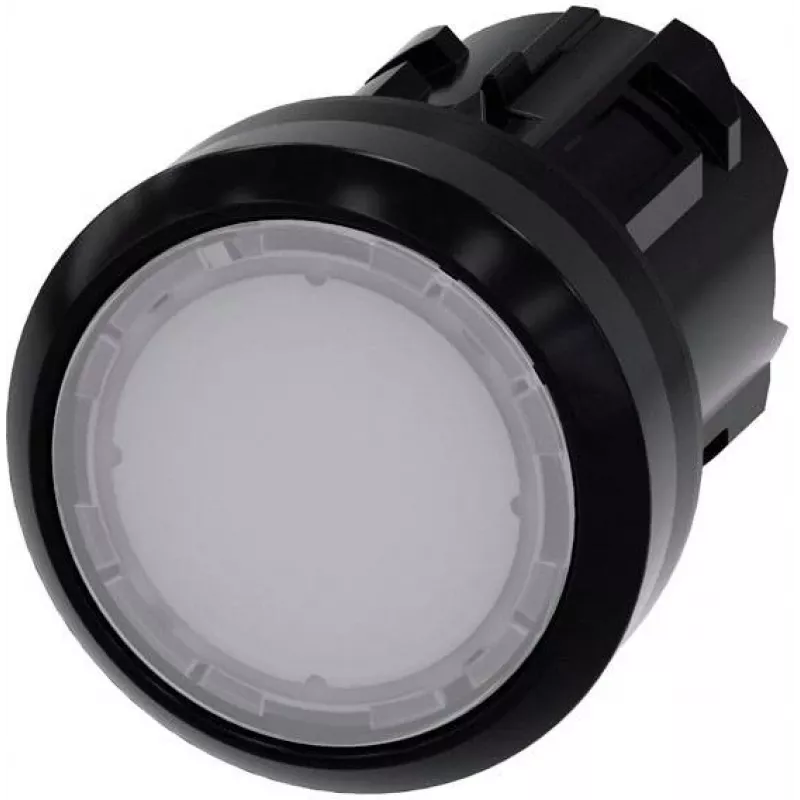

Siemens SIRIUS ACT valaistu painonappietulevy, valkoinen, 22 mm, muovi 3SU1001-0AA60-0AA0

This Siemens SIRIUS ACT illuminated pushbutton front element provides a reliable, flat actuator in white plastic for 22mm industrial control panels. Its momentary contact operation and compatibility with separate LED modules make it suitable for status indication and control tasks.

Advantages

The front element features a robust plastic construction with a wide operating temperature range of -25 to +70 °C and high mechanical durability of 10 million cycles. It is designed for demanding environments with shock and vibration resistance.

Suitable for

• Industrial control panels
• Machine status indication
• Momentary pushbutton applications

Key specifications

• Actuator type: flat pushbutton
• Actuator colour: white
• Mounting diameter: 22.3 mm
• Front bezel diameter: 29.5 mm
• Operating mode: momentary contact
• Illumination: yes (requires separate LED module)
• Material: plastic
• Operating temperature: -25 to +70 °C
• Mechanical durability: 10,000,000 cycles

Recommendations

Pair with a compatible Siemens SIRIUS ACT LED module to enable illumination. Verify panel cutout dimensions before installation.
