SIEMENS yleiskytkin pinta-asennettava DELTA Fläche tummanharmaa 1-osainen 10A 250V

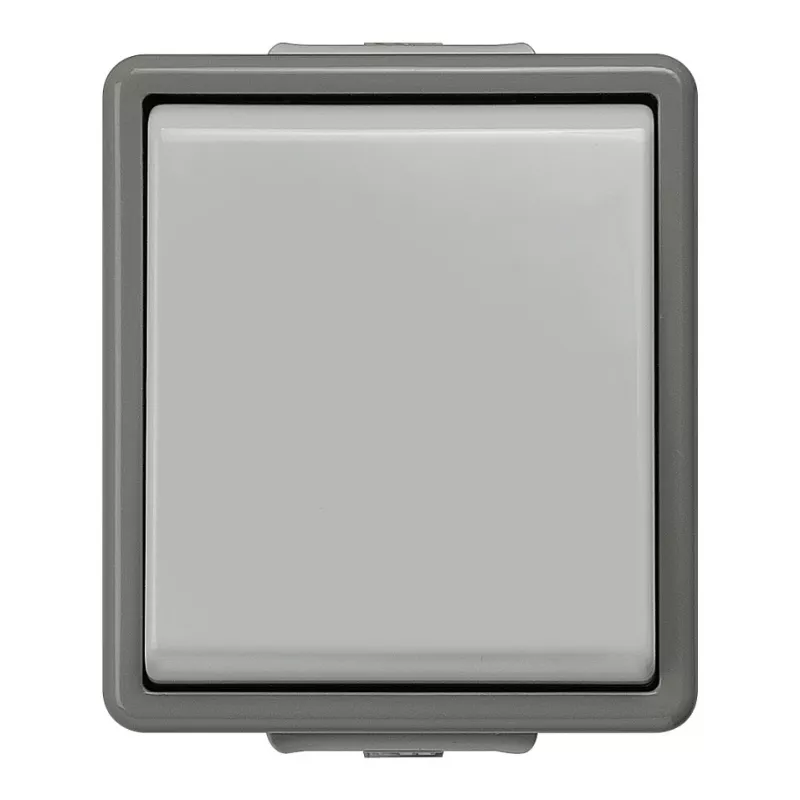

The SIEMENS 5TA4706 Universal Switch is a high-quality surface-mounted (AP) switch from the DELTA Fläche design series, designed for reliable control of lighting circuits and general electrical loads. Its universal switch function (Aus-/Wechselschalter) makes it suitable for both on/off and changeover applications. The switch features a sleek dark grey thermoplastic housing, halogen-free materials, and screw terminals for secure wiring. It supports illumination with a separate lamp and operates in a wide temperature range from -25 to +50 °C.

Advantages

This switch offers flexibility for various switching tasks, robust construction for long-lasting performance, and easy installation thanks to surface mounting. The dark grey colour blends well with modern interiors, and the halogen-free design ensures environmental safety.

Suitable for

• Lighting circuits in residential and commercial buildings
• General electrical load switching

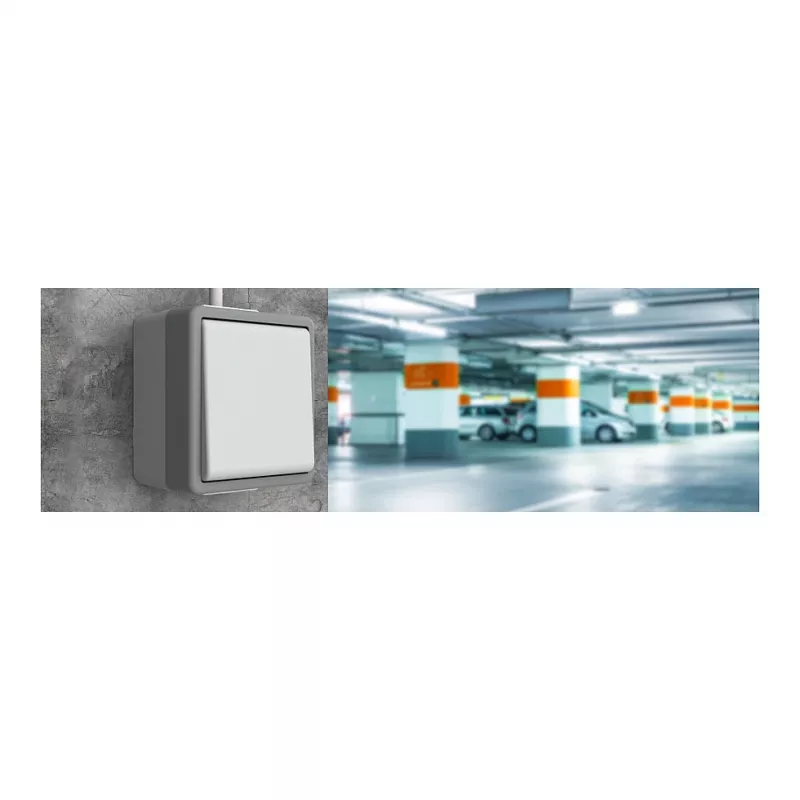

• Surface-mounted installations where flush mounting is not possible

Key specifications

• Brand: SIEMENS
• Model: 5TA4706
• MPN: 5TA4706
• EAN: 4001869002460
• Category: Switches
• Switch Function: Universal Switch (Aus-/Wechselschalter)
• Mounting Type: Surface-mounted (AP)
• Design Series: DELTA Fläche
• Product Colour: Dark Grey
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Number of Gangs: 1-gang
• Connection Type: Screw Terminals
• Terminal Capacity: Up to 2 x 2.5 mm²
• Material: Thermoplastic
• Halogen-free: Yes
• IP Protection Rating: IP20
• Illumination Capability: Yes (requires separate lamp)
• Operating Temperature Range: -25 to +50 °C
• Actuation Type: Rocker
• Number of Rockers: 1

Recommendations

For optimal performance, use with compatible SIEMENS DELTA Fläche accessories. Ensure proper wiring according to local electrical codes. The switch is not suitable for high-inductive loads without additional protection.
