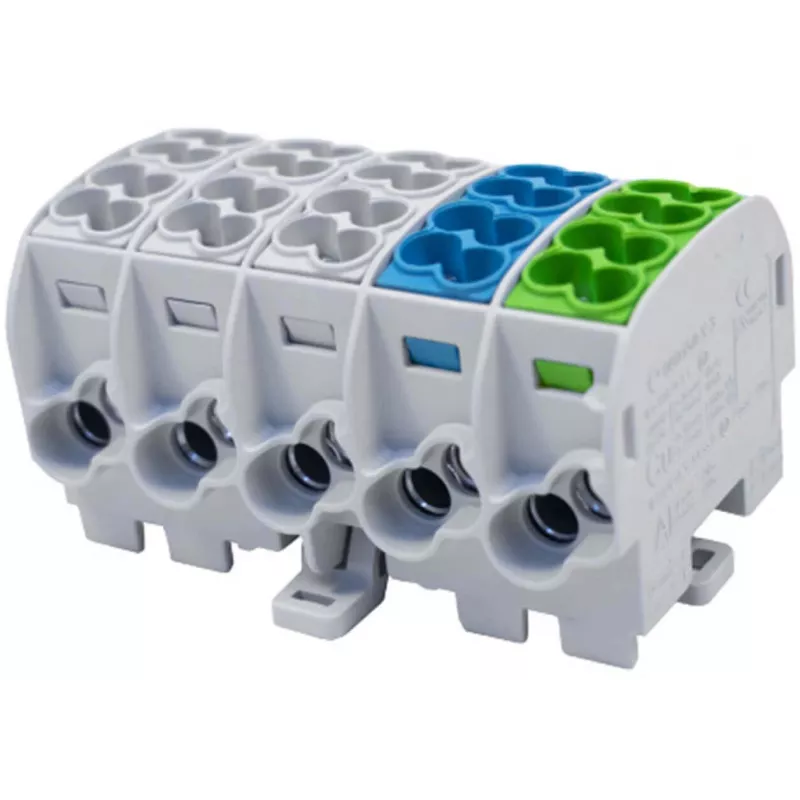

SIMET SIMBLOCK SCB 25-5X jakelublokki Al/Cu 80/150 1x10-25mm² 5x1.5-16mm² harmaa

The SIMET SIMBLOCK SCB 25-5X is a high-quality distribution block designed for reliable power distribution in electrical installations. It supports both aluminum and copper conductors, making it versatile for various applications. With a compact design and robust construction, this block ensures safe and efficient branching of main conductors into multiple outputs.

Advantages

This distribution block offers easy installation on DIN rail or screw mounting, saving time and space. Its self-extinguishing, halogen-free polyamide housing provides excellent durability and safety. The tinned copper conductor material ensures corrosion resistance and optimal conductivity.

Suitable for

• Industrial control panels
• Distribution boards
• Power distribution systems requiring branching of Al/Cu conductors

Key specifications

• Conductor Type Compatibility: Aluminum (Al) / Copper (Cu)
• Main Input Conductor Cross-Section: 1 x 10-25 mm²
• Branch Output Conductor Cross-Section: 5 x 1.5-16 mm²
• Number of Main Inputs: 1
• Number of Branch Outputs: 5
• Rated Current (Copper): 100 A
• Rated Current (Aluminum): 80 A
• Rated Voltage (AC/DC): 1000 V
• Insulation Voltage (Ui): 1000 V
• Impulse Withstand Voltage (Uimp): 8 kV
• Housing Material: Polyamide PA6 (Self-extinguishing, Halogen-free)
• Conductor Material: Tinned Copper (CuSn)
• Mounting Type: DIN Rail (TH35) / Screw Mounting
• Degree of Protection: IP20 (with cover)
• Operating Temperature: -25°C to +70°C
• Color: Grey
• Number of Poles: 1

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use in environments where halogen-free materials are required.
