SIMET SCB 25-2 haaroitusjakoliitin Al/Cu, sininen, 81505003

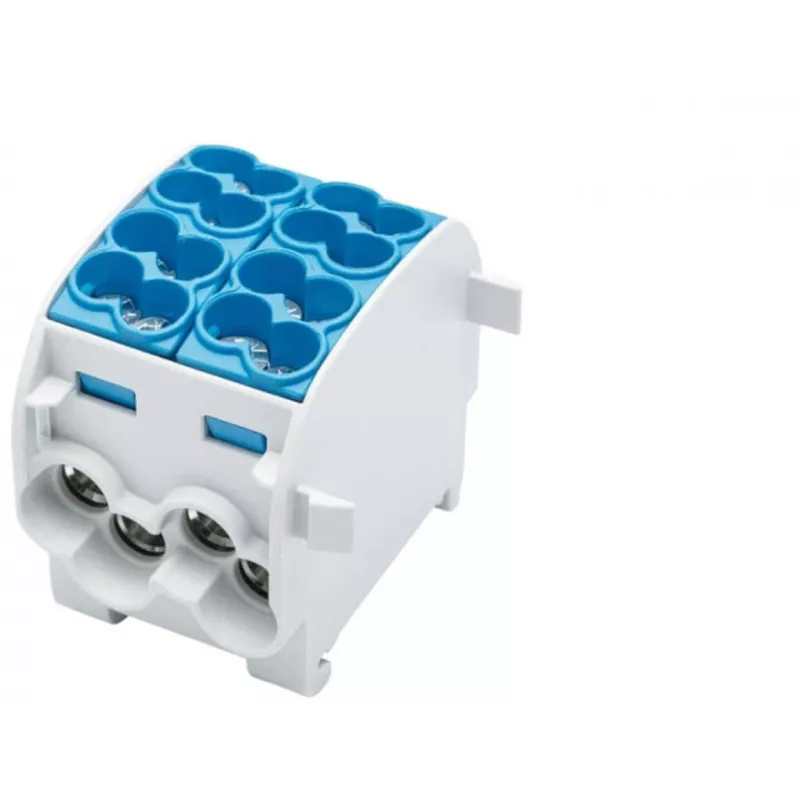

The SIMET SCB 25-2 is a blue branch distribution block for Al/Cu conductors, designed for mounting on a TS 35 rail in a horizontal orientation. It features one pole and supports a rated voltage of 1000 V AC / 1000 V DC.

Key features

• Branch distribution block for Al/Cu conductors
• Blue colour
• Mounting on TS 35 rail – horizontal
• 1 pole
• Rated voltage: 1000 V AC / 1000 V DC

Specifications

• Brand: Simet
• MPN: 81505003
• Product colour: Blue

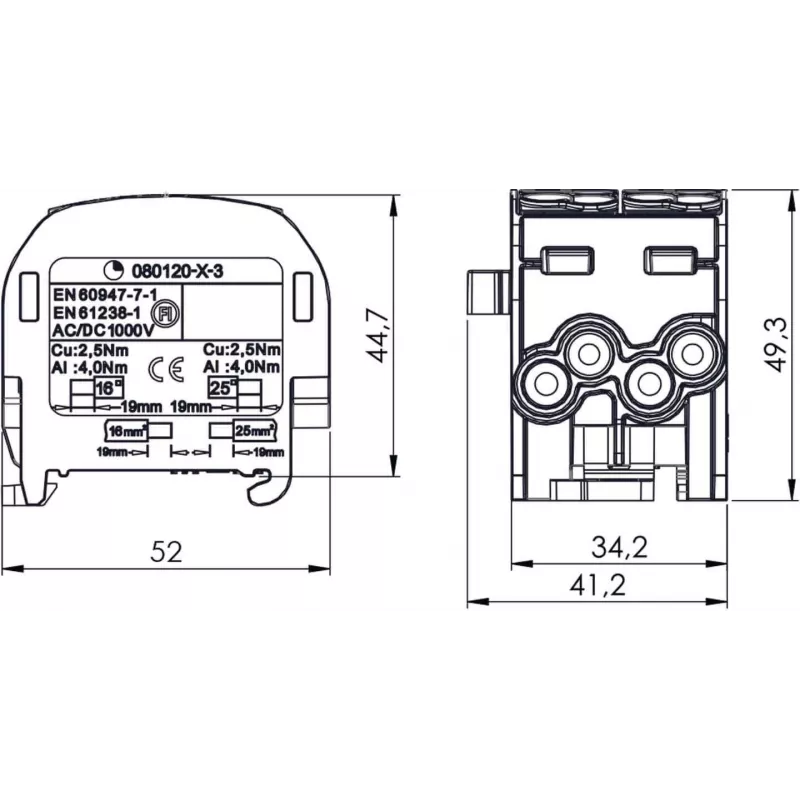

• Width: 41.2 mm
• Module width: 34.2 mm
• Height: 49.3 mm
• Length: 52 mm
• Number of poles: 1
• Connectability: Al/Cu
• Input (solid wire): 4 x (2.5...25) mm²
• Input (stranded wire with ferrule): 4 x (1.5...16) mm²
• Output (solid wire): 4 x (2.5...16) mm²
• Output (stranded wire with ferrule): 4 x (1.5...10) mm²
• Rated voltage: 1000 V AC / 1000 V DC
• Rated current Cu: 152 A (2 x 16 mm²) / 101 A (1 x 25 mm²)
• Mounting: on TS 35 rail – horizontal
