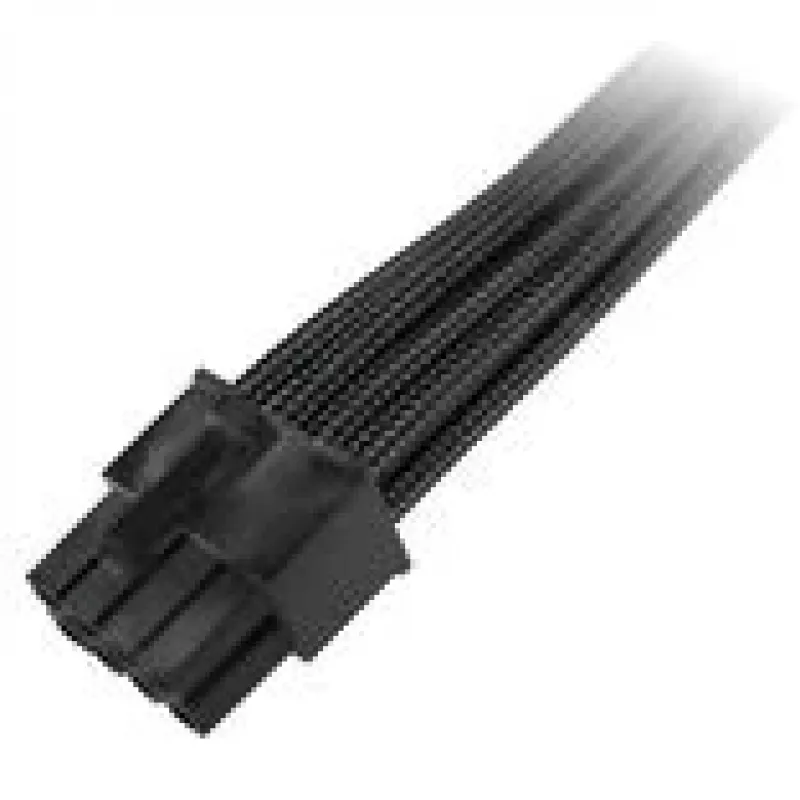

Singularity PowerBoard -liitäntäkaapeli emolevylle 8-Pin PCIe SC-PB-LC-6MB8

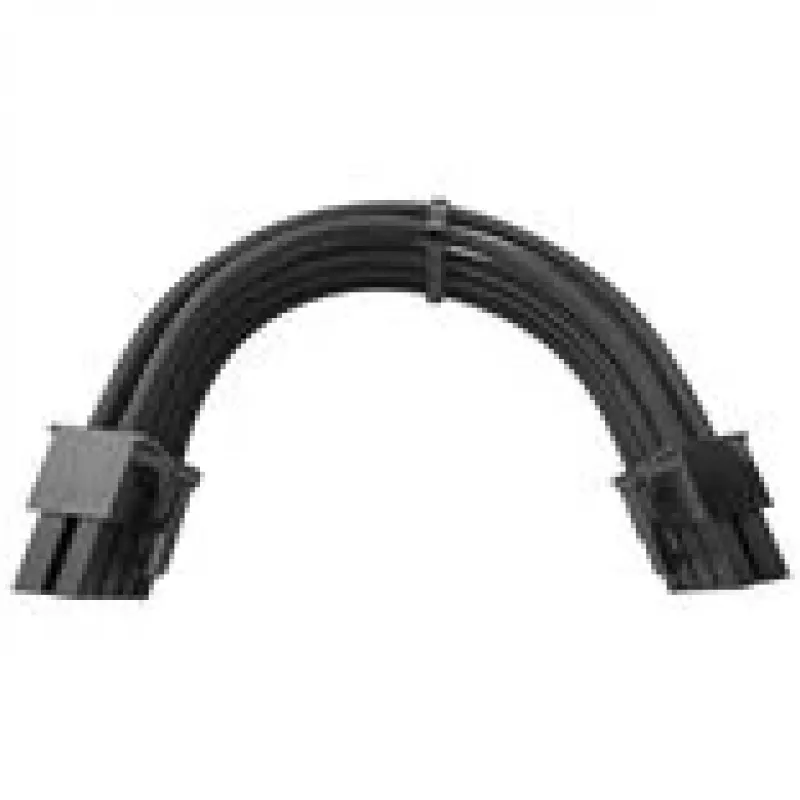

Singularity PowerBoard connection cable for motherboard 8-pin PCIe SC-PB-LC-6MB8 is a purpose-built cable that links a power distribution board (PowerBoard) to a motherboard PCIe power input. The cable provides a single 8-pin PCIe connector for supplying dedicated power to graphics cards or other PCIe devices that require an 8-pin feed. It is intended for custom PC builds and power distribution systems where a separate board-to-motherboard 8-pin PCIe cable improves cable management and ensures a direct power path.

Advantages

The cable delivers a straightforward, single-cable solution for connecting a PowerBoard to your motherboard PCIe power socket, reducing the need for adapter chains. It is engineered to maintain stable power delivery for devices that rely on an 8-pin PCIe input, and its form factor helps simplify routing inside compact or custom enclosures. The cable is compatible with standard 8-pin PCIe power layouts and supports standard installation practices used in modern PC power distribution.

Suitable for

• Custom PC builds requiring a dedicated board-to-motherboard PCIe power connection
• Power distribution setups using a PowerBoard and separate PCIe devices
• GPU installations that need an 8-pin PCIe power input
• Systems where improved cable management and direct routing are desired

Key specifications

• Connector type: 8-pin PCIe power connector (female side for device connection)
• Compatibility: Standard motherboard PCIe power input configuration
• Purpose: Board-to-motherboard PCIe power link for GPUs and PCIe devices
• Cable usage: Single dedicated power line for stable 8-pin power delivery

How to use

Connect the cable between the PowerBoard output designed for PCIe power and the motherboard PCIe power input, ensuring the connector orientation matches the keyed shape of the 8-pin PCIe socket. Verify that the power supply and PowerBoard are powered off before making the connection. After securing the connector, route the cable to avoid sharp bends and contact with moving parts. Power on the system and confirm that connected PCIe devices receive power and initialize correctly.

Recommendations

Use this cable within the electrical limits specified by your PowerBoard and power supply. Ensure firm, aligned seating of the 8-pin connector to prevent poor contacts. For improved cooling and cable management, route the cable behind mounting trays or along chassis channels and avoid excessive tension or tight loops.
