Sisäinen M.2-adapteri DeLOCK 62732

The DeLOCK 62732 internal M.2 adapter allows installation of an M.2 SSD (2230/2242/2260/2280) or an mSATA SSD (half size or full size). It supports connection to the host system via a SATA interface and provides M.2 and mSATA output interfaces. The compact adapter (85 × 100 × 15 mm) is available in black and green and is designed for internal installation to integrate additional SSD storage into desktop or embedded systems.

Advantages

This adapter accepts multiple M.2 form factors and both half‑size and full‑size mSATA modules, offering flexible drive compatibility. Its internal SATA host interface simplifies integration into existing systems without requiring external power adapters. The compact dimensions and dual‑interface design make it suitable for space‑constrained installations while keeping cable routing minimal.

Suitable for

• Adding an M.2 SSD (2230/2242/2260/2280) to a desktop or embedded system
• Installing an mSATA SSD in half or full size to systems with a SATA host
• Upgrading or expanding internal storage where space is limited

Key specifications

• Host interface: SATA
• Output interfaces: M.2, mSATA
• Supported M.2 sizes: 2230, 2242, 2260, 2280
• Supported mSATA sizes: half size, full size
• Internal installation: yes
• Dimensions: 85 mm × 100 mm × 15 mm
• Product colours: black, green
• Manufacturer: DELOCK, MPN: 62732

How to use

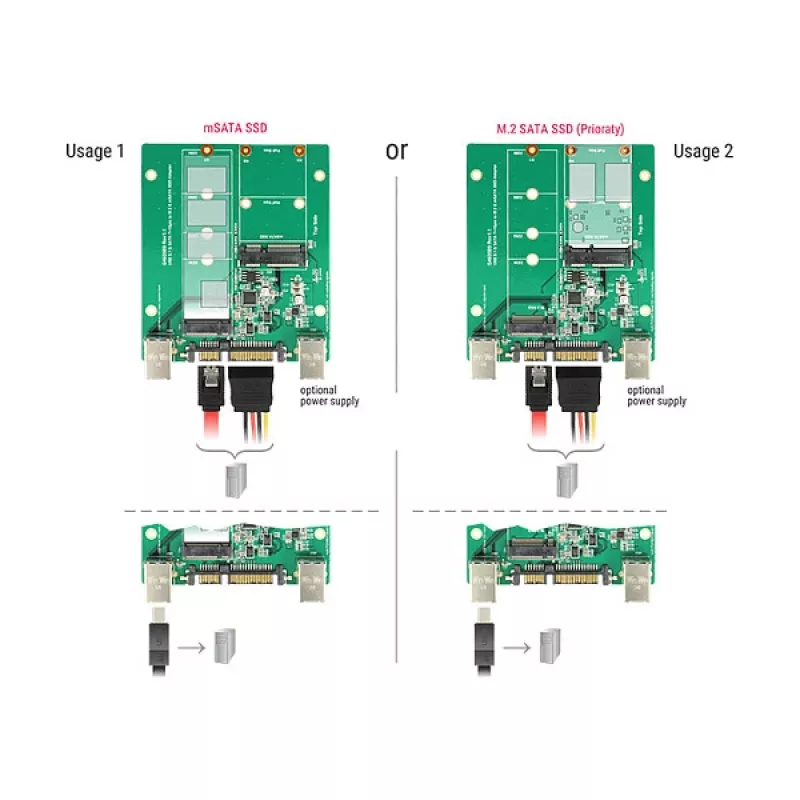

Install the adapter inside the system chassis and connect it to the motherboard via the SATA host connector. Insert the compatible M.2 SSD into the M.2 slot (2230/2242/2260/2280) or install the mSATA SSD in the mSATA slot (half/full size). If both slots are populated simultaneously, only the M.2 SSD is supported for operation. Secure the drive according to the adapter’s mounting points and power on the system; the drive should be recognised by the BIOS/OS as a SATA device.

Recommendations

Use the adapter in systems with an available internal SATA connection and ensure proper airflow and cooling for SSDs. Verify BIOS/UEFI and operating system support for the chosen drive type before installation. Do not insert both mSATA and M.2 drives when you require both to be operational; the adapter only supports the M.2 drive if both are present.
