Sisäinen M.2-sovitin DeLOCK 62544

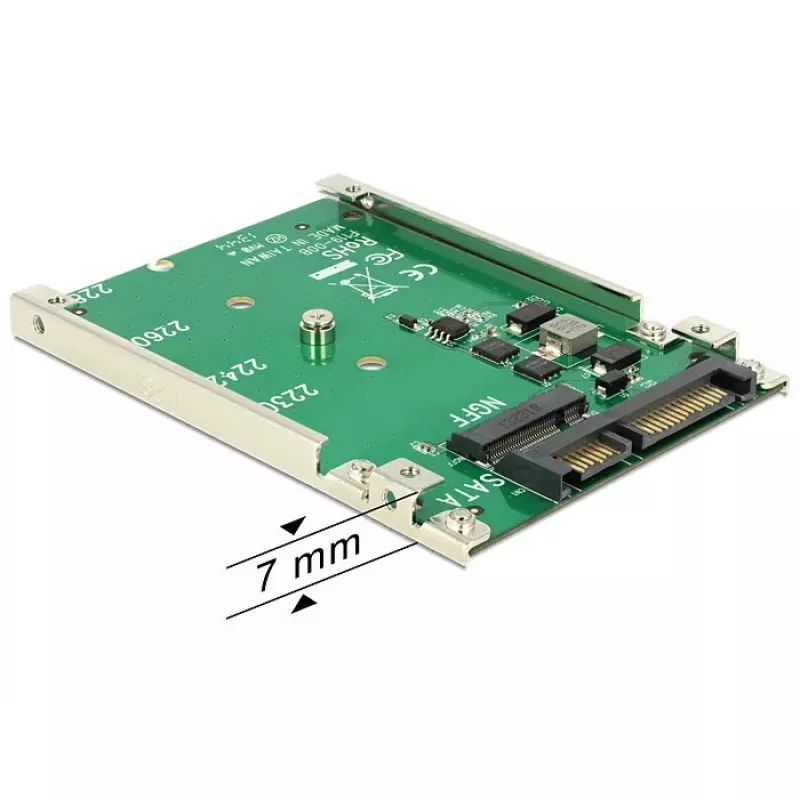

The DeLOCK 62544 is an internal M.2 adapter that allows installing an M.2 NGFF SSD (2280, 2260, 2242 or 2230) and using it as a 2.5″ SATA drive. It connects to the system via a SATA 22‑pin host interface and has a compact profile (100 mm x 70 mm x 7 mm). The adapter is supplied in a box and comes in green finish.

Advantages

This adapter provides compatibility between M.2 NVMe/SATA form‑factor SSDs in NGFF sizes and standard SATA connections, enabling reuse of M.2 modules as 2.5″ drives. Its slim dimensions make it suitable for confined internal spaces, and the direct SATA 22‑pin connection simplifies installation without additional cables.

Suitable for

• Converting M.2 NGFF SSDs (2230–2280) to a SATA 2.5″ form factor
• Upgrading or repurposing M.2 SSDs in desktops or small form factor PCs
• Internal system installations where a SATA 22‑pin interface is available

Key specifications

• Brand: DELOCK
• Model: 62544
• Host interface: SATA (22‑pin)
• Output interface: M.2 (NGFF) supporting 2280, 2260, 2242, 2230
• Dimensions: 100 mm x 70 mm x 7 mm
• Internal usage: Yes
• Product colour: Green

How to use

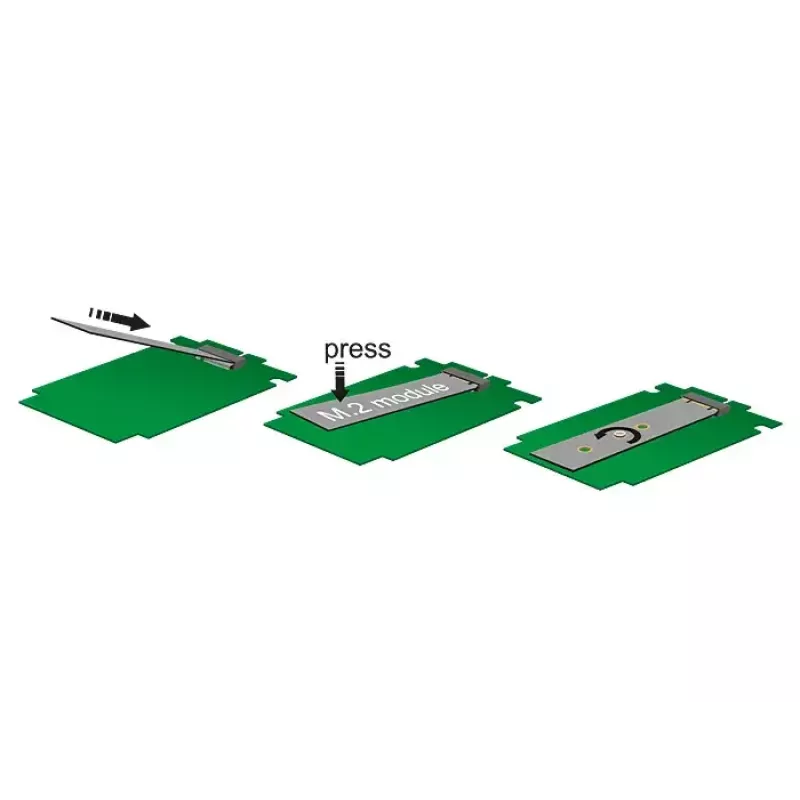

Install an appropriate M.2 NGFF SSD into the adapter’s M.2 slot and secure it according to the module length (2230/2242/2260/2280). Insert the adapter into an internal SATA connector using the SATA 22‑pin interface and mount it in your drive bay or internal location. Ensure the host system recognizes the drive in BIOS/OS and format or partition the SSD as required.

Recommendations

Use compatible M.2 NGFF SSDs of the listed lengths and verify the SATA host interface is available before installation. Handle the adapter and SSD with antistatic precautions and avoid forcing connectors during installation.
