Sisäinen M.2-sovitin DeLOCK 62865

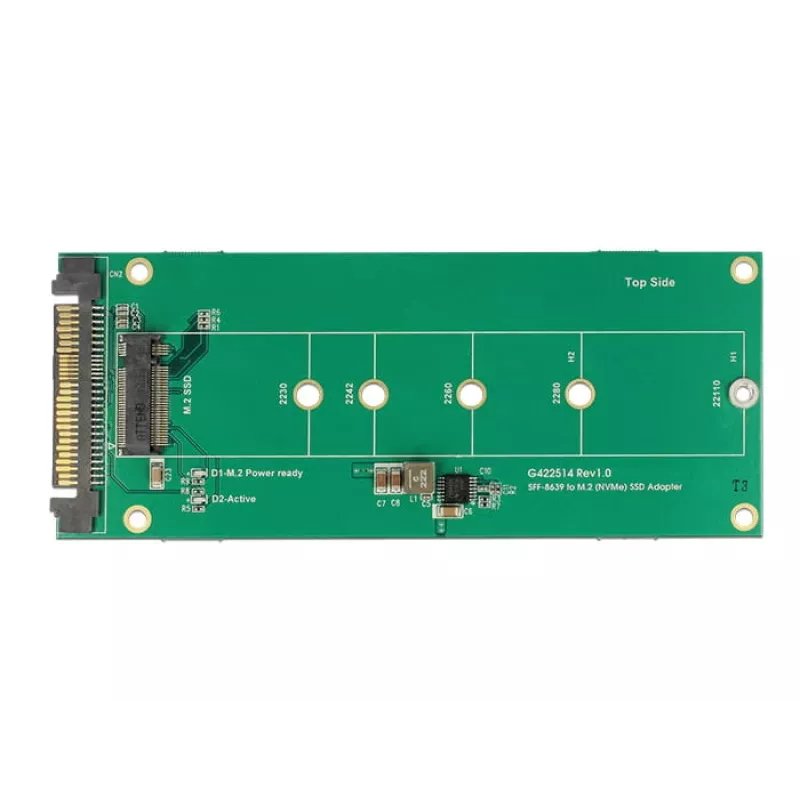

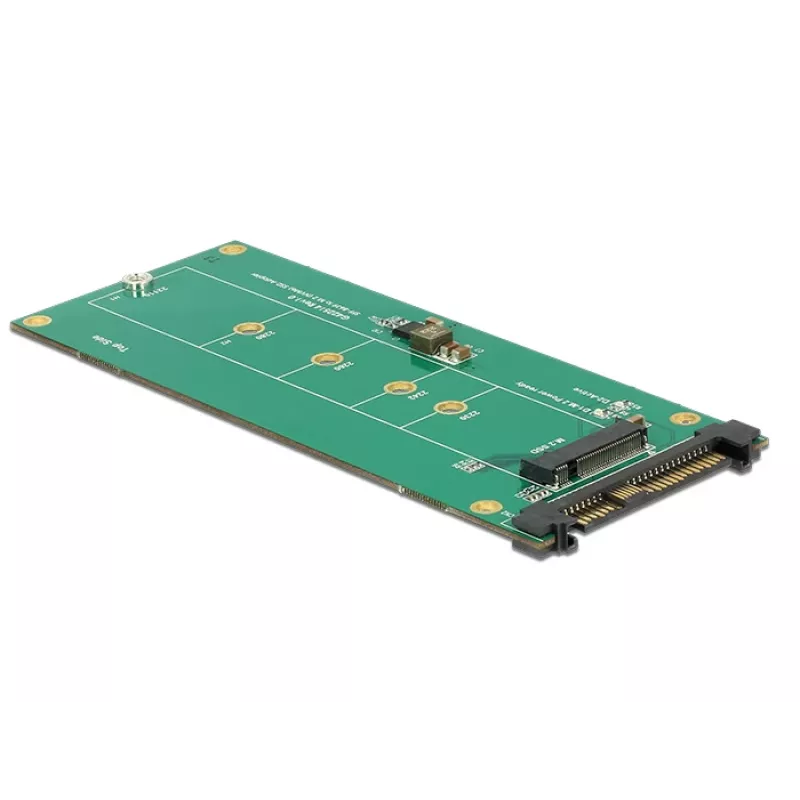

This converter by DeLOCK enables internal installation of an M.2 PCIe SSD in sizes 22110, 2280, 2260, 2242 and 2230 via a U.2 host interface. It provides an M.2 output interface and supports data transfer rates up to 6 Gbit/s. The adapter has a compact form factor (52 mm × 130 mm × 6 mm) and is supplied in a retail box.

Advantages

The Internal M.2 Adapter DeLOCK 62865 allows easy integration of M.2 PCIe SSDs into systems with a U.2 interface, keeping a small footprint for compatibility with constrained chassis. It supports common M.2 lengths and offers a maximum throughput of 6 Gbit/s for reliable high-speed storage access. The adapter is finished in green and comes packaged for straightforward installation.

Suitable for

• Installing M.2 PCIe SSDs (22110, 2280, 2260, 2242, 2230) into systems with a U.2 connector
• Upgrading storage in servers, workstations or compact PCs that provide a U.2 interface
• Testing or migrating M.2 SSDs using a U.2 host connection

Key specifications

• Brand: DELOCK
• Model: 62865
• Host interface: U.2
• Device interface: M.2 (PCIe SSD)
• Supported M.2 sizes: 22110, 2280, 2260, 2242, 2230
• Max. data transfer rate: 6 Gbit/s
• Dimensions: 52 mm (W) × 130 mm (D) × 6 mm (H)
• Colour: Green
• Packaging: Boxed
• EAN: 4043619628650

How to use

Install an M.2 PCIe SSD in one of the supported sizes into the adapter’s M.2 slot and secure it according to the M.2 mounting positions. Insert the adapter into the system’s internal U.2 socket and ensure the connection is seated firmly. After installation, power on the system and verify that the operating system recognises the SSD; no additional software is normally required.

Recommendations

Use compatible M.2 PCIe SSDs and confirm the host system supports U.2 connections. Handle the adapter and SSD using appropriate ESD precautions and follow the system manufacturer’s instructions for internal hardware installation.
