Sisäinen M.2-sovitin DeLOCK 63917

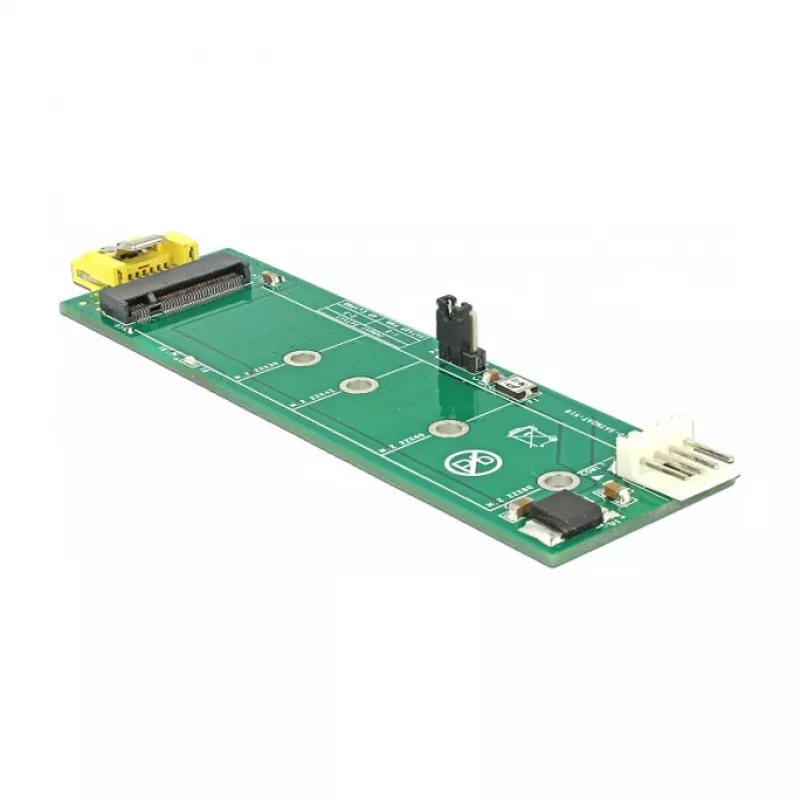

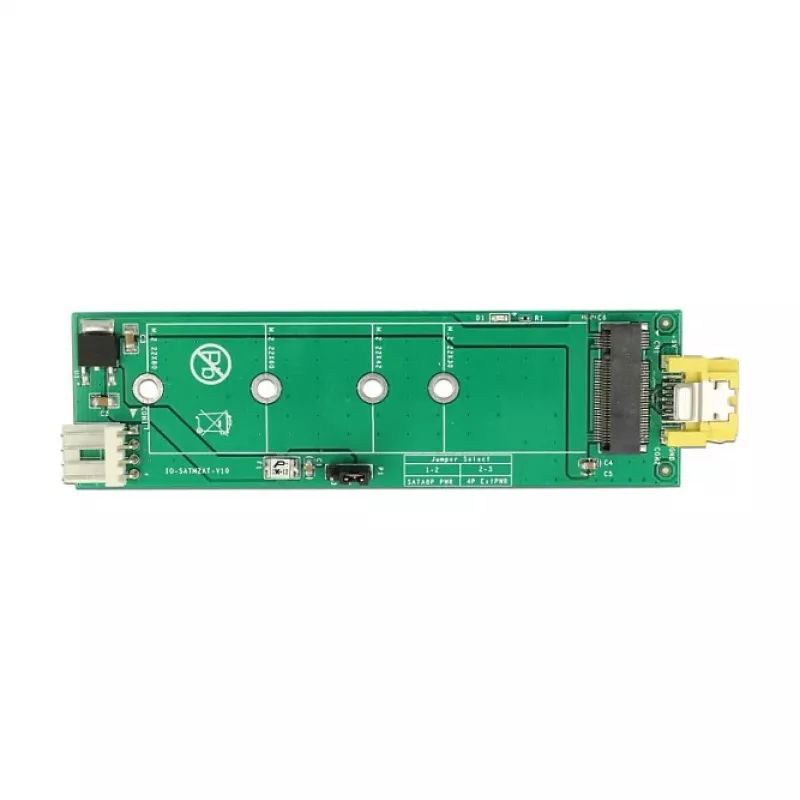

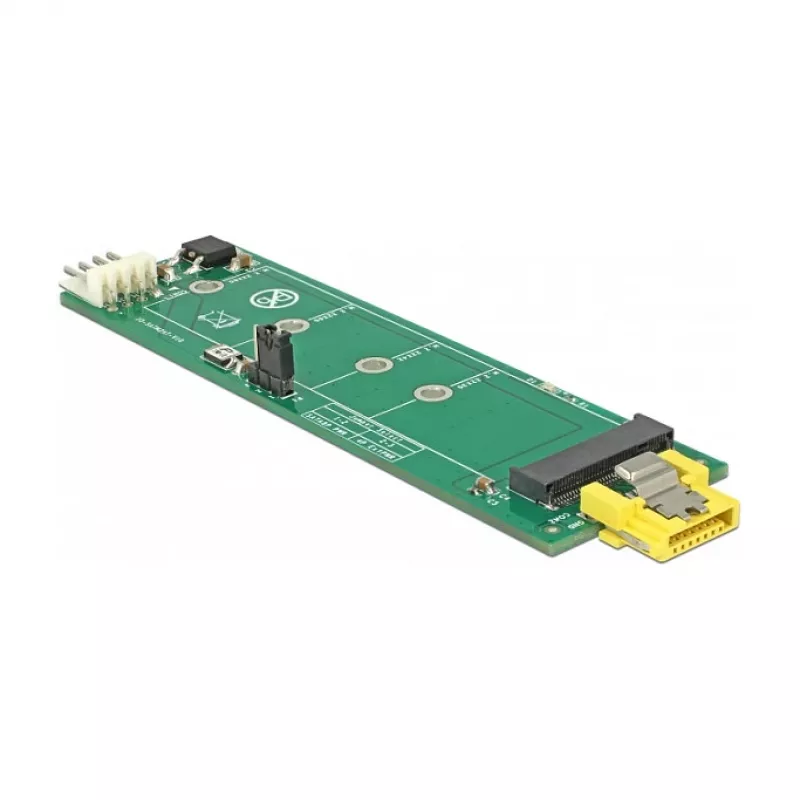

The Internal M.2 Adapter DeLOCK 63917 enables installation of M.2 SATA SSDs in sizes 2280, 2260, 2242 and 2230 into systems using a standard SATA interface. The adapter supports SATA III data transfer rates up to 6 Gbit/s, includes LED indicators for activity and power, and fits in compact spaces with dimensions of 30 mm (width) × 114 mm (depth) × 11 mm (height). It can be powered either via a SATA pin 8 power plug without an additional PSU or via a standard SATA power connector when connected to a SATA port.

Advantages

The adapter provides compatibility with multiple M.2 form factors (2280/2260/2242/2230) and supports full SATA III speeds up to 6 Gbit/s. Its compact design allows installation in constrained spaces, while integrated LEDs give visual status for power and activity. Power options include a SATA pin 8 power plug that eliminates the need for an extra power supply, or a standard 4‑pin SATA power connection when used with a SATA port.

Suitable for

• Upgrading desktop or small form factor PCs with an M.2 SATA SSD
• Installing M.2 SATA drives in systems that lack native M.2 slots
• Testing or cloning M.2 SATA SSDs via a SATA interface

Key specifications

• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Interface: SATA III (up to 6 Gbit/s)

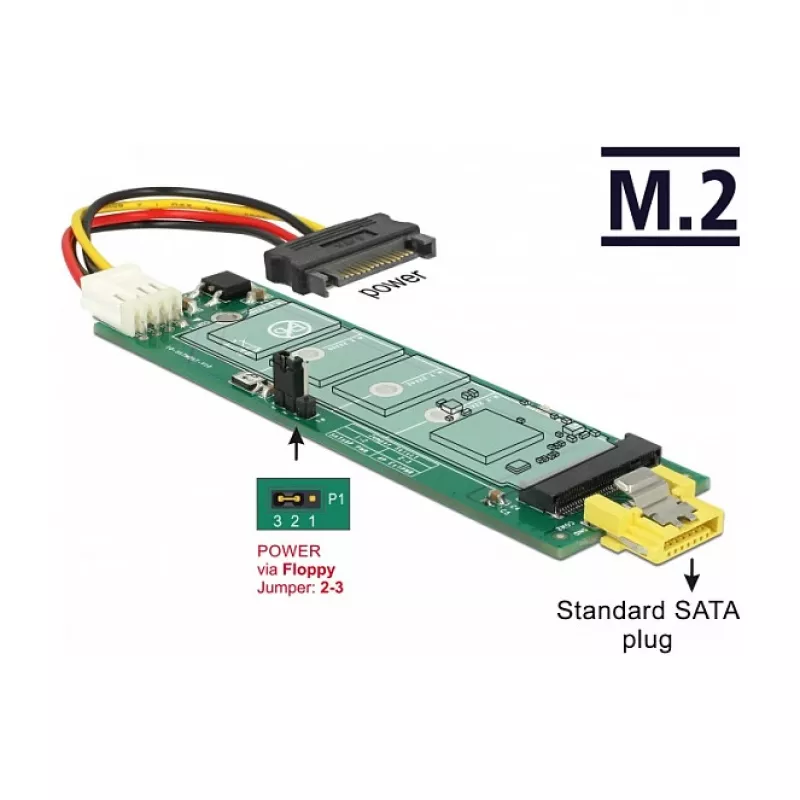

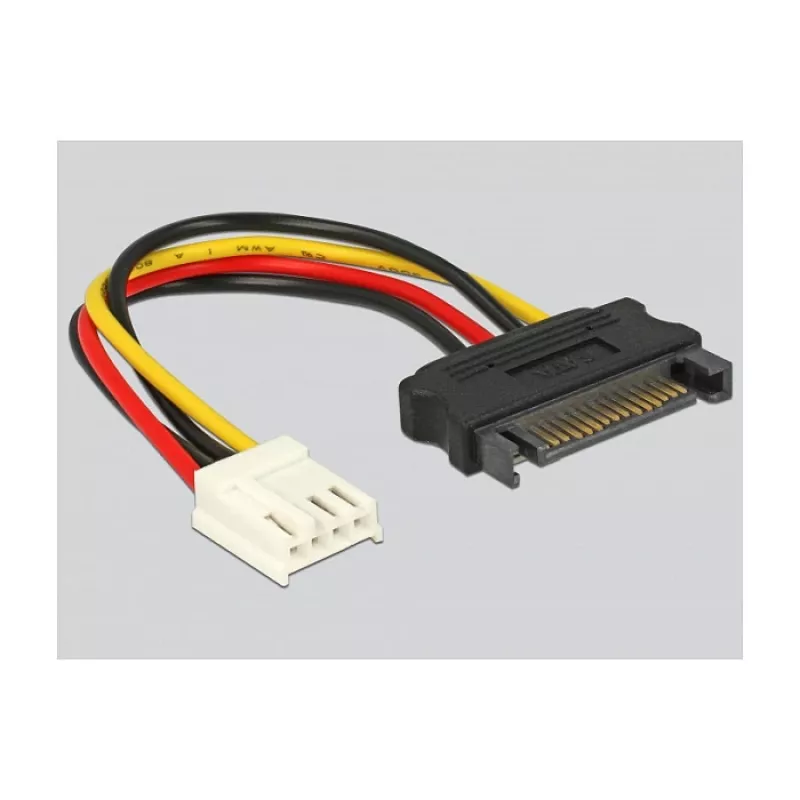

• Power: SATA pin 8 power plug or standard 4‑pin SATA power connector
• LED indicators: power and activity
• Dimensions: 30 mm × 114 mm × 11 mm
• Manufacturer: DELOCK, MPN: 63917, EAN: 4043619639175

How to use

Insert the M.2 SATA SSD into the corresponding M.2 slot on the adapter, secure it with the appropriate mounting screw or spacer for the chosen card length (2280/2260/2242/2230). If connecting directly to a SATA power rail that provides a pin 8 power plug, attach the pin 8 power plug to the adapter—no additional power supply is required. If connecting the adapter to a standard SATA data port, connect a 4‑pin SATA power cable to supply power. Finally, connect the SATA data cable from the adapter to the motherboard or SATA controller, power on the system and verify LED indicators for power and activity. Install drivers or initialize the drive in the operating system if required; the adapter is compatible with common Windows versions including Windows 7, 8 and 8.1.

Recommendations

Handle the M.2 SSD and adapter on an anti‑static surface, use the correct spacer/screw for the M.2 module length to prevent mechanical stress, and ensure proper SATA power connection matching your system configuration before powering on.
