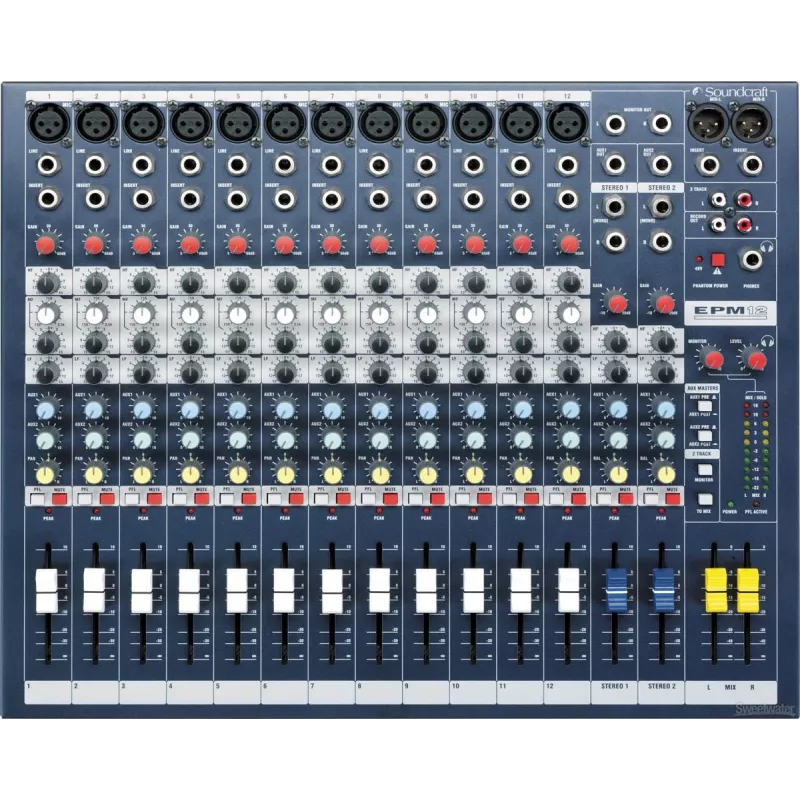

Soundcraft EPM12 analoginen mikseri

The Soundcraft EPM12 is a professional analog mixing console designed for live sound and installation applications. With 12 input channels, including 8 mono mic/line channels with GB30 preamps and 2 stereo line channels, it delivers the renowned Soundcraft audio quality and reliability. The console features a 3-band EQ with swept mid on mono channels, 2 auxiliary sends, and a globally switchable +48V phantom power supply. Its robust construction and intuitive layout make it ideal for small to medium-sized venues, houses of worship, and rental companies.

Advantages

The EPM12 offers exceptional sound quality thanks to the GB30 microphone preamps, originally designed for the Soundcraft Ghost console. The swept mid-frequency EQ on mono channels provides precise tonal shaping, while the 10-segment LED metering ensures accurate level monitoring. The internal power supply eliminates the need for an external power brick, simplifying setup and reducing clutter. Additionally, the console can be rack-mounted with an optional kit, making it suitable for fixed installations.

Suitable for

• Live sound reinforcement in small to medium venues
• House of worship audio systems
• Rental and event production
• Fixed installations requiring a compact analog mixer

Key specifications

• Number of Channels: 12 (8 mono mic/line, 2 stereo line)
• Microphone Preamps: 8 x GB30
• EQ: 3-band with swept mid (mono), 3-band fixed (stereo)
• Auxiliary Sends: 2 (1 pre-fade, 1 post-fade switchable)
• Main Outputs: 2 x XLR (Left/Right)
• Phantom Power: +48V globally switchable
• Frequency Response: 20Hz - 20kHz (+/-1.5dB)
• THD+N: <0.007% @ +14dBu, 1kHz
• Input Connectors: XLR, 1/4" TRS, RCA
• Output Connectors: XLR, 1/4" TRS, RCA
• Channel Inserts: On mono channels and main mix
• Metering: 10-segment LED
• PFL/Solo: Yes, on each channel
• Internal Power Supply: Yes
• Rack Mountable: Yes (with optional kit)
• Gain Range (Mic Input): 55dB
• Noise (Mic EIN): -128dBu (150 Ohm source)

Recommendations

The Soundcraft EPM12 is a reliable workhorse that delivers professional audio quality in a compact and affordable package. Its intuitive layout and robust build make it a top choice for sound engineers and installers alike.
