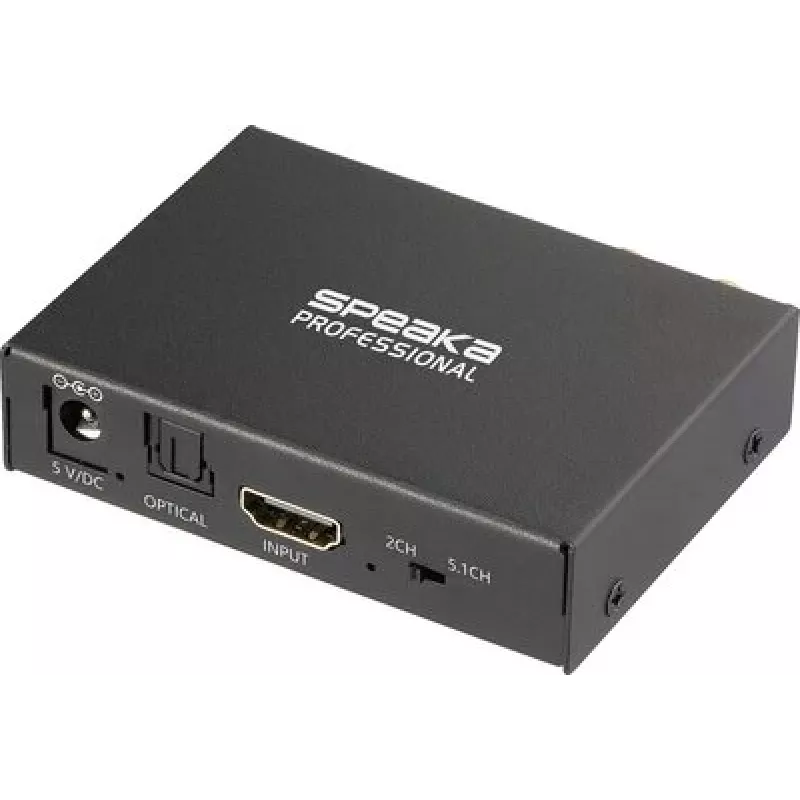

SpeaKa Professional SP-HDS-300 HDMI-jakaja 1x2 audioerottelulla 4K

Unlike basic HDMI splitters that only duplicate video, the SP-HDS-300 extracts audio to optical S/PDIF or 3.5mm stereo, making it ideal for connecting to soundbars, AV receivers, or headphones while preserving 4K video on two displays. This metal-housed splitter supports HDMI 1.4b and HDCP 1.4, ensuring compatibility with most sources and displays.

Highlights

• 1x2 HDMI distribution with independent audio extraction
• Supports 4K (3840 x 2160) @ 30 Hz, 3D, and Deep Color up to 12-bit
• Audio outputs: optical S/PDIF (Toslink) and 3.5mm stereo jack
• Supports LPCM 2.0/5.1/7.1, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, DTS
• EDID management: Auto or Copy mode for optimal compatibility
• Metal housing for durability and heat dissipation
• Includes external DC 5V/1A power adapter

In daily use

The SP-HDS-300 solves a common problem: connecting a source with only HDMI output to a display and an audio system without HDMI input. For example, you can send 4K video to a projector and extract 5.1 surround sound to an AV receiver via optical cable. The 3.5mm jack is handy for connecting to stereo systems or headphones. With EDID copy mode, the splitter reads the EDID from the connected display to ensure the source outputs the correct resolution and audio format. The auto mode provides a default EDID for plug-and-play setups. The metal housing and low power consumption (max 2W) make it suitable for continuous operation in home theaters, conference rooms, or digital signage.

Full specifications

• HDMI Standard: HDMI 1.4b
• HDCP Standard: HDCP 1.4
• Maximum Resolution: 4K (3840 x 2160) @ 30 Hz
• Video Bandwidth: 10.2 Gbps
• Color Depth: 8/10/12-bit Deep Color
• HDMI Inputs: 1
• HDMI Outputs: 2
• Audio Output Ports: 1x Optical S/PDIF (Toslink), 1x 3.5mm Stereo Jack
• Supported Audio Formats: LPCM 2.0/5.1/7.1, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, DTS
• EDID Management: Auto / Copy (Switchable)
• 3D Support: Yes
• Power Supply: DC 5V/1A (external power adapter included)
• Power Consumption: Max. 2W
• Housing Material: Metal
• Max. HDMI Cable Length (Input): 15m (AWG26)
• Max. HDMI Cable Length (Output): 15m (AWG26)

Final note

The SP-HDS-300 is a versatile solution for splitting HDMI signals while extracting high-quality audio, all in a robust metal enclosure.
