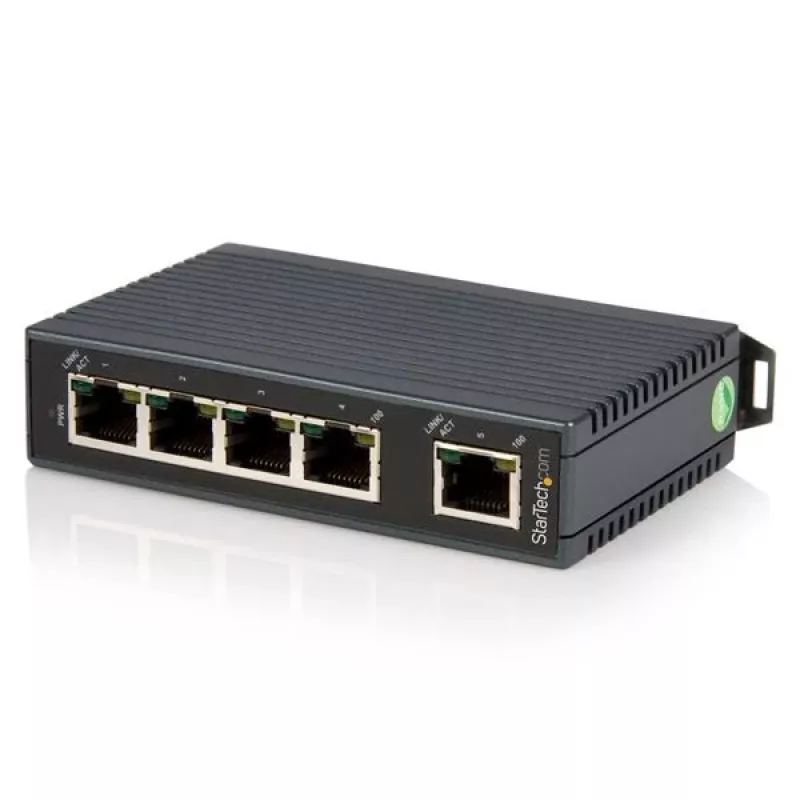

StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys

StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
StarTech.com 5-porttinen teollinen Ethernet-kytkin – DIN-kiskokiinnitys
149,12 €
Expand your network connectivity with this rugged unmanaged 10/100Mbps switchThis compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of opera... Lue lisää
Varasto Loppu varastostaEi varastossa Tuotekoodi 1220959 Merkki StarTech Malli IES5102 Takuu 2 vuotta
KategoriaVerkkokytkimet

Toimitus ja palautukset

Expand your network connectivity with this rugged unmanaged 10/100Mbps switch

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

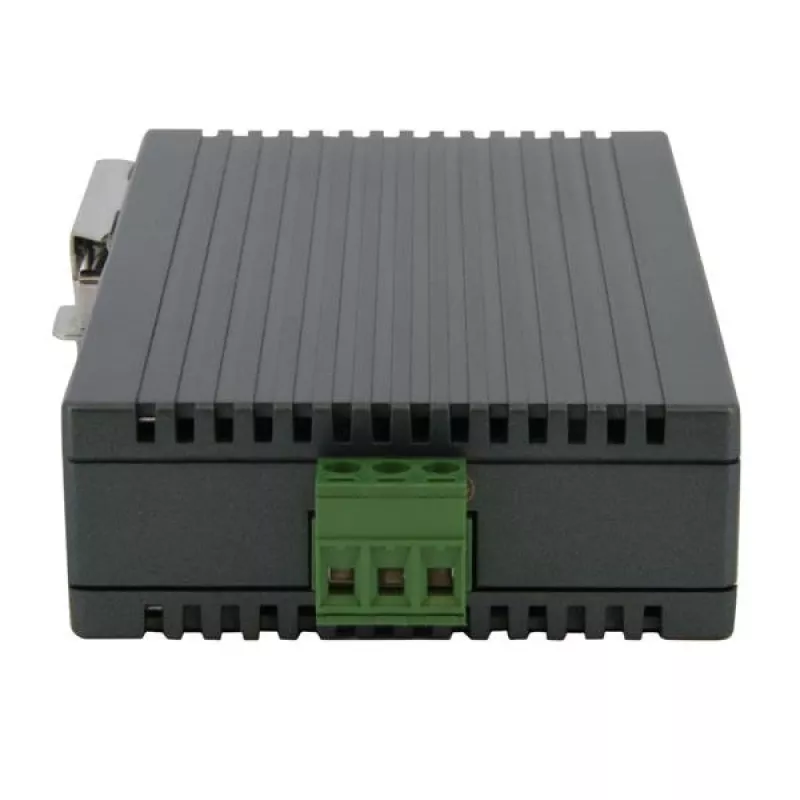

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

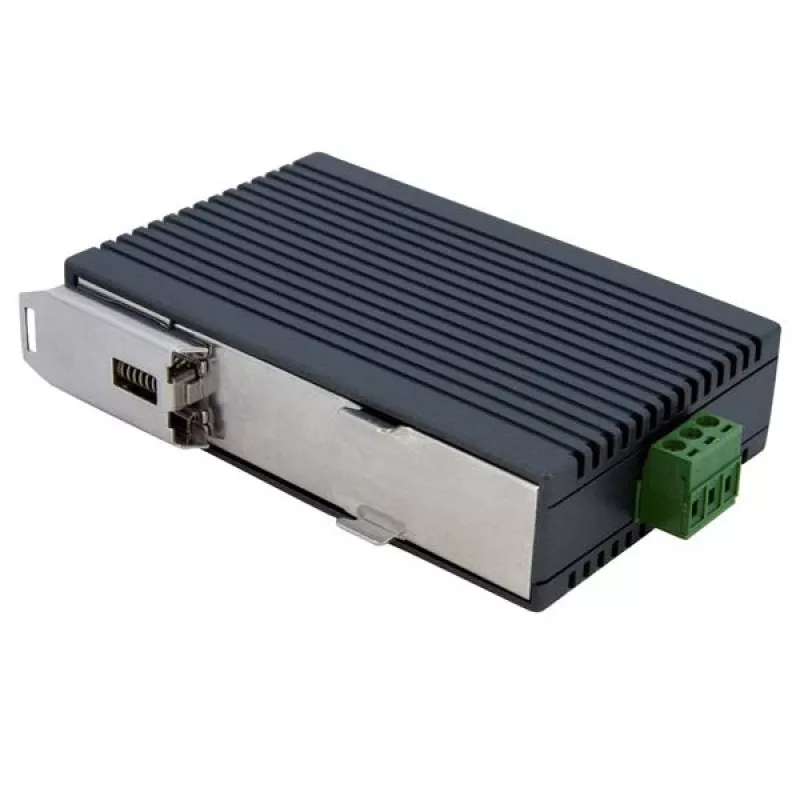

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

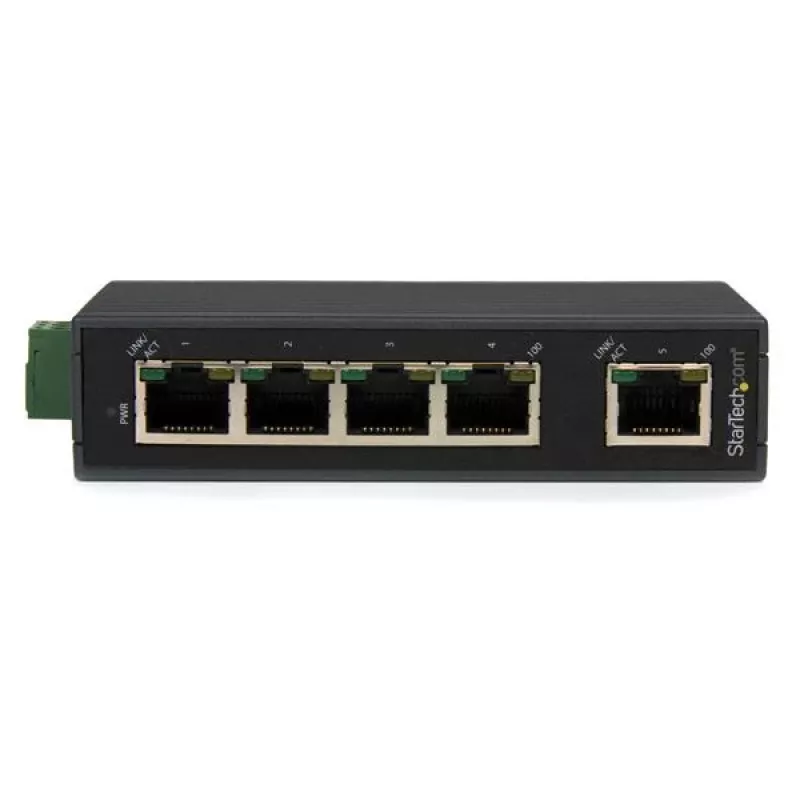

- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Rack mounting

Tärkeimmät ominaisuudet
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Rack mounting
Tekniset tiedot
10G-tuki
No
Auto MDI/MDI-X
Yes
Automaattinen neuvottelu
Yes
Full duplex
Yes
Harmonized System (HS) -koodi
85176990
Jumbo-kehysten tuki
No
Kaapelin enimmäispituus
100 m
Käytön suhteellinen ilmankosteus (H-H)
5 - 95%
Käyttölämpötila (T-T)
-10 - 60 °C
Käyttöopas
Yes
Keskimääräinen vikaantumisväli (MTBF)
1179133 h
Korkeus
110 mm
Kotelointiluokka (IP)
IP30
Kytkimen tyyppi
Unmanaged
LED-merkkivalot
Activity, Link, Power
Leveys
25 mm
Paino
148 g
Pakkauksen korkeus
79 mm
Pakkauksen leveys
178 mm
Pakkauksen paino
312 g
Pakkauksen syvyys
198 mm
Peruskytkennän RJ-45 Ethernet-porttien määrä
5
Peruskytkennän RJ-45 Ethernet-porttien tyyppi
Fast Ethernet (10/100)
Power over Ethernet (PoE)
No
Puskurin koko
56 KB
Quality of Service (QoS) -tuki
Yes
Räkkiasennus
Yes
Riviliitin mukana
Yes
Rungon materiaali
Plastic
Säilytyslämpötila (T-T)
-25 - 85 °C
Sertifiointi
CE, FCC
Store-and-forward
Yes
Suurin tiedonsiirtonopeus
200 Mbit/s
Syvyys
70 mm
Tulojännite
12 - 48 V
Tuotteen väri
Black
Verkkostandardit
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Viranomaishyväksynnät
EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
Virrankulutus (maks.)
2.12 W
