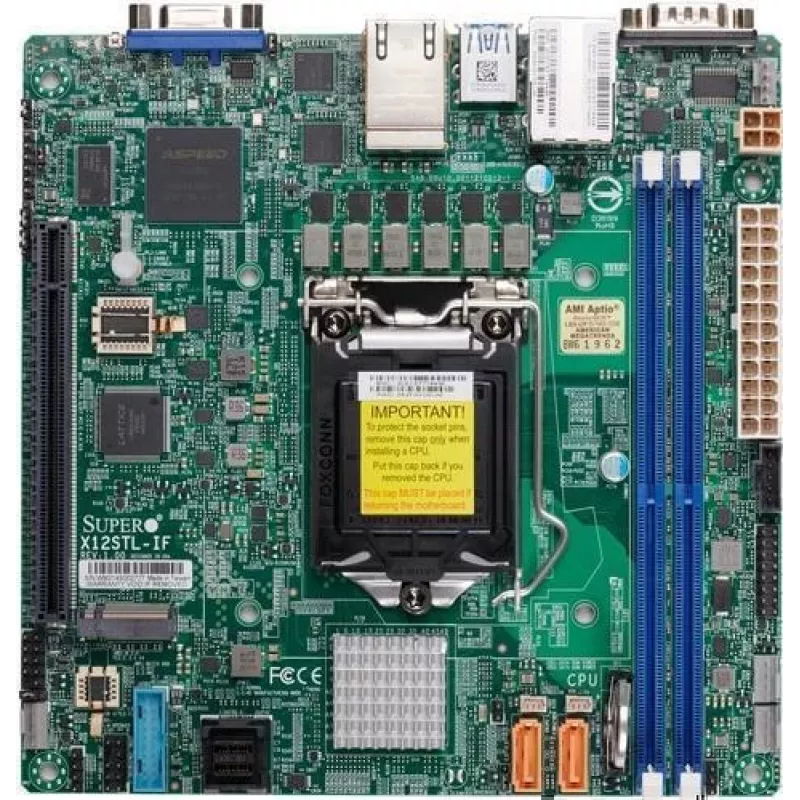

Supermicro MBD-X12STL-IF -emolevy - Mini-ITX - LGA1200 - Intel C252 - DDR4 - Dual Gigabit LAN - IPMI

The Supermicro MBD-X12STL-IF is a high-performance Mini-ITX motherboard designed for Intel Xeon E-2300 and 10th/11th Gen Core processors. Featuring the Intel C252 chipset, it supports up to 128GB DDR4 ECC/Non-ECC memory, dual Gigabit Ethernet, and IPMI 2.0 for remote management. Ideal for compact servers, workstations, and embedded applications.

Advantages

Compact Mini-ITX form factor saves space without sacrificing performance. Supports the latest Intel LGA1200 processors, PCIe 4.0, and M.2 NVMe storage. Onboard ASPEED AST2600 BMC provides full IPMI 2.0 with KVM over IP for remote monitoring and control.

Suitable for

• Small form factor servers
• Embedded systems
• Network appliances
• Workstations

Key specifications

• CPU Socket: LGA1200
• Chipset: Intel C252
• Form Factor: Mini-ITX
• Supported CPU Series: Intel Xeon E-2300, 11th/10th Gen Core i9/i7/i5/i3
• Memory: 4 x DDR4 DIMM slots, up to 128GB, ECC/Non-ECC UDIMM, up to 3200MHz
• Expansion: 1 x PCI-E 4.0 x16
• Storage: 4 x SATA3 (6Gbps), 1 x M.2 (PCIe 4.0 x4, 2280/22110)
• LAN: Dual Gigabit Ethernet (Intel i210AT)
• USB: 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A (rear)
• Video: 1 x VGA (ASPEED AST2600 BMC)
• Management: IPMI 2.0 with KVM over IP
• Power: 24-pin ATX, 8-pin EPS

Recommendations

For optimal performance, pair with Intel Xeon E-2300 series processors and ECC memory. Suitable for 24/7 operation in demanding environments.
