Suunta-antenni QuWireless QuMax

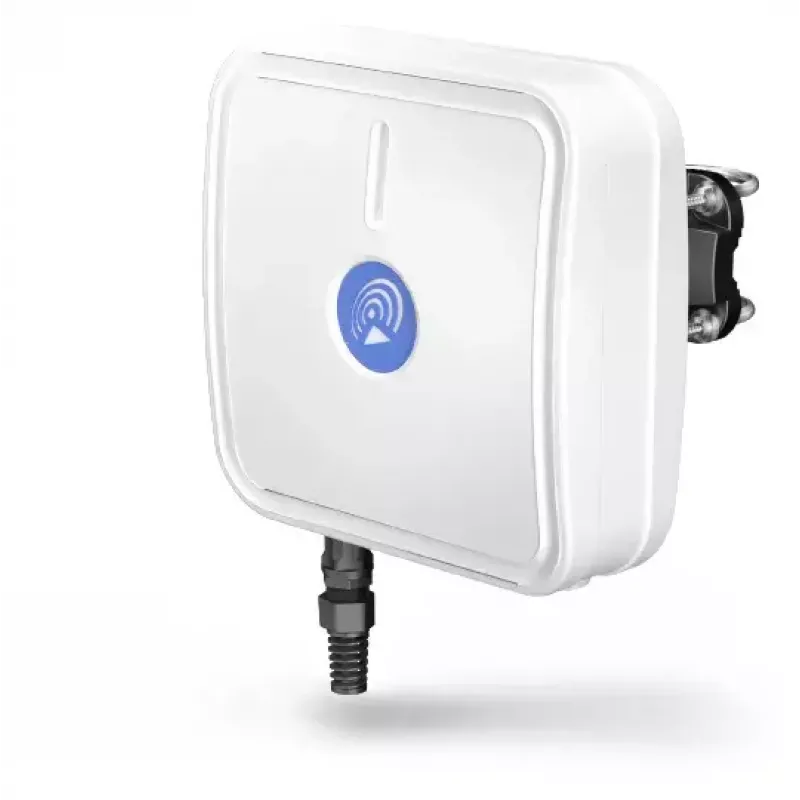

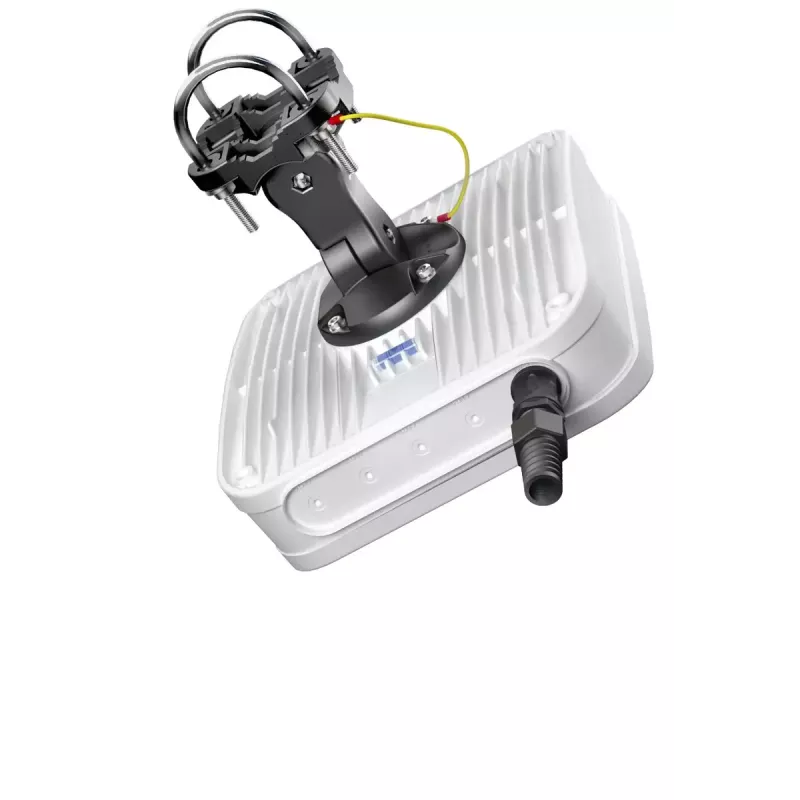

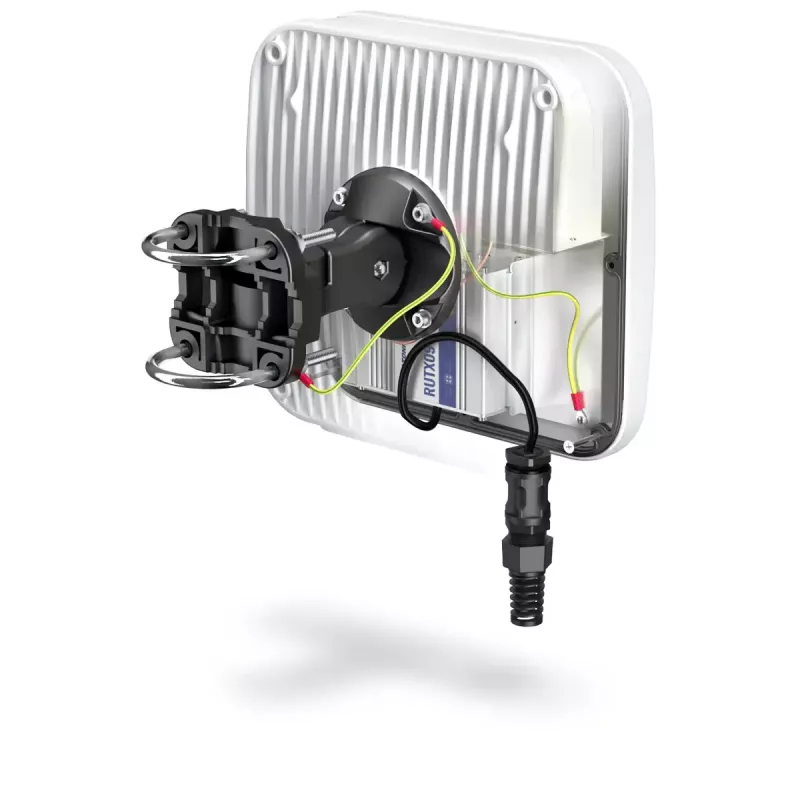

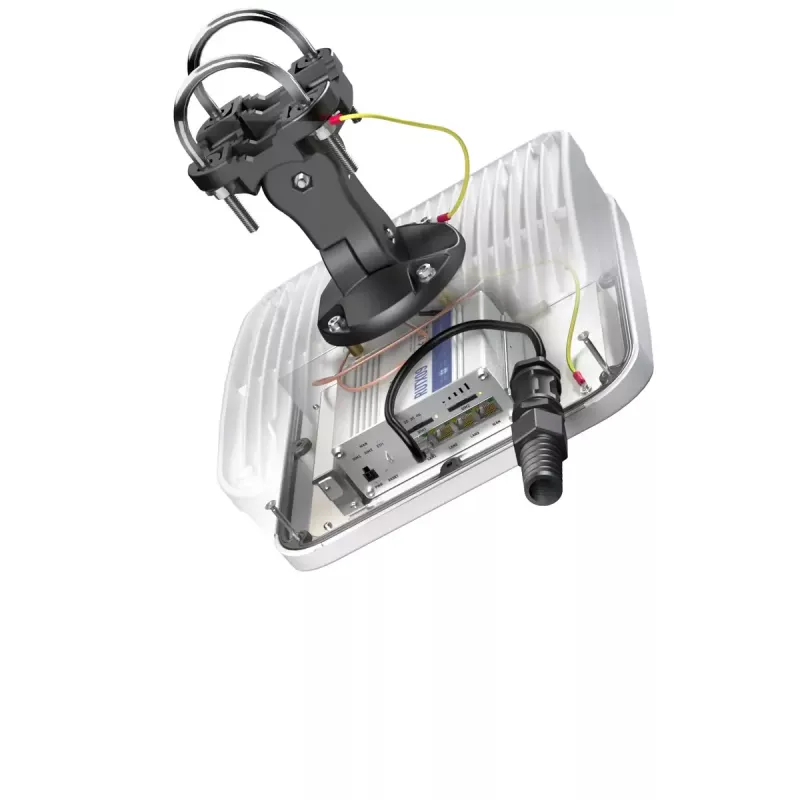

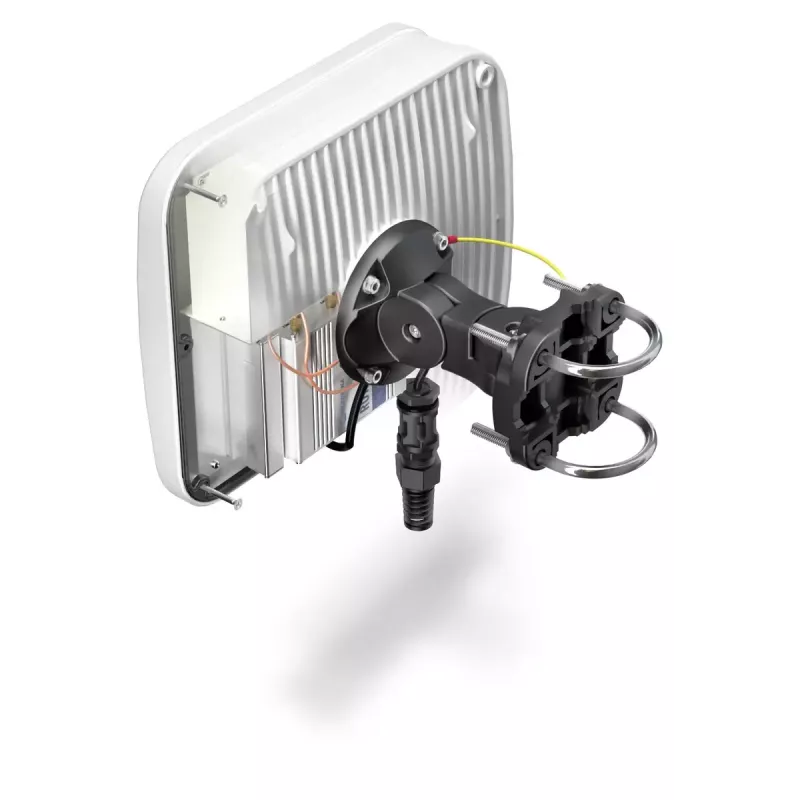

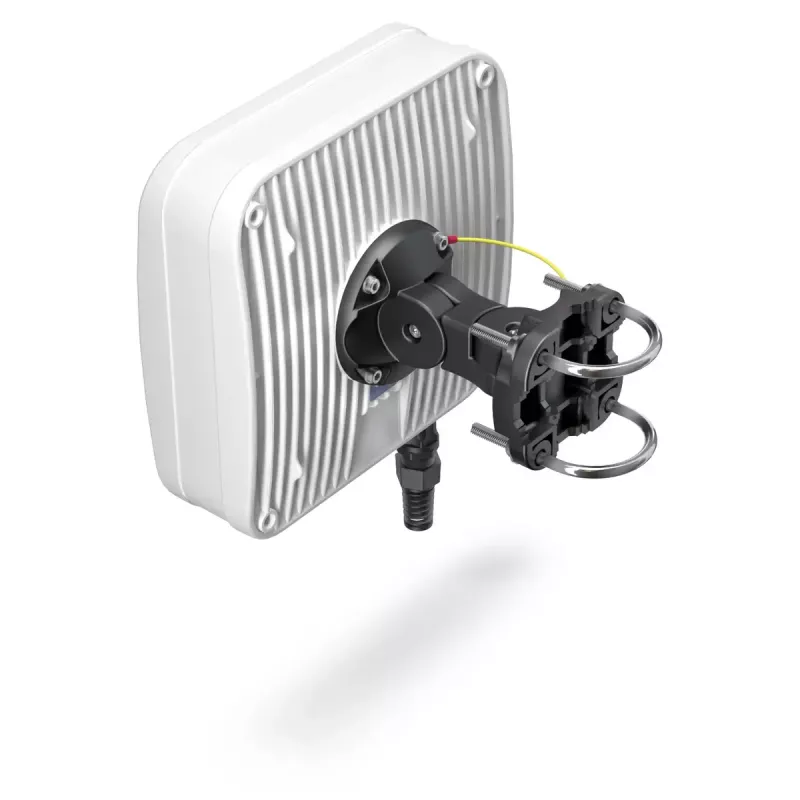

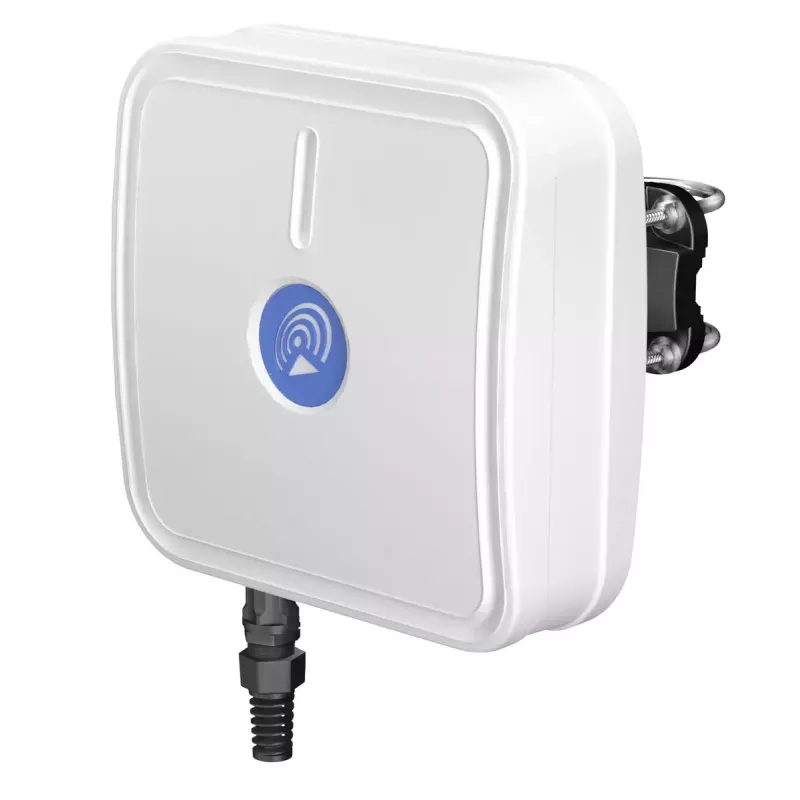

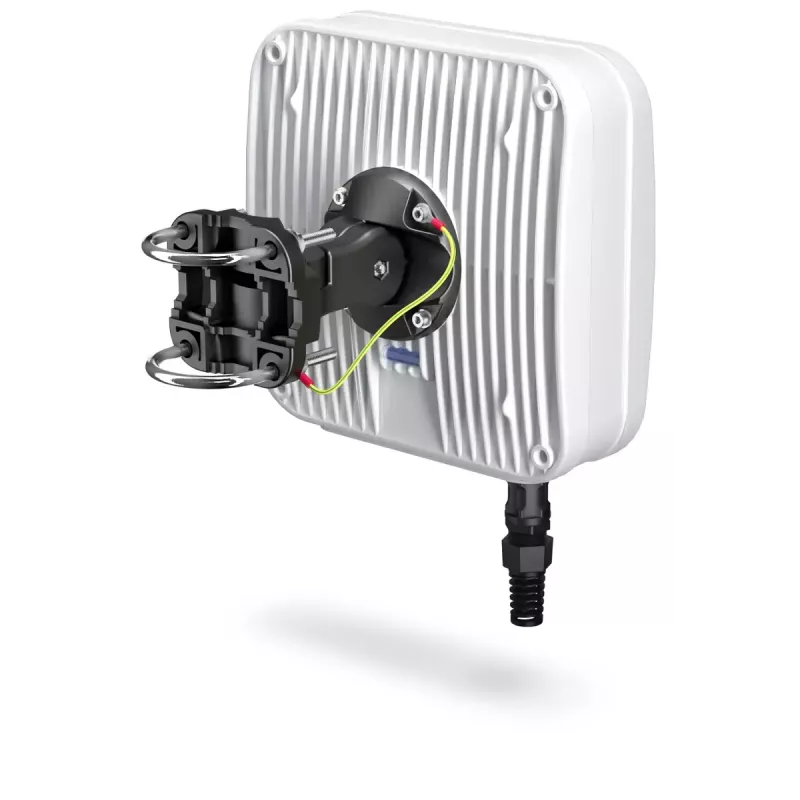

QuWireless QuMax is an integrated outdoor multi-band directional LTE antenna with an embedded GPS antenna and a dedicated IP67 enclosure designed to accommodate a Teltonika RUTX09 router. The antenna covers frequency ranges 0.694–0.96 GHz, 1.7–2.2 GHz and 2.2–2.7 GHz, offers vertical polarization and a maximum gain of 6 dBi, and is intended for fixed industrial installations requiring long-distance links to base stations.

Advantages

The QuMax combines a high-power directional LTE antenna and GPS receiver in a single weatherproof housing rated IP67, simplifying installation by providing a built-in place to mount the Teltonika RUTX09 router. Its multi-band design supports a wide range of cellular frequencies and the compact dimensions (272 × 96 × 276 mm) with a robust 1.8 kg construction make it suitable for outdoor industrial use where reliable long-range connectivity is needed.

Suitable for

• Fixed outdoor installations linking to distant LTE base stations
• Industrial or remote sites requiring GPS timing/location and cellular backhaul
• Deployments using a Teltonika RUTX09 router placed inside the IP67 enclosure

Key specifications

• Frequency band: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz
• Antenna gain (max): 6 dBi
• Polarization: vertical
• Connector type: PoE/LAN
• Dimensions (W×D×H): 272 × 96 × 276 mm
• Weight: 1.8 kg
• Colour: white
• Mounting: IP67 outdoor enclosure with space for Teltonika RUTX09

How to use

Mount the QuMax antenna on a suitable outdoor mast or wall bracket oriented toward the target base station to maximize directional gain. Install the Teltonika RUTX09 router inside the provided IP67 enclosure following the manufacturer's mounting and grounding instructions, connect the antenna feed to the router via the PoE/LAN interface, and secure all seals to maintain the enclosure's weatherproof rating. Verify GPS reception after installation and adjust orientation if necessary to improve cellular link quality.

Recommendations

For optimal long-distance LTE performance, place the antenna as high as practical with a clear line of sight to the base station, ensure proper grounding, and follow Teltonika RUTX09 installation guidelines when fitting the router inside the enclosure.
