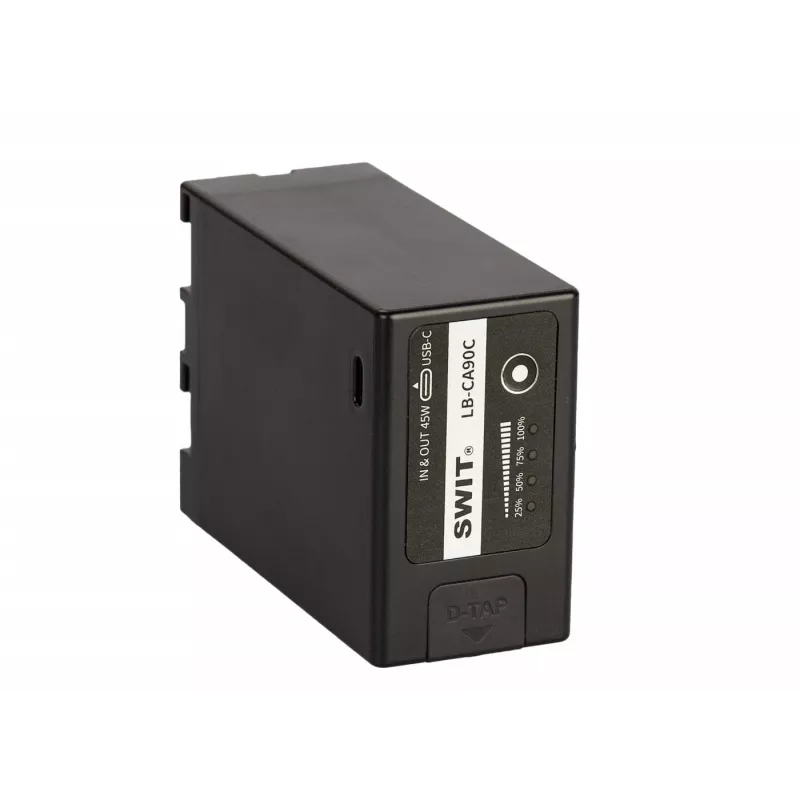

SWIT ELECTRONICS LB-CA90C Li-Ion akku Canon EOS C70, C200, C300 MK2, C500 MK2 - 90Wh, 14,4V, BP-A kiinnitys

The SWIT ELECTRONICS LB-CA90C is a high-capacity Li-Ion battery designed for professional Canon cinema cameras. With a 90Wh capacity and 14.4V nominal voltage, it provides reliable power for extended shooting sessions. The battery features a BP-A mount, making it compatible with Canon EOS C70, C200, C300 Mark II, and C500 Mark II cameras. It includes multiple output options: a D-Tap port (14.4V), USB-C Power Delivery (27W), and USB-A (5V/2A), allowing you to power accessories or charge devices on the go. The 4-level LED indicator shows remaining power, and built-in protection circuits guard against over-voltage, under-voltage, over-current, and over-temperature. Operating temperature range is -20°C to +50°C. Charging time is approximately 3.5 hours with a compatible charger.

Advantages

High energy density (90Wh) for long runtime. Versatile outputs (D-Tap, USB-C PD, USB-A) for powering cameras, monitors, lights, and mobile devices. Robust safety features ensure reliable operation in demanding environments. Lightweight and compact design for easy portability.

Suitable for

• Canon EOS C70, C200, C300 Mark II, C500 Mark II cameras
• Professional videography and cinematography
• Field production and live events
• Powering accessories via D-Tap or USB

Key specifications

• Battery Type: Li-Ion
• Nominal Voltage: 14.4 V
• Capacity: 90 Wh / 6.2 Ah
• Mount: BP-A
• Max Output Power: 100 W
• Max Output Current: 8 A
• D-Tap Output: 14.4 V
• USB-C Output: 27W PD (5V/3A, 9V/2A, 12V/1.8A, 15V/1.5A)
• USB-A Output: 5V/2A
• Power Indicator: 4-level LED
• Protection: Over-voltage, Under-voltage, Over-current, Over-temperature
• Operating Temperature: -20°C to +50°C
• Charging Time: Approx. 3.5 hours

Recommendations

For best performance, use with SWIT or compatible BP-A series chargers. Always store batteries in a cool, dry place. Do not expose to extreme temperatures or moisture.
