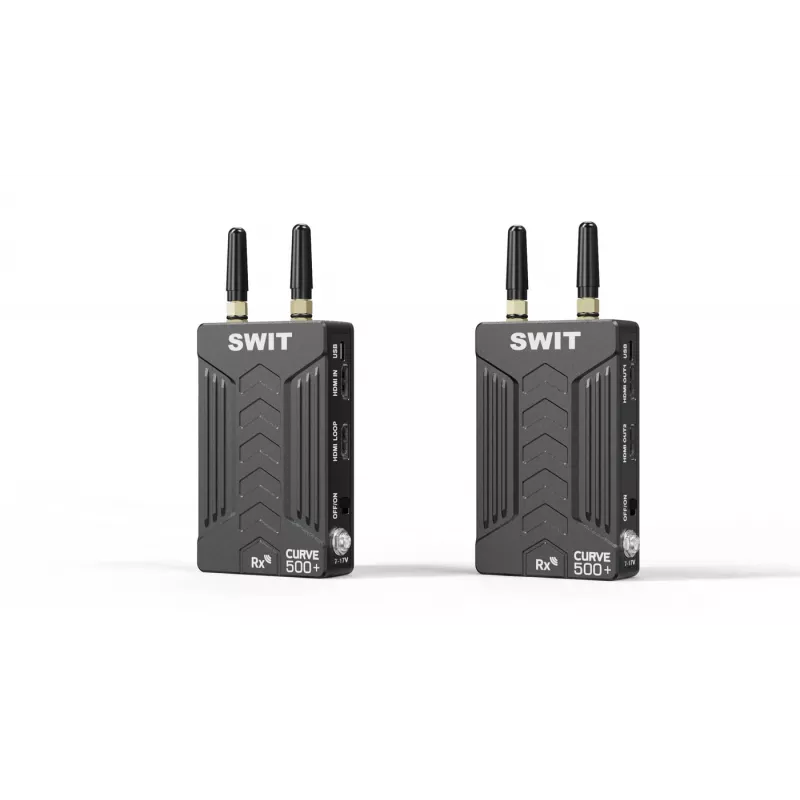

SWIT ELECTRONICS CURVE500+ Full-HD langaton videonsiirtojärjestelmä lähettimellä ja vastaanottimella

The SWIT ELECTRONICS CURVE500+ is a professional Full-HD wireless video transmission system designed for broadcast, film, and live production. It includes both a transmitter and receiver, offering zero-latency (<1ms) transmission up to 150m line-of-sight. Supporting HDMI and 3G-SDI inputs/outputs, it delivers pristine 1080p60 video with AES 128-bit encryption for secure links.

Advantages

Ultra-low latency ensures real-time monitoring and confidence. The metal housing provides durability for field use. Multicast support allows one transmitter to send video to up to four receivers, ideal for multi-camera setups. Battery compatibility with Sony NP-F series enables portable operation.

Suitable for

• Live event broadcasting
• Film and video production
• Studio monitoring
• Remote camera applications

Key specifications

• Transmission Range: 150m (500ft) Line-of-Sight
• Latency: <1ms
• Video Input (Transmitter): 1x HDMI, 1x 3G-SDI
• Video Output (Receiver): 1x HDMI, 1x 3G-SDI
• Video Resolution: Up to 1080p60
• Frequency Band: 5.1-5.9 GHz (DFS Compliant)
• Encryption: AES 128-bit
• Power Input: DC 7-17V (2-pin LEMO)
• Power Consumption: Transmitter <6.5W, Receiver <7W
• Battery Compatibility: Sony NP-F type (optional plates)
• Mounting: 1/4"-20 Thread, Cold Shoe
• Multicast: 1 Transmitter to up to 4 Receivers
• Audio: Embedded SDI/HDMI 2-channel
• Housing Material: Metal
• OSD: Signal strength, Battery status, Channel info
• Tally: Yes (via SDI/HDMI)
• Operating Temperature: -20°C to 50°C

Recommendations

Ideal for professionals requiring reliable, low-latency wireless video. Pair with Sony NP-F batteries for mobile use. The CURVE500+ is a robust solution for demanding production environments.
