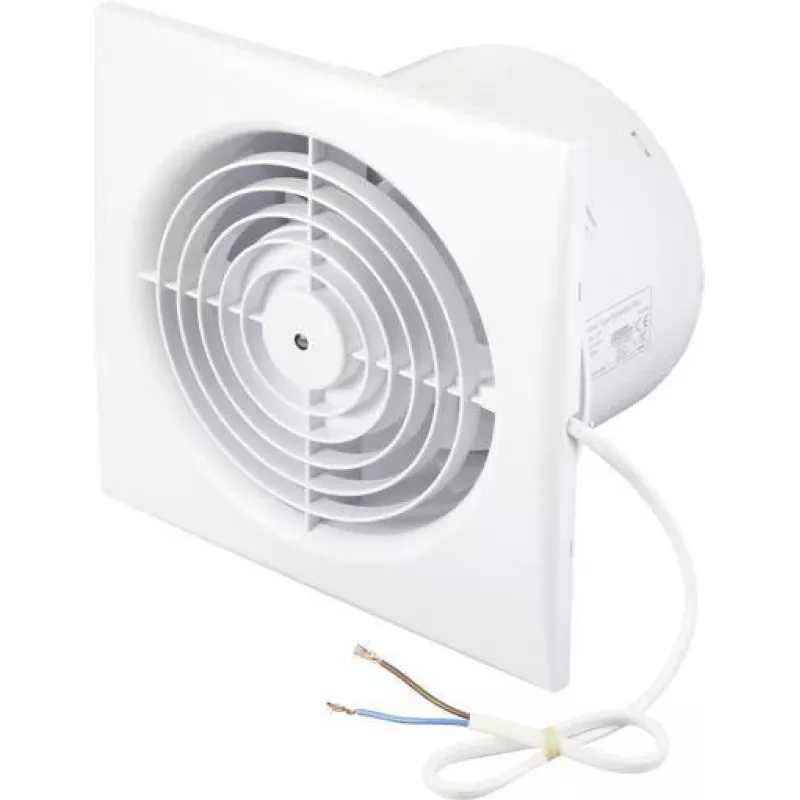

Sygonix seinä- ja kattotuuletin 230 V/AC 320 m³/h 150 mm (SY-5233256)

Install the Sygonix wall and ceiling fan in your bathroom, toilet, or utility room to extract moist air and odours efficiently. With a duct diameter of 150 mm and an airflow rate of 320 m³/h, it provides reliable ventilation for spaces up to about 10 m². The fan operates on 230 V/AC at 50 Hz and consumes only 20 W, making it an energy-conscious choice. Its axial fan design and integrated backdraft shutter prevent outside air from entering when the fan is off. The housing is made of white ABS plastic, and the front panel measures 200 x 200 mm with an installation depth of 80 mm. Control is via an external switch (not included).

Key specifications

• Product type: Wall and ceiling fan
• Mounting type: Wall, ceiling
• Duct diameter: 150 mm
• Airflow rate: 320 m³/h
• Operating voltage: 230 V/AC
• Frequency: 50 Hz
• Power consumption: 20 W
• Noise level: 45 dB
• Fan type: Axial fan
• Material: ABS plastic
• Colour: White
• Installation depth: 80 mm
• Front panel dimensions: 200 x 200 mm
• Integrated backdraft shutter: Yes
• Application area: Bathroom, toilet, utility room
• Control type: External switch (not included)

Why choose it

The Sygonix SY-5233256 combines compact dimensions with powerful airflow. Its IPX4 protection class makes it suitable for damp environments, and the integrated backdraft shutter improves energy efficiency by preventing cold drafts. The white ABS plastic housing is easy to clean and blends seamlessly into modern interiors.

Ideal use cases

• Bathroom ventilation to reduce humidity and prevent mould
• Toilet odour extraction
• Utility room air circulation
• Small kitchens or storage areas

Good to know

The fan is designed for wall or ceiling installation and requires a separate external switch for operation. Ensure the duct diameter matches your existing ventilation system (150 mm). Installation should be carried out by a qualified electrician in accordance with local regulations.
