Sygonix SY-6748352 3-napainen säänkestävä kaapeliliitin vipuliittimillä, IP68, musta

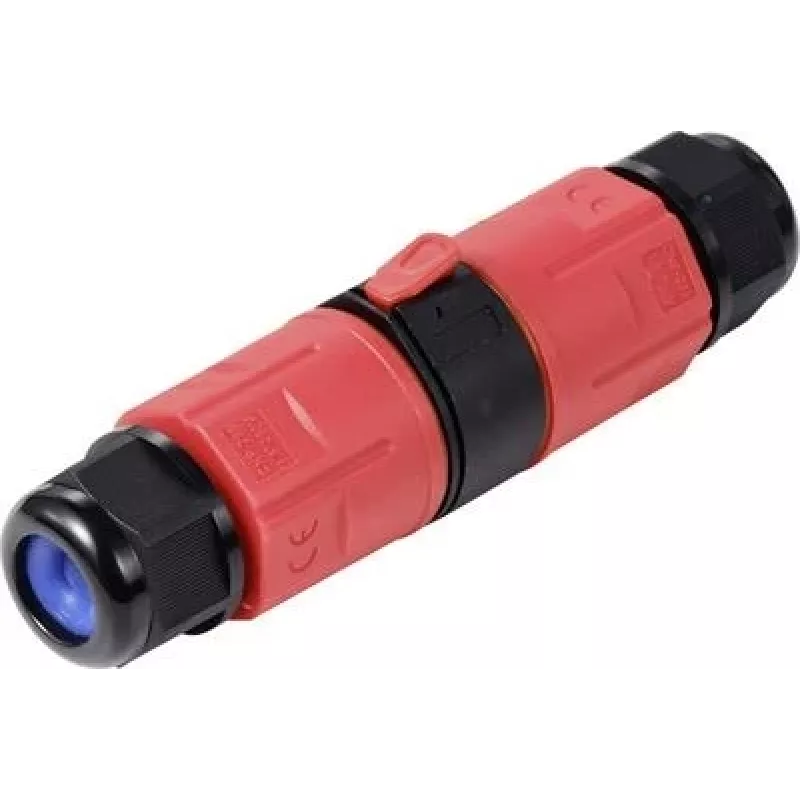

Outdoor electrical connections demand reliability in rain, dust, and temperature swings. The Sygonix SY-6748352 cable connector with lever terminals is built for exactly that: join 3-core cables securely in gardens, wet areas, or any exposed location. Its IP68-rated housing and silicone seals keep moisture out, while the tool-free lever clamps make installation quick and repeatable.

Key specifications

• Connection method: lever-type plug terminals
• Number of poles: 3
• Max. voltage: 450 V
• Max. current: 24 A
• Conductor cross-section: 0.5 – 2.5 mm²
• Outer cable diameter: 4 – 10 mm
• Housing material: PA66 (polyamide 66)
• Seal material: silicone
• Operating temperature: -40 to +105 °C
• Colour: black

Why choose it

The inline design saves space and simplifies wiring in junction boxes or along cable runs. No soldering or screwdrivers needed – just lift the lever, insert the stripped conductor, and press down. The connector is reusable, so you can reconfigure connections without cutting or replacing components.

Ideal use cases

• Outdoor lighting and garden power circuits
• Pond pumps, irrigation systems, and wet-area installations
• Repairing damaged cables or extending existing lines
• Temporary connections at events or construction sites

Good to know

The connector is rated for 450 V and 24 A, making it suitable for most residential and light commercial applications. Its wide temperature range ensures performance from freezing winters to hot summers.
