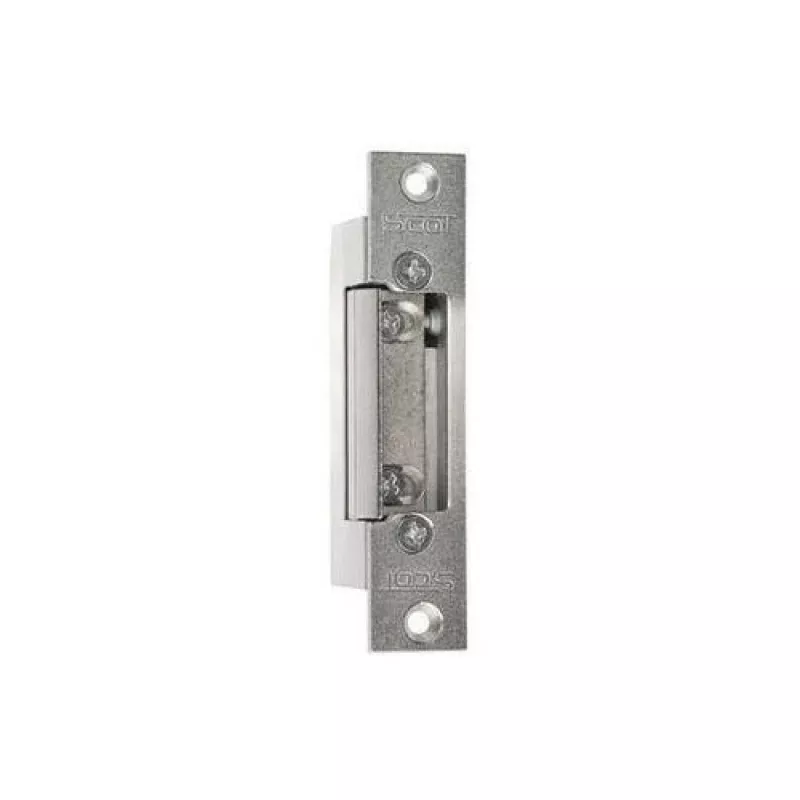

Symmetrinen sähköinen ovenavaaja SCOT ES-S12AC/DC PROFI

The SCOT ES-S12AC/DC PROFI is a high-quality symmetrical electric strike designed for professional access control systems. Engineered for reliability and security, this fail-secure strike operates on 12V AC/DC and delivers a holding force of 3000 N, making it suitable for heavy-duty door applications. Its reversible design allows for easy installation on both left and right-handed doors.

Advantages

Robust zinc alloy body with stainless steel latch ensures long-lasting durability. Built-in varistor protection safeguards against voltage surges. Adjustable latch bolt up to 3 mm provides flexibility for alignment. Rated for 300,000 cycles, it offers dependable performance over time.

Suitable for

• Access control systems
• Intercoms and door entry systems
• Commercial and residential security doors

Key specifications

• Strike Type: Symmetrical Electric Strike
• Operation Mode: Fail-Secure (Standard)
• Operating Voltage: 12V AC/DC
• Current Consumption (AC): 280 mA
• Current Consumption (DC): 350 mA
• Holding Force: 3000 N (approx. 300 kg)
• Durability Rating: 300,000 cycles
• Material: Zinc Alloy (body), Stainless Steel (latch)
• Latch Bolt Adjustment: Up to 3 mm
• Built-in Protection: Varistor (Surge Protection)
• Operating Temperature: -20°C to +50°C
• Installation Type: Mortise (Flush Mount)
• Handing: Reversible (Symmetrical Design)
• Finish: Grey/Silver

Recommendations

For optimal performance, ensure proper wiring and voltage supply. Compatible with most standard access control panels. Professional installation recommended.
