Synergy 21 LED-ohjain HC-sarja 5-in-1 DC12-48V Zigbee 3.0+ 2.4G HP 30A MiLight/Miboxer (HZ5)

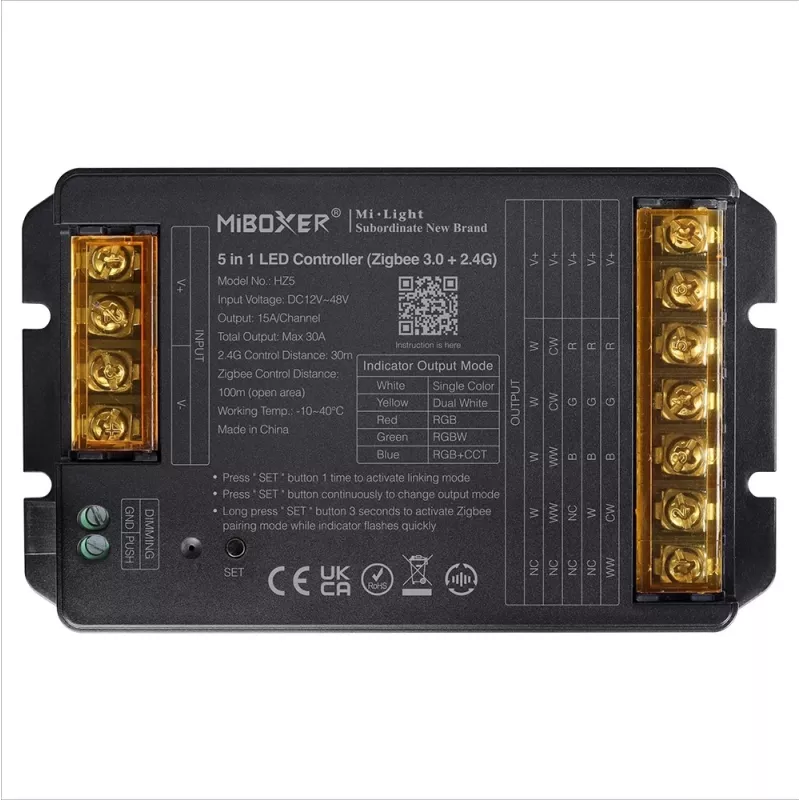

LED controller for professional lighting installations, delivering 5-in-1 control (single colour, CCT, RGB, RGBW, RGB+CCT) with dual wireless protocols: Zigbee 3.0+ and 2.4GHz RF (MiLight/Miboxer compatible). Operates on DC 12-48V and handles up to 30A total output current, supporting loads from 360W at 12V to 1440W at 48V.

Advantages

Dual wireless control via Zigbee 3.0+ and 2.4GHz RF ensures compatibility with a wide range of gateways and remotes. The 5-in-1 output supports multiple LED configurations, while screw terminals provide secure connections. Built-in overload, short-circuit, and over-temperature protection enhance reliability.

Suitable for

• Residential and commercial LED lighting projects
• Retrofitting existing MiLight/Miboxer systems
• Integration with Zigbee smart home ecosystems

Key specifications

• Input voltage: DC 12-48V
• Max output current: 30A total
• Max output power: 360W (12V) to 1440W (48V)
• Control modes: Single colour, CCT, RGB, RGBW, RGB+CCT
• Wireless protocols: Zigbee 3.0+, 2.4GHz RF
• Control distance: up to 30m
• Operating temperature: -20°C to +60°C
• Housing material: ABS plastic

Recommendations

Pair with a compatible Zigbee gateway or MiLight/Miboxer remote for full functionality. Ensure the power supply matches the LED load voltage and current requirements.
