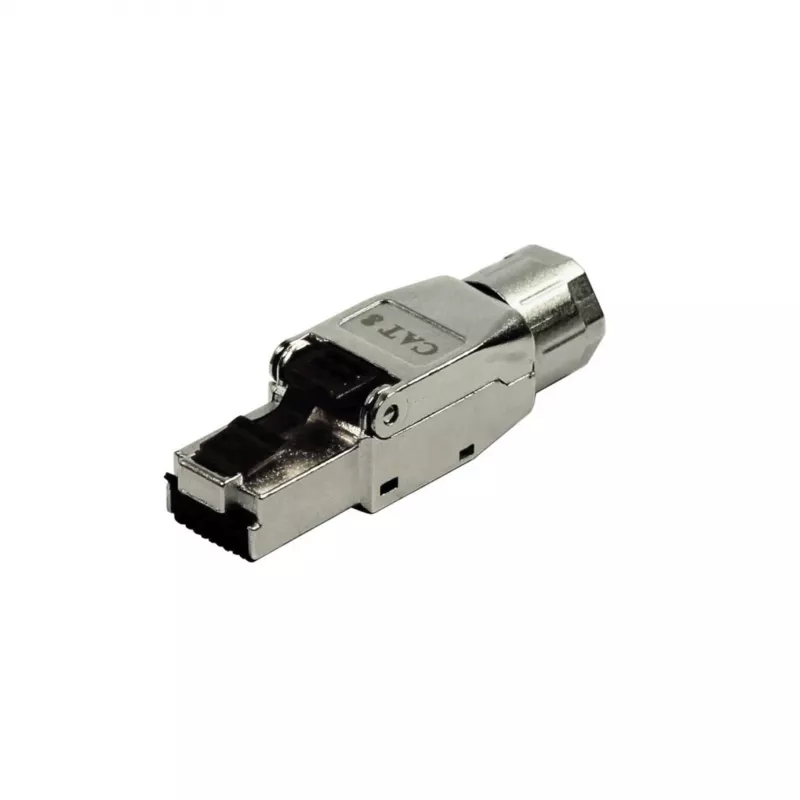

SYNERGY21 CAT8 Class I RJ45 kenttäliitettävä työkaluton TP-liitin (S216354)

The SYNERGY21 CAT8 Class I RJ45 Field Terminable Tool-less TP Connector (S216354) is a high-performance, fully shielded RJ45 plug designed for professional network installations. It supports data rates up to 40 Gigabit Ethernet (40GBASE-T) and a frequency bandwidth of up to 2000 MHz, making it ideal for demanding data center and enterprise environments. The tool-less termination method allows for quick and easy field installation without specialized tools, supporting both solid and stranded conductors (22-26 AWG).

Advantages

Tool-less IDC termination reduces installation time and eliminates the need for crimping tools. The die-cast zinc housing provides robust shielding and durability. Gold-plated contacts (50µ") ensure reliable connectivity and corrosion resistance. Reusable up to 10 termination cycles, offering flexibility for reconfiguration.

Suitable for

• Data center cabling infrastructure
• Enterprise network installations
• High-speed Ethernet applications (40GBASE-T)
• PoE, PoE+, and 4PPoE powered devices
• Structured cabling systems requiring CAT8 Class I performance

Key specifications

• Connector Type: RJ45 Plug (Male)
• Cable Category: CAT8 Class I
• Termination Method: Field Terminable, Tool-less IDC
• Shielding: Fully Shielded (STP/FTP compatible)
• Data Rate Support: Up to 40 Gigabit Ethernet (40GBASE-T)
• Frequency Bandwidth: Up to 2000 MHz
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Conductor Compatibility: Solid and Stranded Wire
• AWG Compatibility: 22-26 AWG
• Contact Plating: Gold-plated (50µ")
• Housing Material: Die-cast Zinc
• Wiring Scheme: T568A and T568B (color coded)
• Reusability: Up to 10 termination cycles
• Standards Compliance: ISO/IEC 11801-1, EN 50173-1, TIA-568.2-D, IEC 60603-7-81
• Operating Temperature: -10°C to +60°C
• Insertion Cycles: >750
• Insulation Resistance: >500 MΩ
• Dielectric Strength: 1000V AC RMS

Recommendations

For optimal performance, use with CAT8 Class I shielded cables and ensure proper grounding. The connector is suitable for both solid and stranded conductors; follow the color-coded wiring scheme for T568A or T568B termination.
