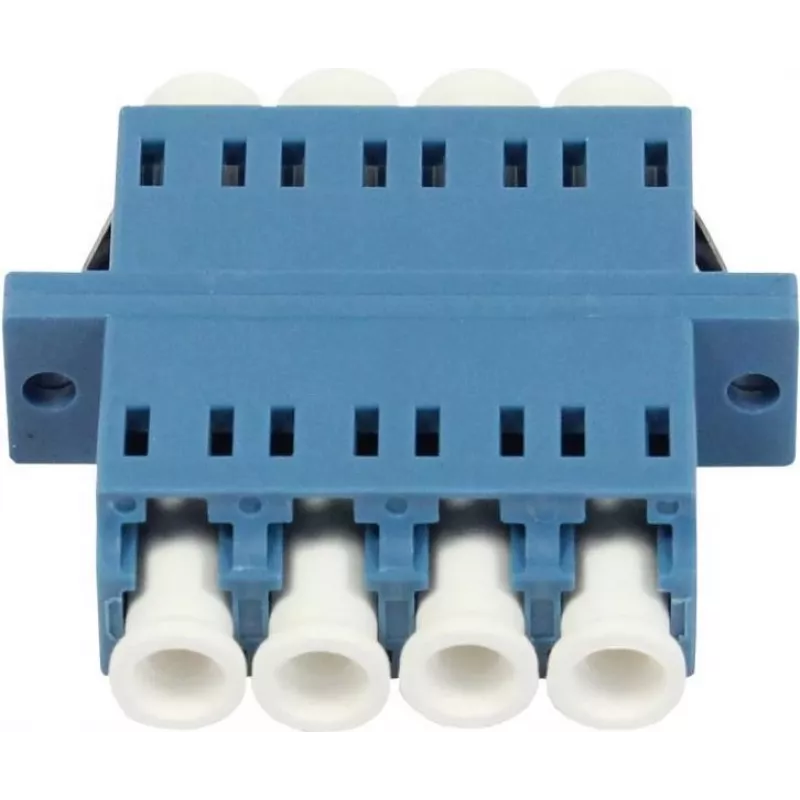

SYNERGY21 kuitukytkin LC-LC Quad Singlemode OS2 sininen PVC

The SYNERGY21 S215689 fibre optic coupler is a high-performance LC-LC adapter designed for singlemode OS2 applications. This quad (4-fiber) coupler features a blue PVC housing with zirconia ceramic sleeves, ensuring low insertion loss and high return loss for reliable data transmission in data centers, telecommunications, and LAN networks.

Advantages

Low insertion loss (<0.2 dB) and high return loss (>50 dB) ensure minimal signal degradation. Durable zirconia ceramic sleeves provide over 500 mating cycles. Compact quad design saves space in patch panels and enclosures.

Suitable for

• Data center fiber optic patching
• Telecommunications infrastructure
• FTTx networks
• LAN cabling systems

Key specifications

• Connector type: LC-Female to LC-Female
• Fiber mode: Singlemode OS2
• Core/cladding: 9/125 µm
• Configuration: Quad (4-fiber)
• Color: Blue
• Housing material: PVC
• Sleeve material: Zirconia ceramic
• Insertion loss: <0.2 dB typical
• Return loss: >50 dB typical
• Mating durability: >500 cycles
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Flammability rating: UL94 V-0
• Standards: IEC 61754-20, TIA/EIA-604-10
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair with SYNERGY21 LC patch cables and use in clean, dry environments. Ensure proper alignment during installation to maintain low insertion loss.
