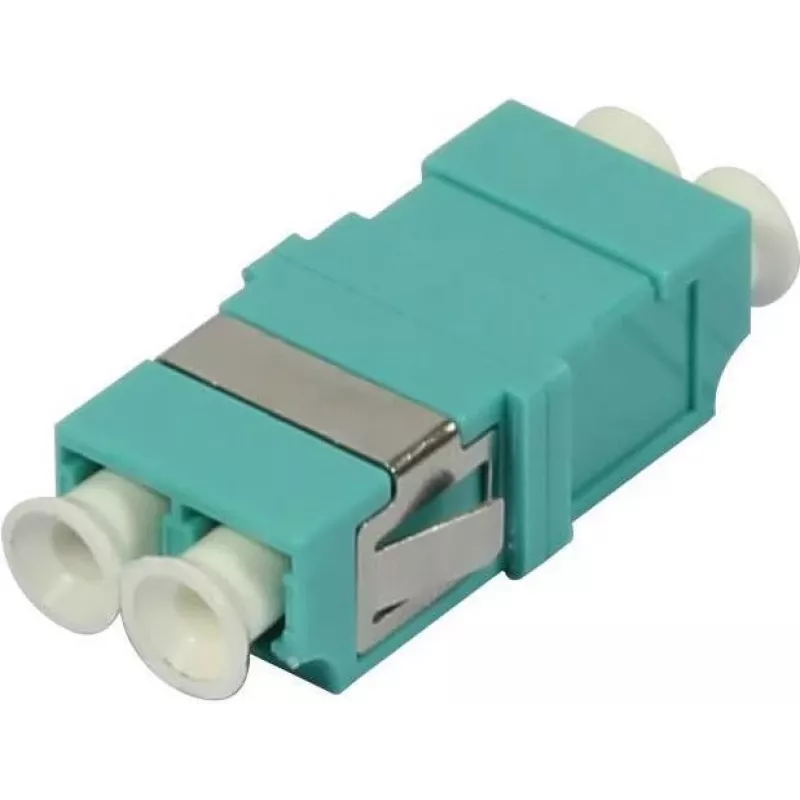

SYNERGY21 LC Duplex -monimuotokuitusovitin, 50/125µm, aqua, laipaton S215481

In a busy data center, a network technician needs to join two LC-terminated multimode fiber cables quickly and reliably. The SYNERGY21 S215481 LC duplex adapter snaps into a standard panel cutout without a flange, providing a secure connection point. Its aqua PVC housing instantly identifies OM3/OM4 compatibility, while the zirconia ceramic sleeves ensure precise alignment for low insertion loss and high return loss. This adapter is a practical choice for high-density patching in racks and enclosures.

Key specifications

• Connector type: LC female to LC female
• Fiber mode: Multimode 50/125 µm
• Configuration: Duplex
• Housing material: PVC
• Housing colour: Aqua
• Mounting: Flangeless (without flange)
• Insertion loss: < 0.3 dB (typical)
• Return loss: > 20 dB (typical)
• Sleeve material: Zirconia ceramic
• Mating cycles: > 500
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards compliance: RoHS, REACH
• Fiber compatibility: OM2, OM3, OM4
• Wavelength compatibility: 850nm, 1300nm

Why choose it

This adapter offers stable optical performance with low insertion loss and high return loss, thanks to its precision zirconia ceramic sleeves. The flangeless design allows for easy installation in high-density patch panels and wall plates, saving space and simplifying cable management. The aqua colour coding aligns with industry standards for multimode 50/125 µm fiber, reducing the risk of mismatched connections.

Ideal use cases

• Data center cross-connects and interconnects
• Local area networks (LAN) and storage area networks (SAN)
• Telecommunication distribution frames
• Fiber-to-the-desk applications
• Test and measurement setups

Good to know

The adapter is compliant with RoHS and REACH, ensuring environmental safety. It supports OM2, OM3, and OM4 multimode fibers, making it versatile for various bandwidth requirements. The operating temperature range from -20°C to +70°C allows deployment in a wide range of environments. Each adapter is individually tested to meet performance specifications.
