Synergy 21 FTTH-seinäkotelo IP65 2x tulo / 8x lähtö

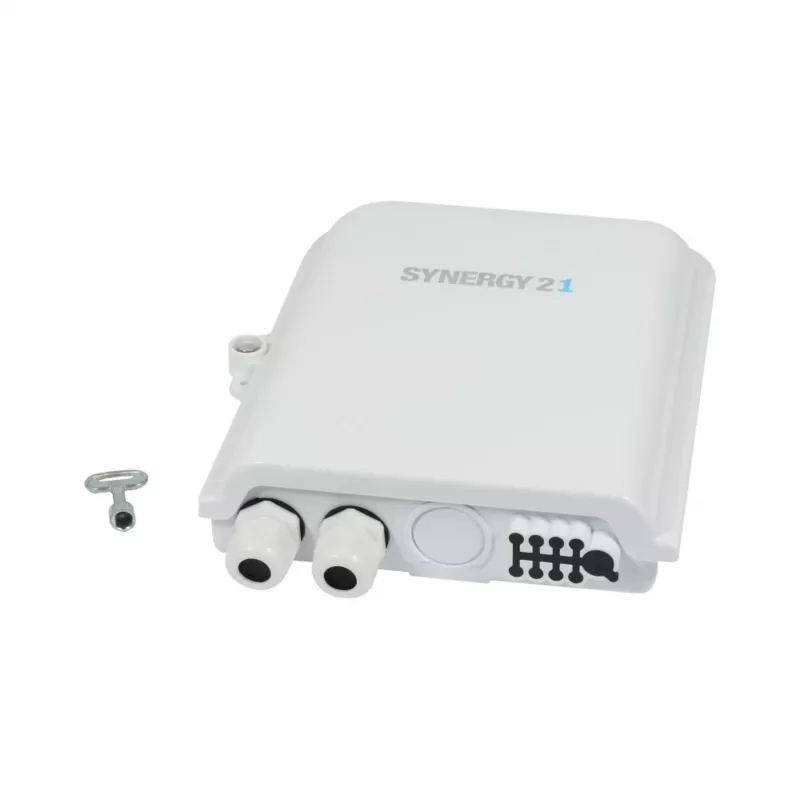

The Synergy 21 FTTH Wall Enclosure (S215589V2) is a high-quality fiber termination box designed for Fiber-to-the-Home (FTTH) distribution networks. With an IP65 protection rating, it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor wall-mounted installations. The enclosure features 2 input ports for main fiber cables and 8 output ports for subscriber drop cables, supporting up to 8 fusion splices. It is compatible with 8x SC Simplex or 8x LC Duplex adapters, providing flexibility for various connector types.

Advantages

Robust UV-resistant ABS plastic construction ensures long-term durability in harsh environments. The integrated splice tray and cable routing guides simplify installation and organization. A security screw locking mechanism prevents unauthorized access, enhancing network security. The wide operating temperature range (-40°C to +70°C) ensures reliable performance in extreme conditions.

Suitable for

• FTTH distribution points in residential and commercial buildings
• Outdoor wall-mounted fiber optic termination
• Telecommunications network infrastructure

Key specifications

• Product Type: FTTH Wall Enclosure / Fiber Termination Box
• IP Protection Class: IP65
• Input Ports: 2 (for main fiber cables)
• Output Ports: 8 (for subscriber drop cables)
• Splice Capacity: Up to 8 fusion splices
• Adapter Slots: 8x SC Simplex or 8x LC Duplex (compatible)
• Material: UV-resistant ABS Plastic
• Mounting Type: Wall-mounted
• Color: White
• Operating Temperature: -40°C to +70°C
• Cable Entry Type: Gland entries (sealed)
• Locking Mechanism: Security screw / Lockable
• Flame Retardancy: UL94-V0 compliant

Recommendations

For optimal performance, use with compatible SC or LC connectors and ensure proper cable management within the enclosure. This product is ideal for FTTH deployments requiring a durable, weatherproof termination point.
