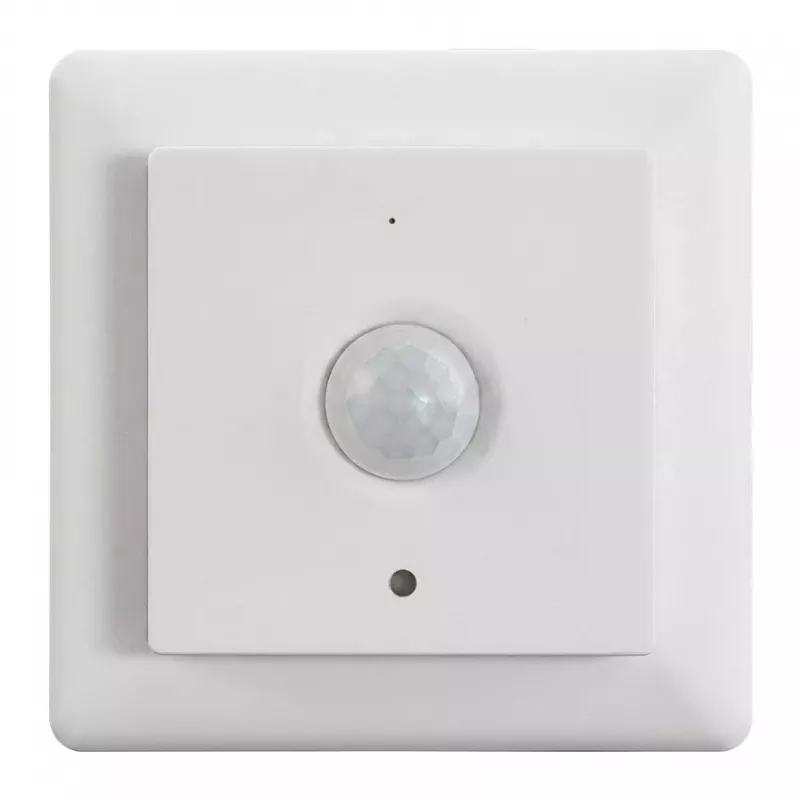

SYNERGY21 Synergy 21 LED EOS 10 -sarja ZigBee PIR-anturi 4in1

The SYNERGY21 Synergy 21 LED Serie EOS 10 ZigBee PIR Sensor 4in1 is a versatile multi-sensor designed for smart home automation. It integrates motion detection, temperature, humidity, and light sensing in a compact, battery-powered device. With ZigBee 3.0 connectivity, it seamlessly integrates with popular smart home systems like Philips Hue, SmartThings, and Home Assistant via ZigBee2MQTT.

Advantages

This 4-in-1 sensor offers comprehensive environmental monitoring: motion detection up to 7 meters with a 120° angle, temperature measurement from -10°C to +50°C, humidity from 0% to 99% RH, and light levels from 0 to 15000 Lux. Its battery-powered design (CR2450) ensures easy installation anywhere, with an estimated battery life of up to 2 years. The sensor can be mounted on walls or ceilings using the included adhesive pad or screws.

Suitable for

• Smart home automation projects requiring motion, temperature, humidity, and light sensing
• Integration with ZigBee 3.0 gateways for automated lighting, climate control, and security
• Energy-efficient monitoring in residential or commercial spaces

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Connectivity: ZigBee 3.0
• Motion Detection: 120° angle, up to 7 meters
• Temperature Range: -10°C to +50°C
• Humidity Range: 0% to 99% RH
• Light Range: 0 to 15000 Lux
• Power Source: Battery (CR2450)
• Battery Life: Up to 2 years
• Mounting: Wall or ceiling (adhesive pad/screws)
• Color: White
• Housing Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a compatible ZigBee 3.0 gateway. Ensure the sensor is placed within range of the gateway and avoid direct sunlight or heat sources for accurate temperature readings.
