Tarratulostin Honeywell PM45 Compact lämpösiirto 203 x 203 DPI 350 mm/s

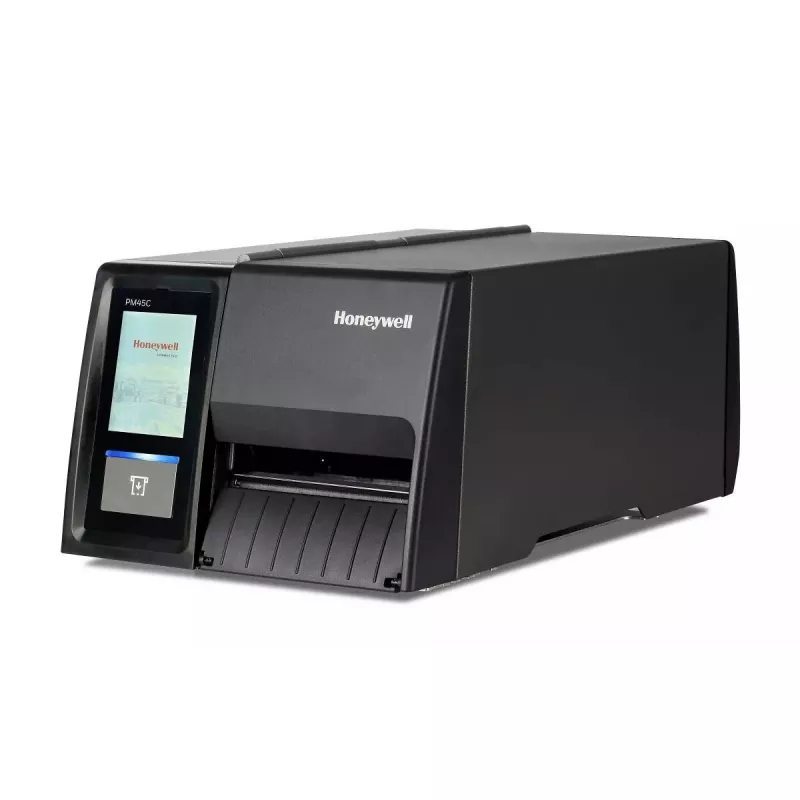

The Honeywell PM45 Compact thermal transfer label printer provides reliable high-volume printing for manufacturing and supply chain applications. Built on Honeywell's print platform, the PM45 delivers consistent print quality for barcodes, text, and images with a 203 x 203 DPI resolution and print speeds up to 350 mm/sec (approximately 14 ips). The device supports a wide range of media and ribbon types and is designed for integration into cloud or local systems via multiple network and protocol options.

Advantages

The PM45 offers precise print registration (up to ±0.5 mm), a rugged all-metal print mechanism, and easy maintenance with tool-free platen roller and printhead replacement. It includes enhanced WWAN connectivity and optional interfaces such as RFID, parallel, industrial ports, and applicator support to meet evolving site requirements. Embedded Smart Parse and Operational Intelligence software simplify label layout changes and remote diagnostics without extensive backend changes.

Suitable for

• High-volume label printing in manufacturing
• Warehouse and distribution center labeling
• Pharmaceutical and medical device labeling
• Food and beverage product tracking and traceability

Key specifications

• Printing technology: Thermal transfer
• Resolution: 203 x 203 DPI
• Maximum print speed: 350 mm/sec (≈14 ips)
• Print registration accuracy: up to ±0.5 mm
• Media compatibility: wide range of labels and ribbons (supports 1-inch core ribbons)
• Connectivity: wired network with enhanced WWAN options; multiple protocol and print language support
• Model / MPN: Honeywell PM45 / PM45CA1010030200

How to use

Install the PM45 on a stable surface and connect it to your network or host via the supported wired or WWAN interfaces. Load compatible thermal transfer media and ribbon (1-inch core ribbons supported), configure the printer using Honeywell's setup utilities or your existing print server, and select the required print language and network protocol for integration. Use Smart Parse to adjust label elements such as object position, barcode sizing, or fonts without modifying backend systems. Monitor performance and diagnostics remotely through Honeywell Operational Intelligence.

Recommendations

Use manufacturer-recommended media and ribbons for best print longevity and consistent barcode readability. Schedule routine checks of the printhead and platen roller and use the tool-free replacement features to reduce downtime.
