TCS FBI1210-0 USB-huoltoliitäntäsarja TCS:BUS-järjestelmälle

TCS FBI1210-0 is a hardware maintenance kit for configuring, analysing and servicing TCS door communication systems. Its interface connects a computer to TCS:BUS and provides galvanic isolation between the computer and the installation. It also has an I²C connection for supported interchangeable EEPROM boards and an RJ11 socket for the handset.

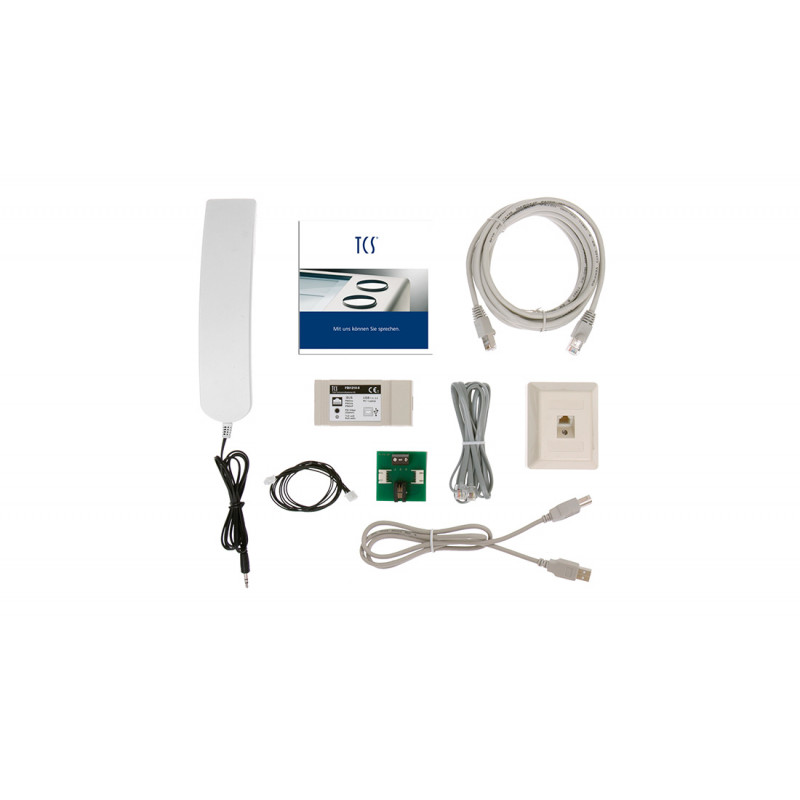

The kit includes the FBI1210 interface, EEPROM adapter, connection board, 1 m USB cable, four-core cable assembly, 2 m RJ45 CAT.5e FTP patch cable and ISH3030 handset. The RJ45 connection carries TCS:BUS signals; it is a system service connection and must be connected as specified in the TCS instructions.

The interface is powered through USB and requires the appropriate driver and compatible TCS configuration software. The manufacturer identifies configo, ADx and PFS auxiliary programs; some user-software functions require separately purchased activation keys. The interface is IP20 and operates at 0–40 °C, primarily indoors. Check current software and operating-system compatibility before commissioning. Installation and service are intended for qualified electrical professionals.
