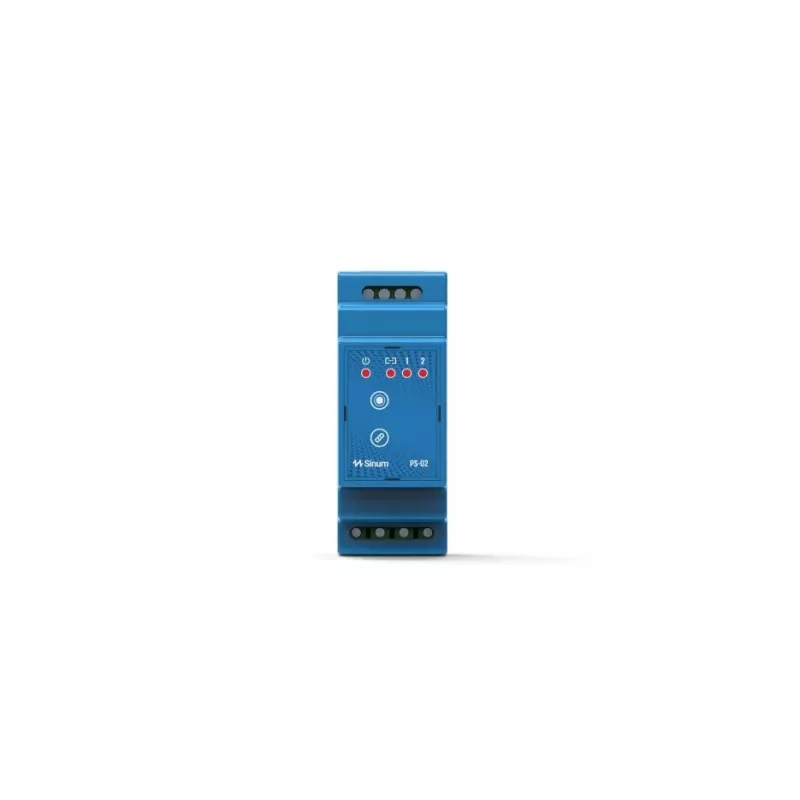

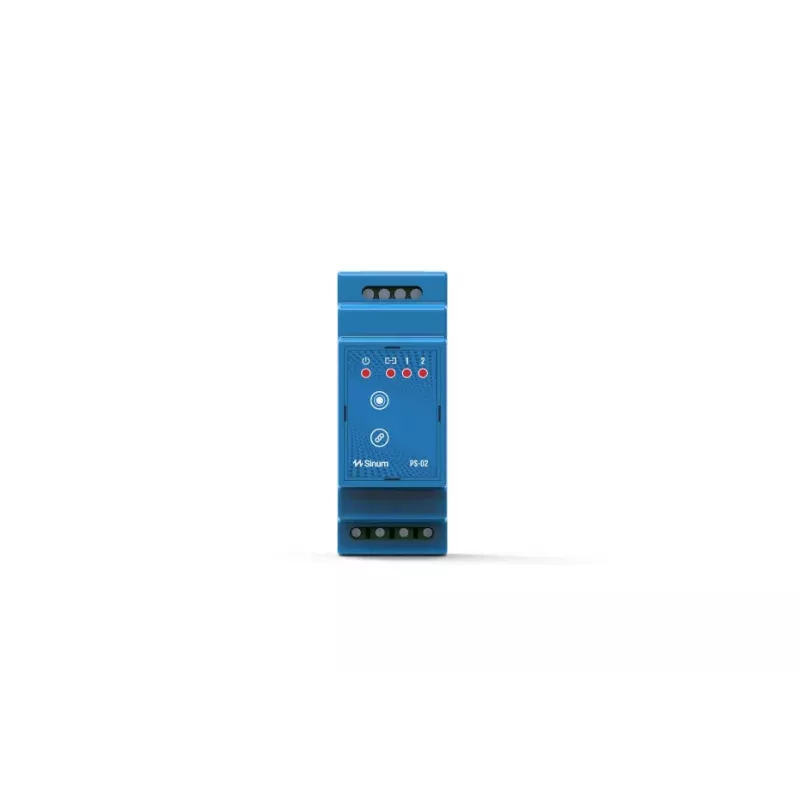

Tech Sterowniki PS-02M langallinen DIN-kiskorele

The Tech Sterowniki PS-02M is a wired DIN rail relay module designed for installation in a distribution board. It features 2 relay outputs and communicates via wired TECH SBUS with the Sinum central unit, allowing independent control of lighting or power circuits through a mobile app or wall switch.

Key features

• 2 relays for controlling 2 lighting/power circuits
• Wired TECH SBUS communication
• DIN rail mounting
• Can be connected to a bell switch control signal
• Enables remote control, scenes, actions, and schedules when programmed with the Sinum central unit

Specifications

• Brand: Tech Sterowniki
• MPN: PS-02m WG.23.0130
• Communication: wired TECH SBUS
• Height: 89 mm
• Width: 35 mm
• Depth: 65 mm
• Power supply: 24 V DC
• Current consumption: 20 mA
• Operating temperature: 5° to 50°C
• Number of relay outputs: 2
• Max. relay load: 5 A
