TechniSat TechniNet BS7 Digital 16-fold Compact Headend -asema DVB-S(2) / DVB-C (0000/5995)

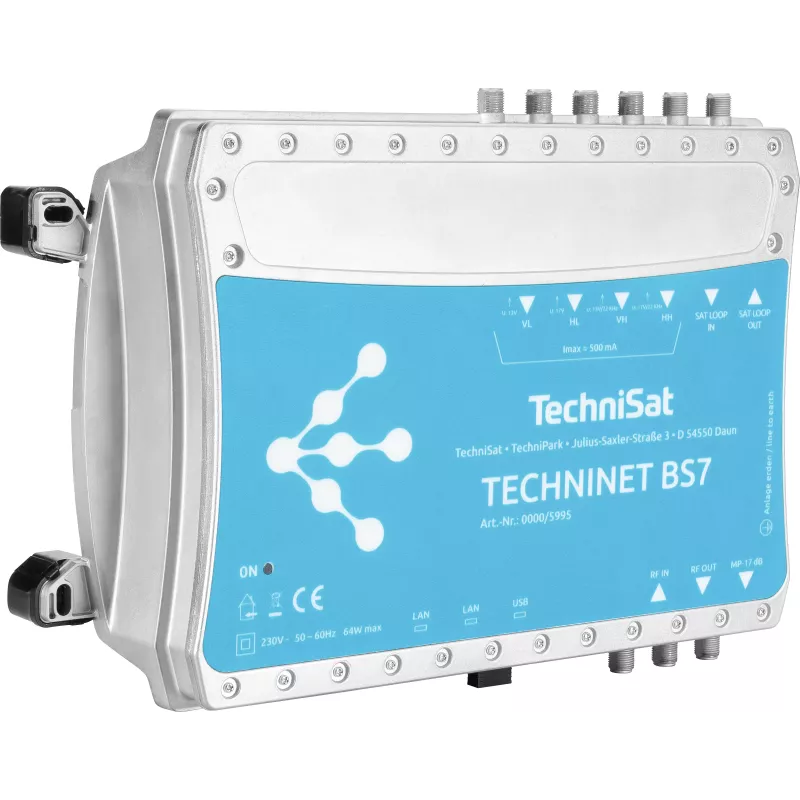

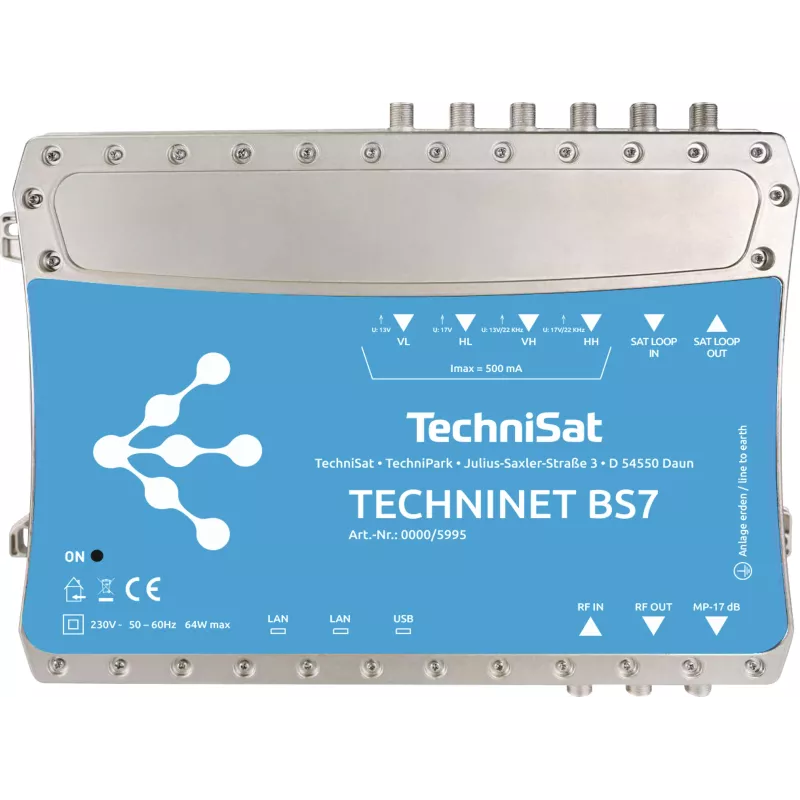

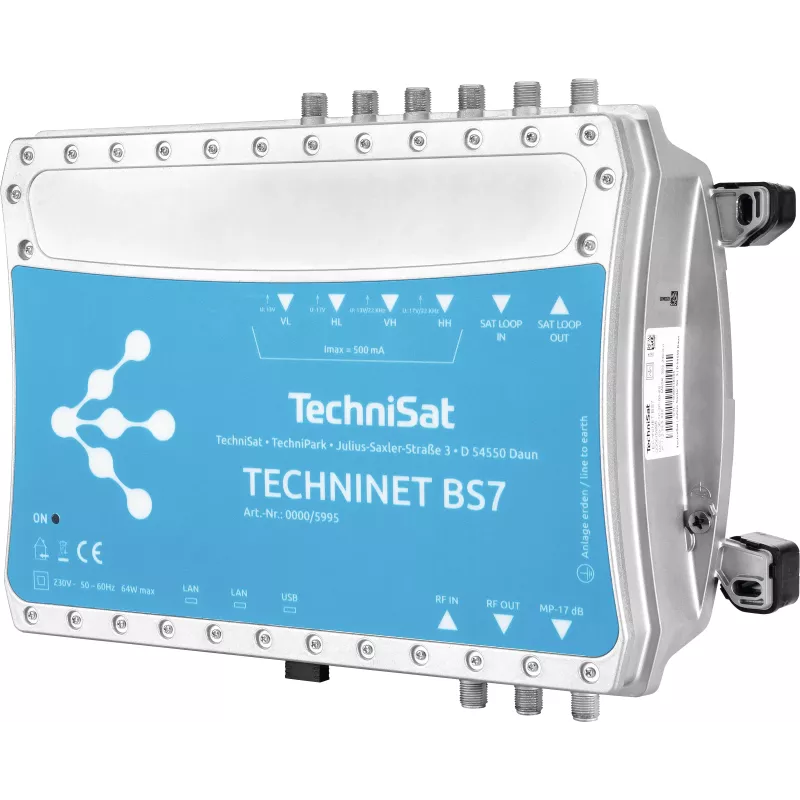

The TechniSat TechniNet BS7 is a professional digital 16-channel compact headend station designed for converting DVB-S/S2 satellite signals to DVB-C cable TV signals. It features 16 DVB-S/S2 input transponders and 16 DVB-C QAM output channels, making it ideal for small to medium-sized distribution systems in hotels, hospitals, or residential complexes. With 4 Common Interface slots for conditional access modules, web-based management, and SNMP monitoring, this unit offers flexible and reliable signal processing.

Advantages

Efficient conversion of up to 16 satellite transponders to cable TV channels with high-quality QAM modulation. The integrated web GUI and SNMP support enable easy configuration and remote monitoring. Four CI slots allow for decryption of pay-TV channels. Compact design supports wall mounting or optional 19-inch rack mounting.

Suitable for

• Hotel and hospitality TV distribution
• Hospital and clinic patient entertainment systems
• Residential multi-dwelling unit (MDU) cable TV networks
• Small to medium commercial headend installations

Key specifications

• Input: 16 DVB-S/S2 transponders (950-2150 MHz)
• Output: 16 DVB-C QAM channels (47-862 MHz)
• Modulation: QAM 16/32/64/128/256
• CI slots: 4 (Common Interface)
• LNB power: 13/18V, 22kHz, DiSEqC 1.0
• Management: Web GUI, SNMP
• Power: AC 100-240V, 50/60Hz, max 40W
• Output level: 90 dBµV (adjustable)
• Operating temperature: 0°C to +45°C

Recommendations

For optimal performance, use with a suitable satellite dish and LNB. The optional 19-inch rack mount kit (sold separately) allows integration into standard racks. Ensure proper ventilation and avoid exceeding the maximum input signal level.
