TechniSat TechniYagi 6 VHF ulko-Yagi-antenni TV:lle ja radiolle

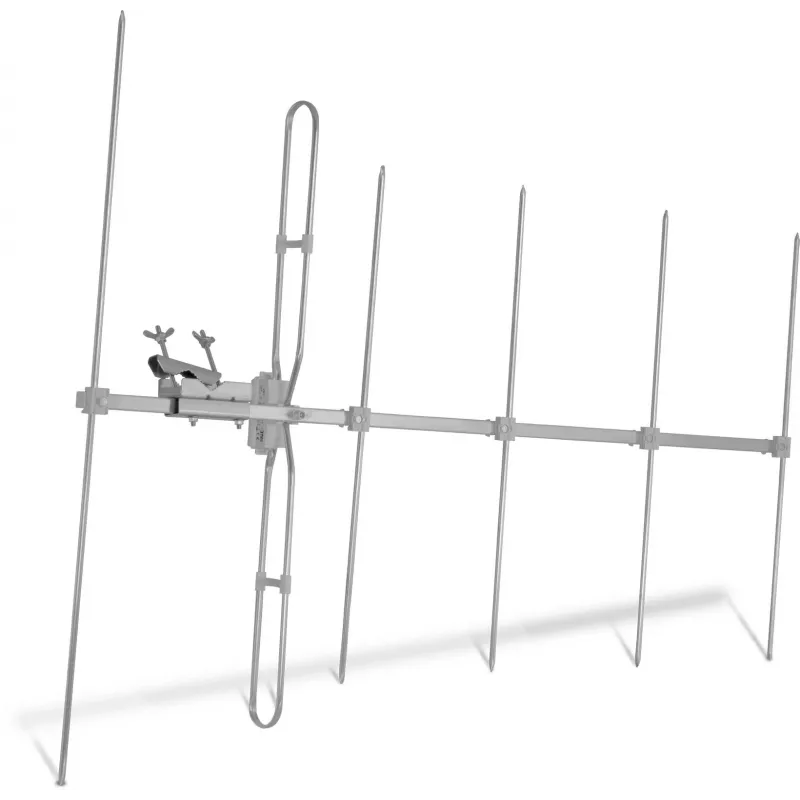

The TechniSat TechniYagi 6 VHF is a high-performance outdoor Yagi antenna designed for reliable reception of VHF Band III signals. Ideal for DVB-T, DAB+, and FM radio, this 6-element antenna delivers a gain of 8.5 dB and features a robust, weatherproof aluminum construction. The included mast clamp allows for easy mounting on masts up to 60 mm diameter, and the F-connector ensures a secure connection. Whether you are in a rural or urban area, the TechniYagi 6 provides excellent signal quality and durability.

Advantages

High gain of 8.5 dB ensures strong signal reception even in challenging conditions. Weather-resistant design guarantees long-lasting performance outdoors. Selectable horizontal or vertical polarization offers flexibility for optimal signal alignment. Lightweight aluminum construction makes installation straightforward.

Suitable for

• Outdoor TV and radio reception in VHF Band III
• DVB-T digital terrestrial television
• DAB+ digital radio
• FM radio reception

Key specifications

• Antenna Type: Yagi
• Frequency Band: VHF Band III (174-230 MHz)
• Number of Elements: 6
• Gain: 8.5 dB
• Impedance: 75 Ohm
• Polarization: Horizontal / Vertical (selectable)
• Connector: F-connector (via matching transformer)
• Material: Aluminum
• Mounting: Mast clamp included (for mast diameters up to 60 mm)
• Weather Resistance: UV-resistant, weatherproof
• Front-to-back Ratio: 15 dB (typical)
• Beam Width (Horizontal): 40° (typical)
• Beam Width (Vertical): 50° (typical)

Recommendations

For best performance, mount the antenna as high as possible with a clear line of sight to the transmitter. Use a high-quality coaxial cable with F-connectors to minimize signal loss.
