Tecline lasikuitupigtailit, OM4, värillinen, LC/UPC, 2,0 m, 12 kpl 20500017

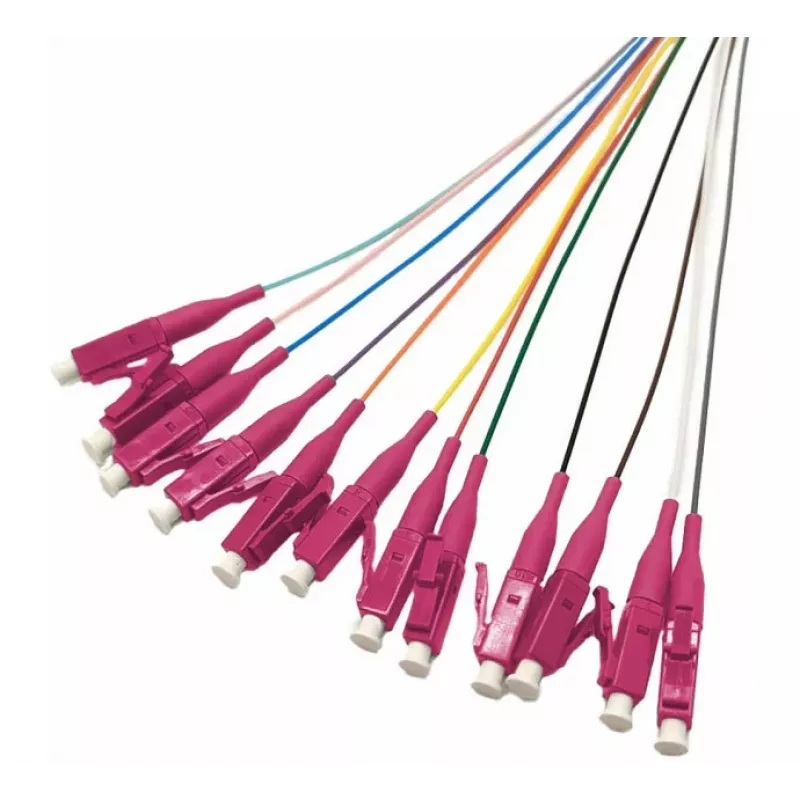

OM4 multimode fiber pigtails with LC/UPC connectors, 50/125 µm core, and LSZH tight buffer. Each pigtail is 2.0 m long, colored per TIA/EIA-598-C for easy identification, and supplied in a pack of 12.

Overview

Tecline fiber optic pigtails are pre-terminated on one end with LC/UPC connectors, ready for splicing or direct termination in patch panels and distribution boxes. The OM4 grade supports high-speed data transmission at 850 nm and 1300 nm, making them suitable for data centers, LANs, SANs, and telecommunications networks.

What stands out

• OM4 multimode fiber with 50/125 µm core/cladding diameter
• LC/UPC connectors with low insertion loss (≤ 0.3 dB) and high return loss (≥ 35 dB)
• Colored buffer (0.9 mm) according to TIA/EIA-598-C for quick identification
• LSZH jacket for low smoke and halogen-free fire safety
• Pack of 12 pigtails, each 2.0 m long

Technical details

• Fiber type: Multimode OM4
• Connector: LC/UPC
• Length per pigtail: 2.0 m
• Core/cladding diameter: 50/125 µm
• Buffer diameter: 0.9 mm, tight buffer
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 35 dB
• Operating wavelengths: 850 nm / 1300 nm
• Jacket material: LSZH
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C

Our verdict

A reliable choice for high-density fiber installations, offering OM4 performance and color-coded identification in a convenient 12-pack.
