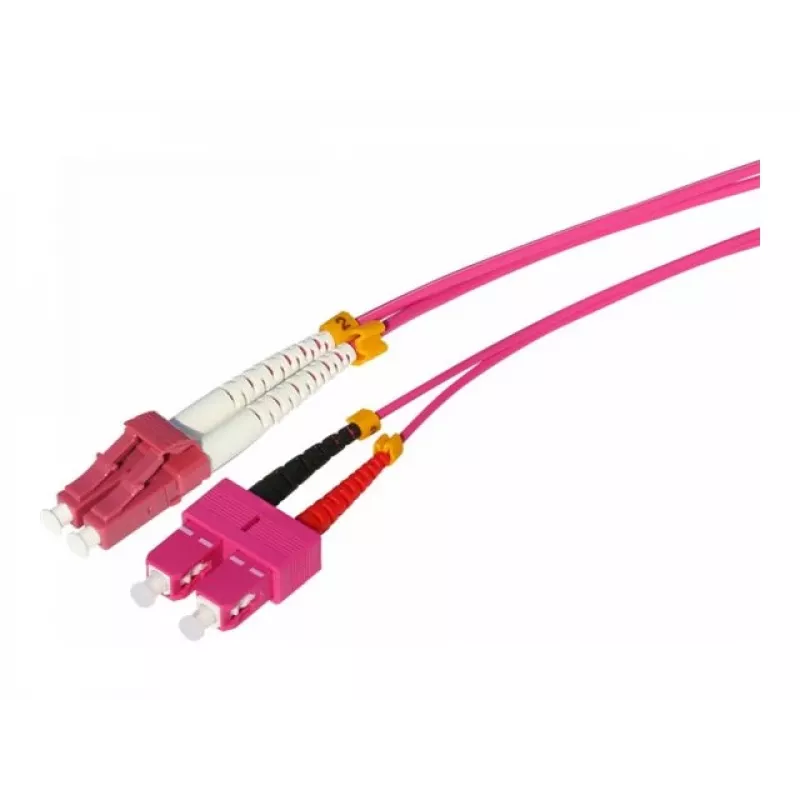

Tecline OM4 kuitu-patchkaapeli LC - SC Duplex, 50/125µm monimuotokaapeli, kanervanvioletti, 20m 798LS20

This Tecline HD fibre patch cable stands out with its OM4 laser-optimised multimode core, supporting 40G and 100G Ethernet over shorter runs where standard OM3 would fall short. The LC-to-SC duplex configuration connects modern transceivers to legacy patch panels without an adapter.

Highlights

• OM4 multimode fibre for 10G up to 550m, 40G up to 150m, and 100G up to 100m
• LC Duplex to SC Duplex connectors with low insertion loss (<0.3dB)
• Erika violet jacket for easy OM4 identification in dense cabling
• 20m length ideal for rack-to-rack or cross-connect runs

In daily use

The 50/125µm core and 850/1300nm operation ensure compatibility with all multimode equipment. The duplex zip-cord design keeps polarity organised, while the violet jacket meets TIA-598 colour standards for OM4.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Multimode OM4
• Core/cladding diameter: 50/125µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Length: 20m
• Jacket colour: Erika violet
• Number of fibres: 2
• Insertion loss: <0.3dB
• Return loss: >30dB
• Wavelengths: 850nm / 1300nm
• Applications: Data centres, SANs, LANs

Final note

For high-density fibre environments, this cable delivers OM4 performance and reliable duplex connectivity in a single, ready-to-use assembly.
