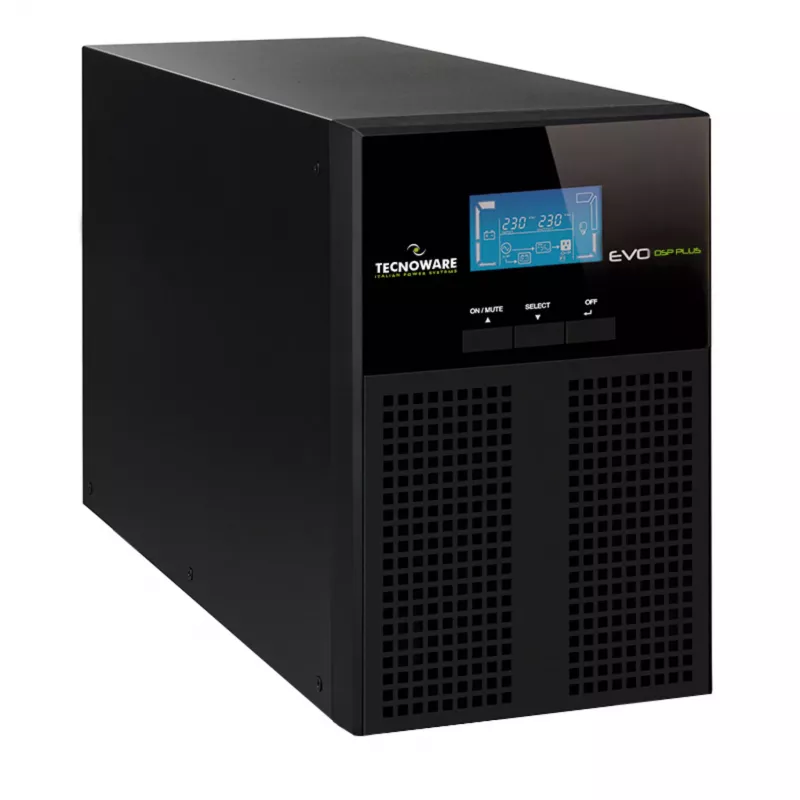

TECNOWARE UPS EVO DSP PLUS 1200 PF 0.9 Tower IEC

The TECNOWARE UPS EVO DSP PLUS 1200 PF 0.9 Tower IEC is a high-performance online double-conversion uninterruptible power supply designed to provide reliable, clean power for critical equipment. With a power factor of 0.9, it delivers 1080W of real power from 1200VA, ensuring efficient energy use and protection for servers, network devices, and industrial electronics.

Advantages

This UPS offers true online double-conversion topology, isolating connected devices from all power disturbances. Its pure sine wave output ensures compatibility with sensitive electronics. The LCD display provides real-time status, and the cold start function allows operation without mains power. ECO mode saves energy with up to 97% efficiency.

Suitable for

• Servers and data centers
• Network switches and routers
• Telecommunications equipment
• Industrial control systems
• Medical devices

Key specifications

• UPS Technology: Online Double Conversion
• Nominal Power: 1200 VA / 1080 W
• Power Factor: 0.9
• Input/Output Voltage: 208/220/230/240 Vac (selectable)
• Output Waveform: Pure Sine Wave
• Output Connections: 3x IEC C13
• Input Connection: 1x IEC C14
• Battery Type: Sealed Lead-Acid (VRLA)
• Battery Configuration: 3x 12V / 7Ah
• Typical Backup Time (50% load): 10 minutes
• Recharge Time: 4-6 hours to 90%
• Communication Interfaces: USB, RS232, Intelligent Slot
• Display Type: LCD
• Form Factor: Tower
• Efficiency (Online Mode): Up to 90%
• Efficiency (ECO Mode): Up to 97%
• Noise Level: < 45 dB
• Cold Start Function: Yes

Recommendations

For optimal performance, install the UPS in a well-ventilated area and avoid overloading. Regularly test the battery and replace every 3-5 years. Use the included USB/RS232 cable for monitoring and automatic shutdown.
