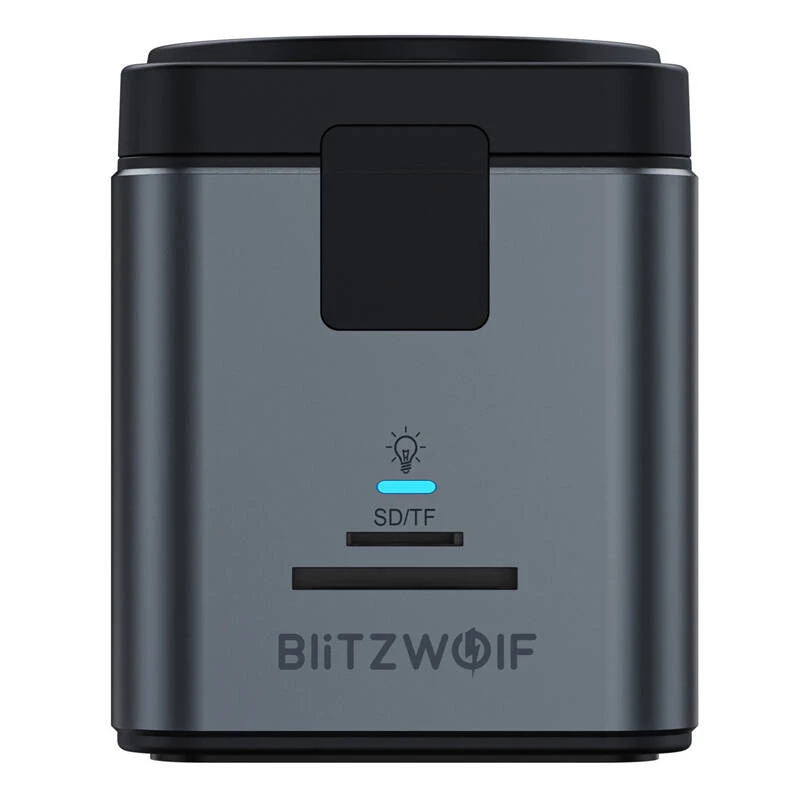

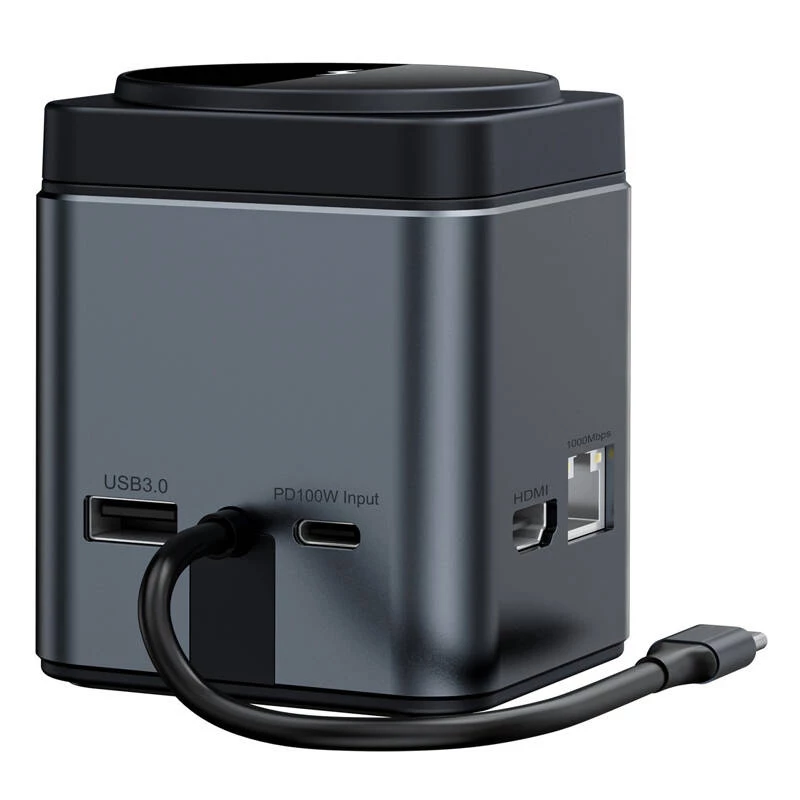

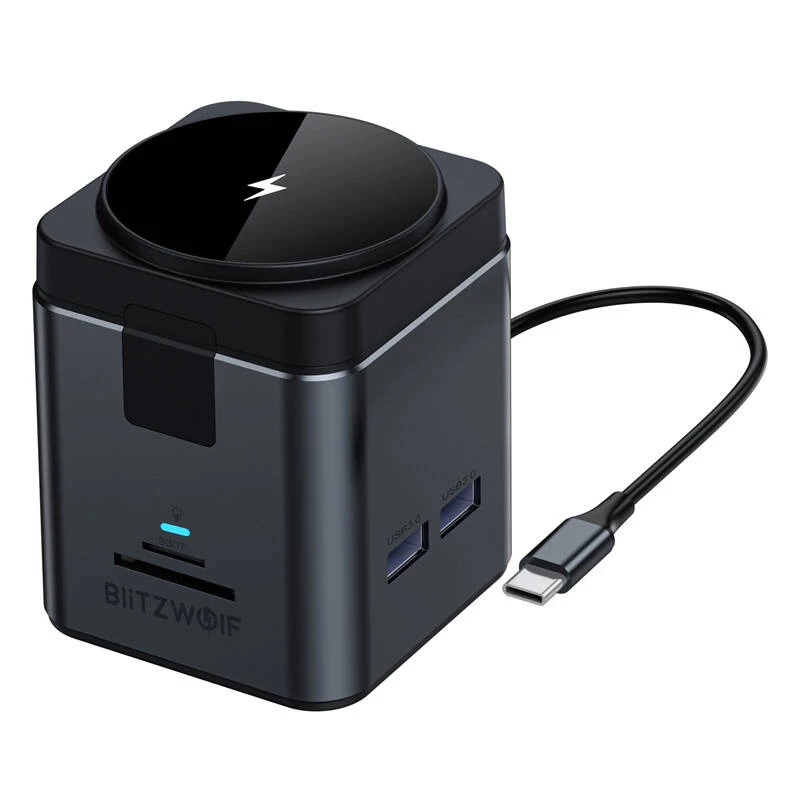

Telakointiasema BlitzWolf BW-TH17 9-in-1 15W laturilla — USB-C, HDMI, PD-liitännät

The Blitzwolf BW-TH17 9-in-1 docking station with 15W wireless charger expands connectivity for laptops and mobile devices by combining multiple ports and wireless charging in a compact aluminum body. It includes USB-C input with Power Delivery 3.0, three USB 3.0 ports, HDMI output, SD and TF card readers, an RJ45 Ethernet port and an integrated Qi charger supporting up to 15 W. The design aims to provide stable wired networking, fast data transfer and convenient device charging in one accessory.

Advantages

The docking station offers fast USB 3.0 data transfer up to 5 Gbps and SD/TF card support for multimedia management. Its USB-C PD 3.0 input accepts up to 100 W to power the hub and deliver up to 85 W to connected laptops. Integrated Qi wireless charging provides up to 15 W for compatible phones and accessories without removing protective cases. The HDMI output supports 4K@30Hz with mirror and extend modes, while the RJ45 port ensures wired network speeds up to 1,000 Mbps. The aluminum housing improves durability and a built-in smart chip manages temperature and prevents overheating.

Key specifications

• Manufacturer: Blitzwolf
• Model: BW-TH17
• Input port: USB-C (PD 3.0, up to 100 W)
• Output ports: USB 3.0 ×3 (up to 5 Gbps each); HDMI (4K@30Hz); RJ45 (up to 1,000 Mbps); SD/TF card readers (up to 480 Mbps, cannot be used simultaneously)

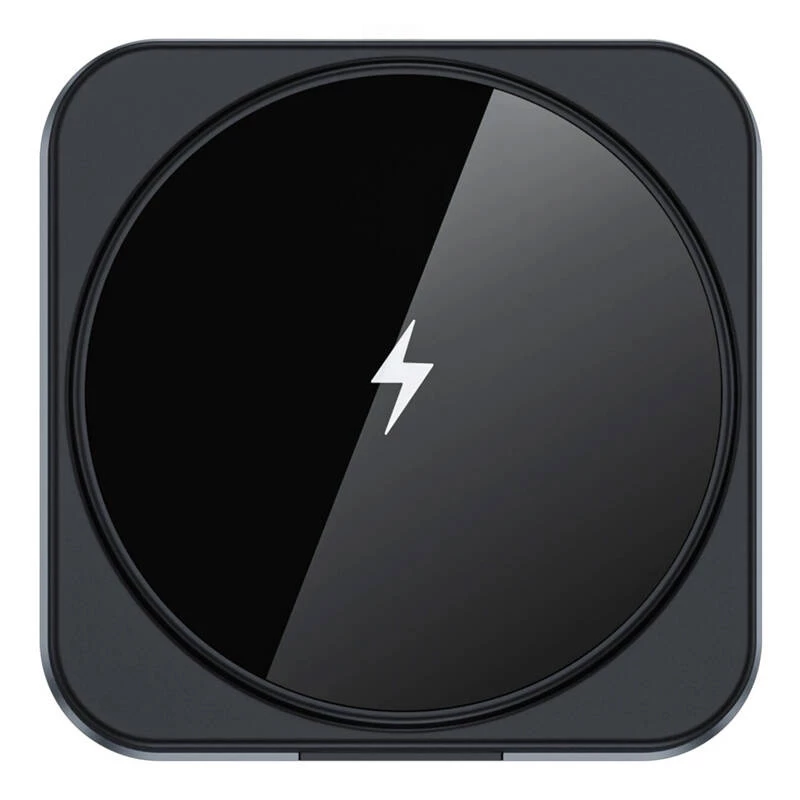

• Wireless charger: 5 / 7.5 / 10 / 15 W
• Housing material: Aluminum
• Compatibility: Windows, macOS, Linux
• Dimensions: 64.5 × 64.5 × 79.5 mm

How to use

Connect the BW-TH17 to your computer using a compatible USB-C cable and, if required, provide power to the hub through the USB-C input supporting PD 3.0. Attach external devices to the available USB 3.0 ports or insert SD/TF cards into the appropriate slots (note that card readers have shared bandwidth and cannot all be used at maximum speed simultaneously). Use the HDMI port to connect an external monitor and choose mirror or extend mode in your operating system display settings. For wired Internet access, plug an Ethernet cable into the RJ45 port. Place a Qi-compatible phone or accessory on the designated charging area to charge wirelessly at up to 15 W; most protective cases are supported.

Recommendations

For best results, use a USB-C power adapter that supports Power Delivery and provides sufficient wattage for your laptop; avoid simultaneous maximum-load transfers from all ports to maintain stable performance. Keep ventilation clear and avoid covering the hub during extended high-load use to allow the built-in thermal management to work effectively.
