Telakointiasema DELL Performance Dock WD19DCS

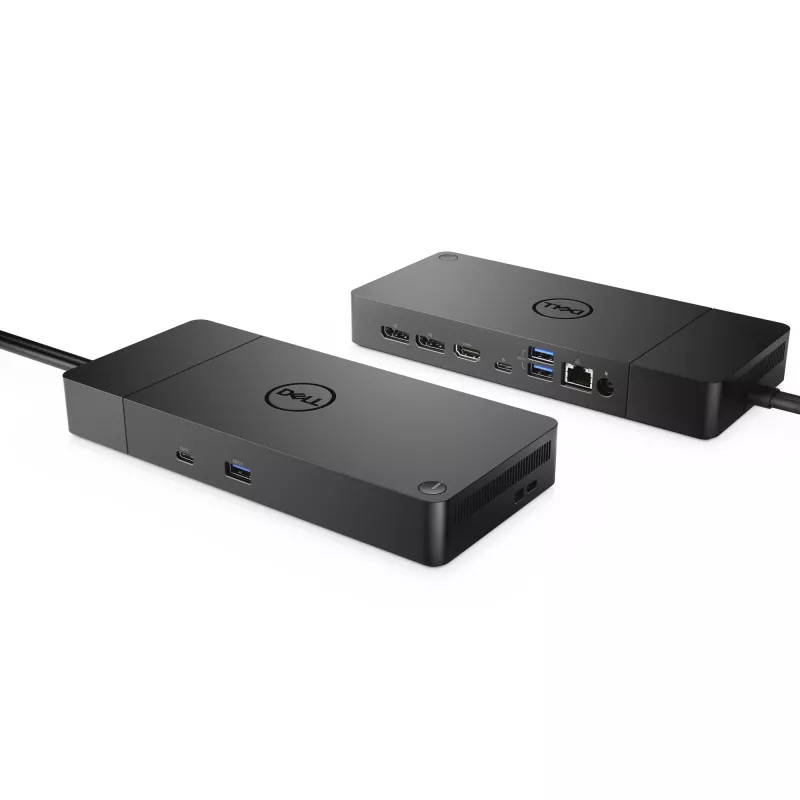

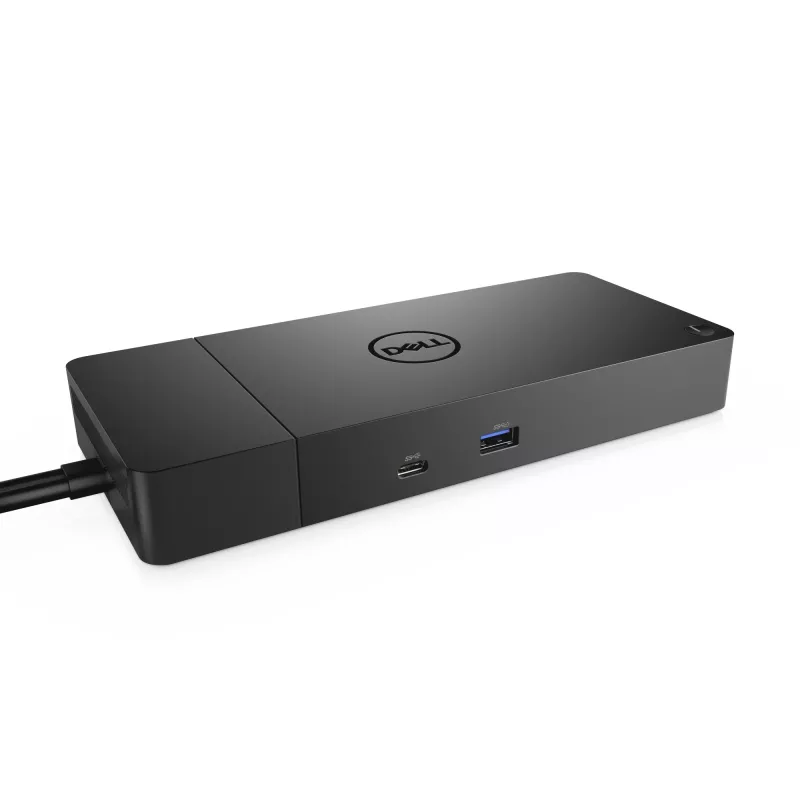

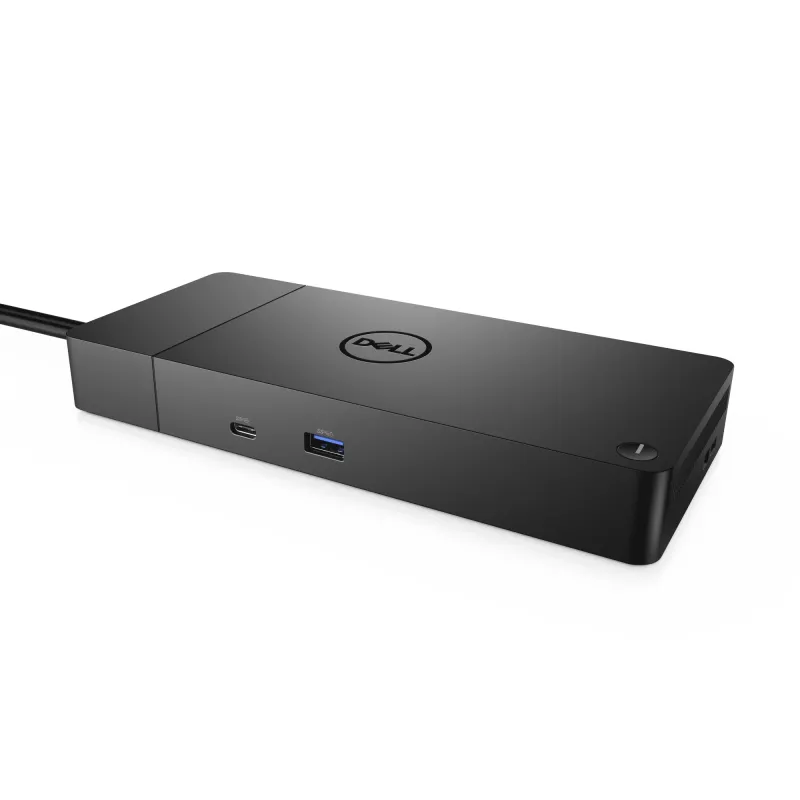

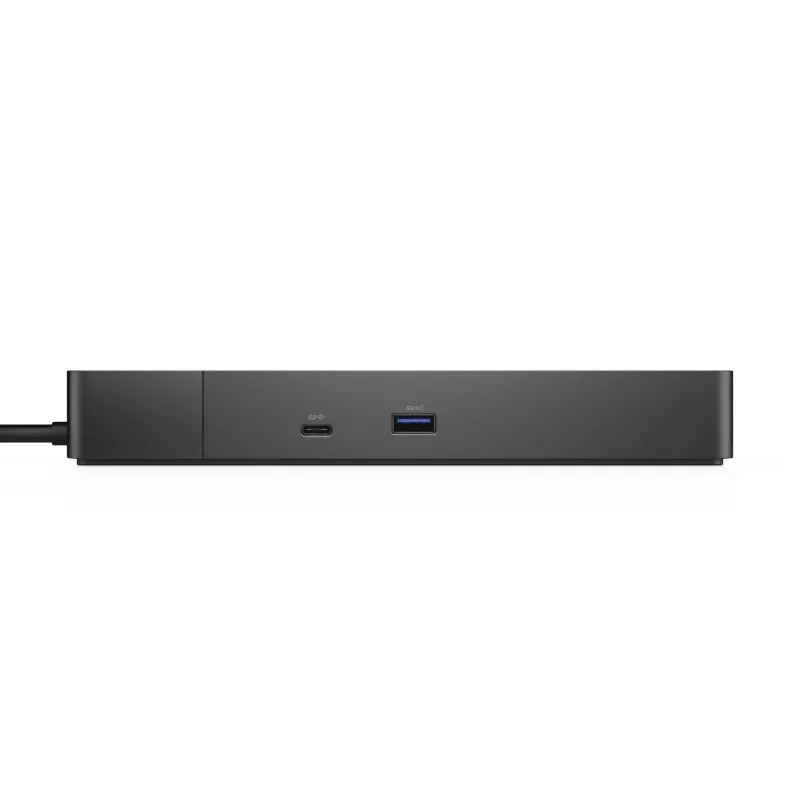

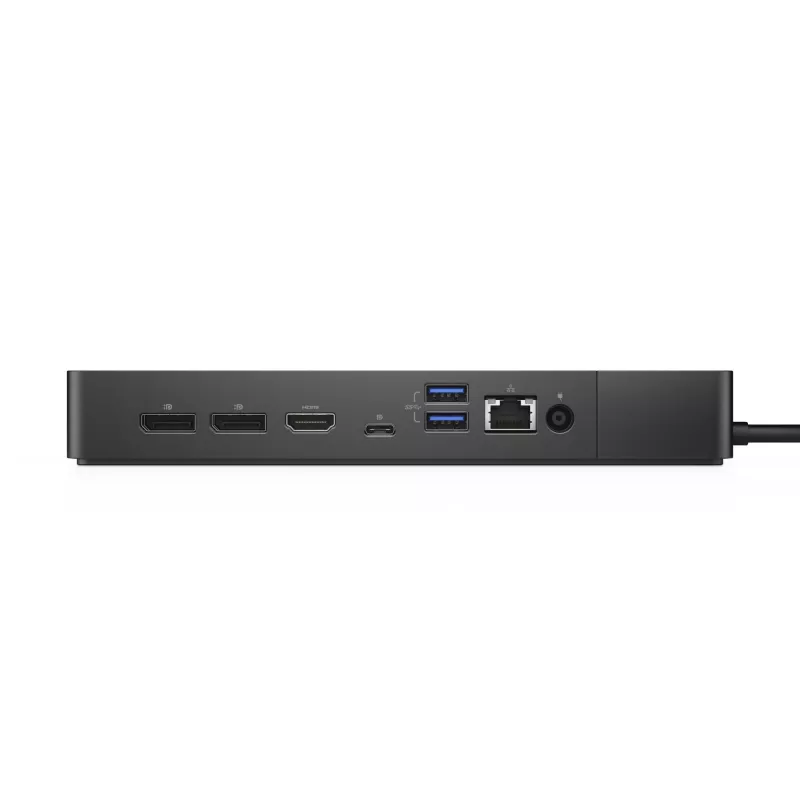

The DELL Performance Dock WD19DCS is a wired docking station designed to expand connectivity for compatible Windows 10 systems. It uses a USB 3.2 Gen 2 Type-C interface for host connection and provides a range of ports including one Ethernet LAN (RJ-45), one HDMI output and three USB 3.2 Gen 1 Type-A ports. The dock supports a maximum digital resolution of 5120 x 2880 pixels for high-resolution displays and is powered via DC with an AC input voltage range of 120–230 V at 50–60 Hz. The unit is finished in black and weighs approximately 0.585 kg.

Advantages

The docking station consolidates wired connectivity into a single hub, enabling a stable Gigabit Ethernet connection and multiple USB Type-A ports for peripherals. Support for up to 5120 x 2880 pixel output makes it suitable for high-resolution monitors. Its USB 3.2 Gen 2 Type-C host interface provides higher data throughput compared with earlier USB generations, and the AC input range allows use in different mains environments without additional converters.

Suitable for

• Connecting a Windows 10 laptop to a wired Gigabit network and external peripherals
• Driving a high-resolution external monitor up to 5120 x 2880 pixels
• Expanding USB-A ports for mice, keyboards, storage and other accessories
• Workstations or hot-desk setups that require stable wired connections and multiple peripherals

Key specifications

• Host interface: USB 3.2 Gen 2 Type-C
• Ethernet: 1 x RJ-45, 10/100/1000 Mbit/s
• Video output: 1 x HDMI, maximum digital resolution 5120 x 2880 pixels
• USB ports: 3 x USB 3.2 Gen 1 (Type-A)
• Connectivity technology: Wired
• Power: DC operation with AC input voltage 120–230 V, 50–60 Hz
• Color: Black
• Weight: 0.585 kg

How to use

Connect the dock to a compatible Windows 10 laptop using the USB-C host cable. Plug the AC power adapter into the dock and to a mains outlet within the 120–230 V, 50–60 Hz range. Attach an Ethernet cable to the RJ-45 port for wired network access, connect an external monitor to the HDMI output, and plug peripherals such as keyboard, mouse or external drives into the USB 3.2 Gen 1 Type-A ports. The operating system should detect connected devices; install any required drivers provided by Dell for full functionality if prompted.

Recommendations

For reliable network performance, use a high-quality Cat5e or Cat6 Ethernet cable. When driving very high-resolution displays, verify that both the host laptop and the HDMI display support the target resolution to ensure optimal output. Keep the dock in a well-ventilated area and use the supplied power adapter to maintain stable operation.
