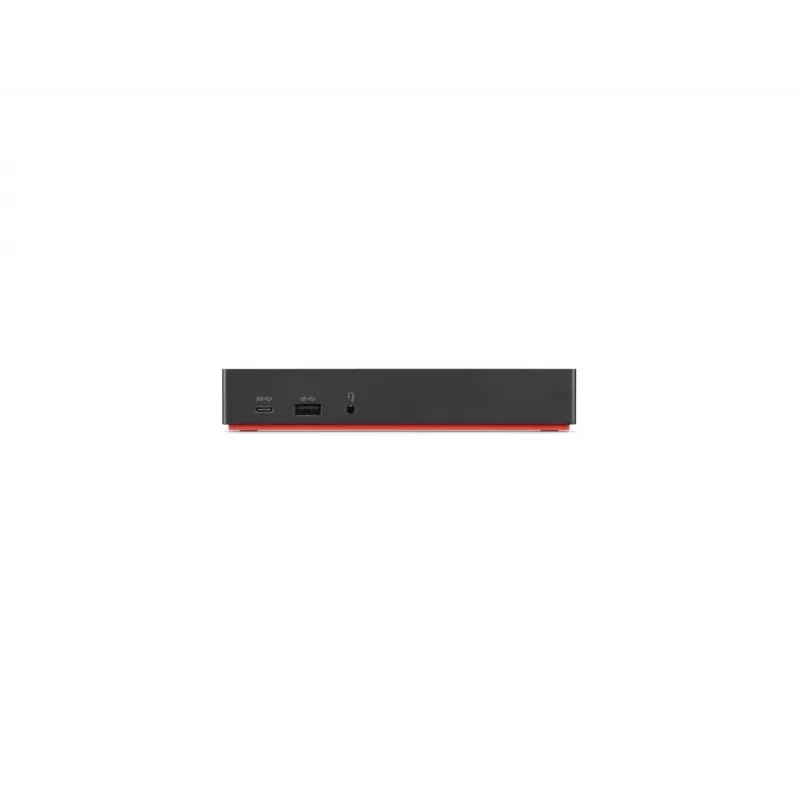

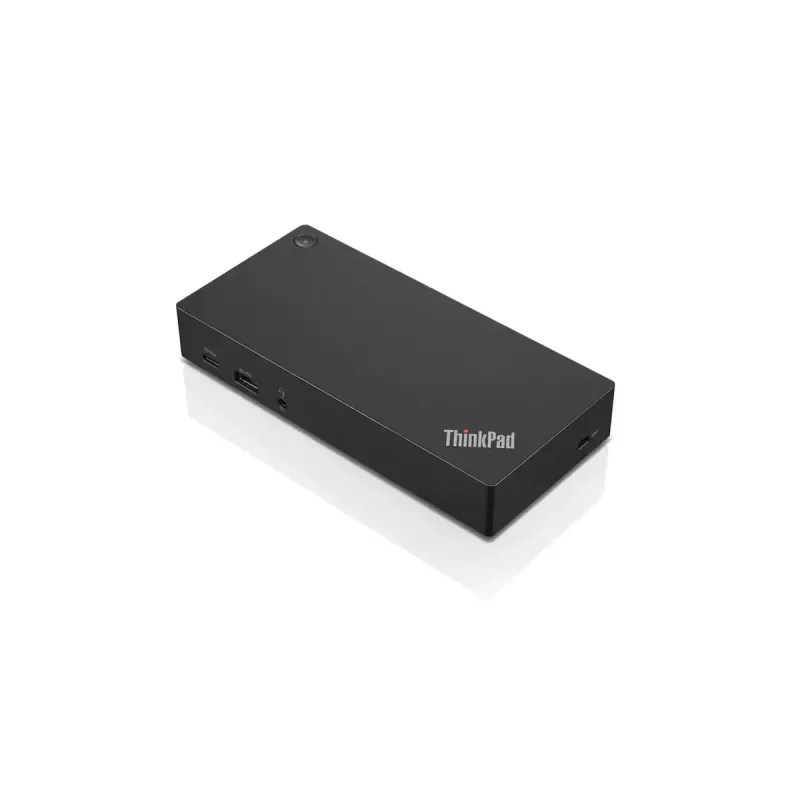

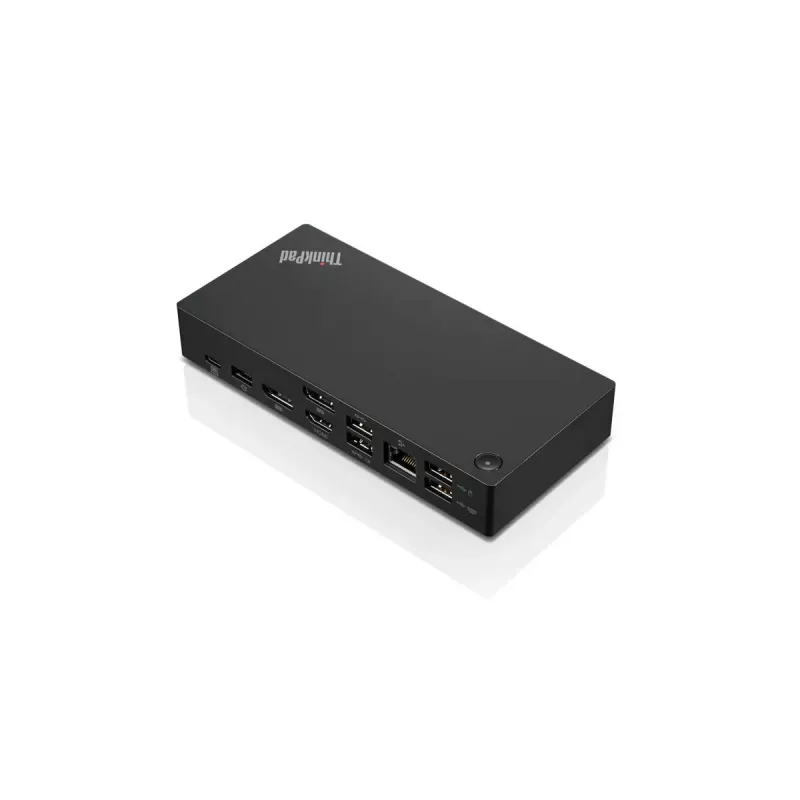

Telakointiasema Lenovo ThinkPad Universal USB-C Dock 1×HDMI ja 2×DisplayPort

Lenovo ThinkPad Universal USB-C Dock connects a compatible laptop via USB-C to expand display and peripheral options. The dock provides one HDMI and two DisplayPort outputs, multiple USB ports, Ethernet and audio, and supports power delivery when used with a suitable adapter. It is designed for use on desks to simplify cable management and enable multi-monitor setups with hot-docking convenience.

Advantages

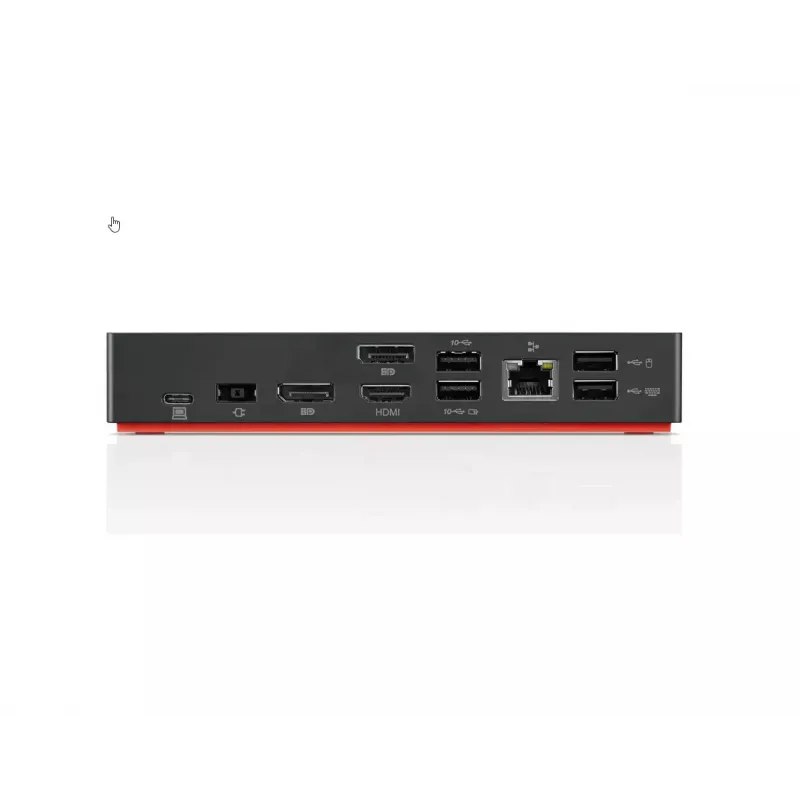

The docking station offers three video outputs (1×HDMI, 2×DisplayPort) for flexible monitor configurations and includes Ethernet (RJ-45), combined stereo/microphone audio, three USB 3.0 (Gen 1) ports, one USB-C (3.1 Gen 1) port and two USB 2.0 ports for peripherals. It supports power delivery: 65W output with the supplied adapter or up to 100W output with a 135W power adapter. The unit is compact and compatible with a wide range of USB-C notebooks.

Suitable for

• Office workstations requiring multiple monitors
• Home offices and remote work setups
• Presentations and meeting rooms
• Users who need wired Ethernet and additional USB ports

Key specifications

• Brand: Lenovo; Model family: ThinkPad Universal USB-C Dock - EU; MPN: 40AY0090MX
• Video outputs: 1×HDMI, 2×DisplayPort
• USB ports: 3×USB 3.0 (3.1 Gen 1), 1×USB-C (3.1 Gen 1), 2×USB 2.0
• Ethernet: 1×RJ-45
• Audio: Stereo/Mic combo port

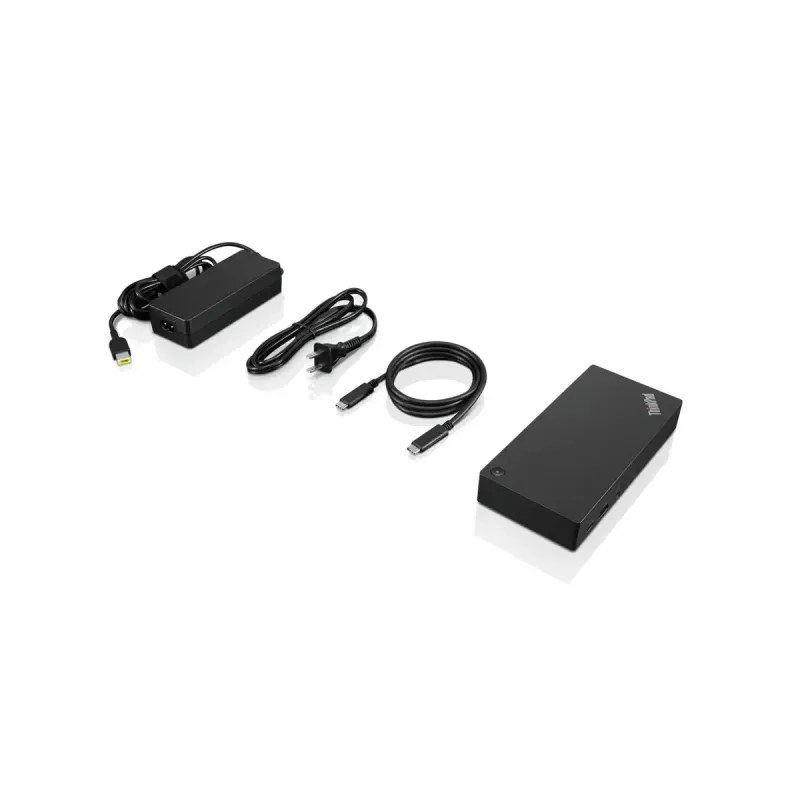

• Power output: 65W (standard); up to 100W when used with 135W adapter
• Type: Docking station; Producer: Lenovo; Warranty: 12 months
• Package: gross weight 0.60 kg, net weight 0.50 kg; packing quantity 1 pc

How to use

Connect the dock to a compatible laptop using the USB-C cable. Attach monitors to the HDMI and DisplayPort outputs and connect peripherals to the available USB ports. Plug an appropriate power adapter into the dock to enable power delivery to the connected laptop. Configure display settings on the laptop operating system to arrange multiple screens as needed.

Recommendations

Use a 90W or 135W Lenovo power adapter if your laptop requires higher charging power; verify USB-C port compatibility (DisplayPort Alt Mode and power delivery) on the notebook before use. Place the dock on a flat, ventilated surface and avoid blocking ports during operation.
