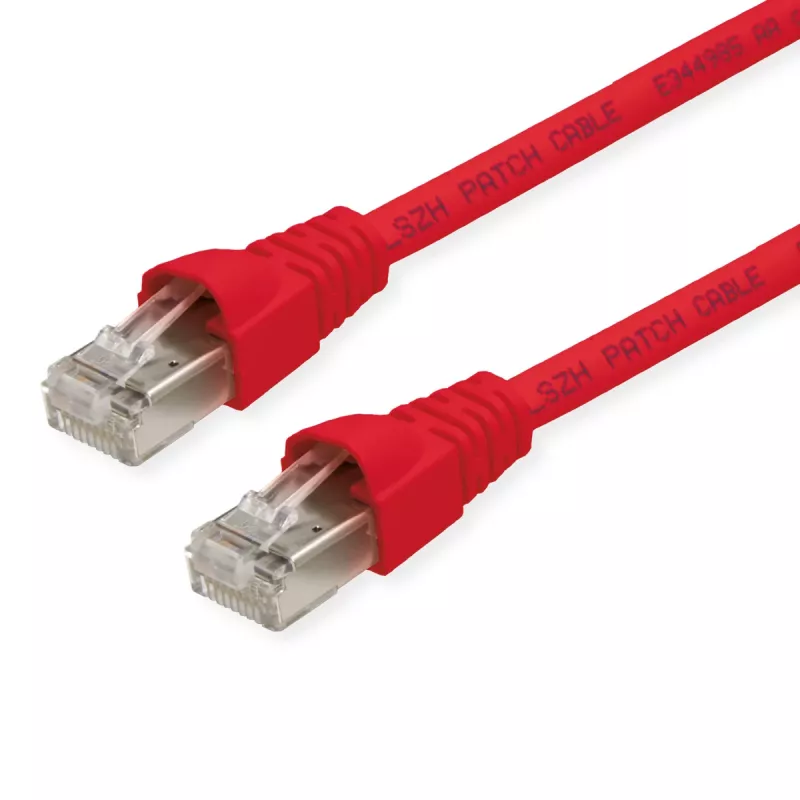

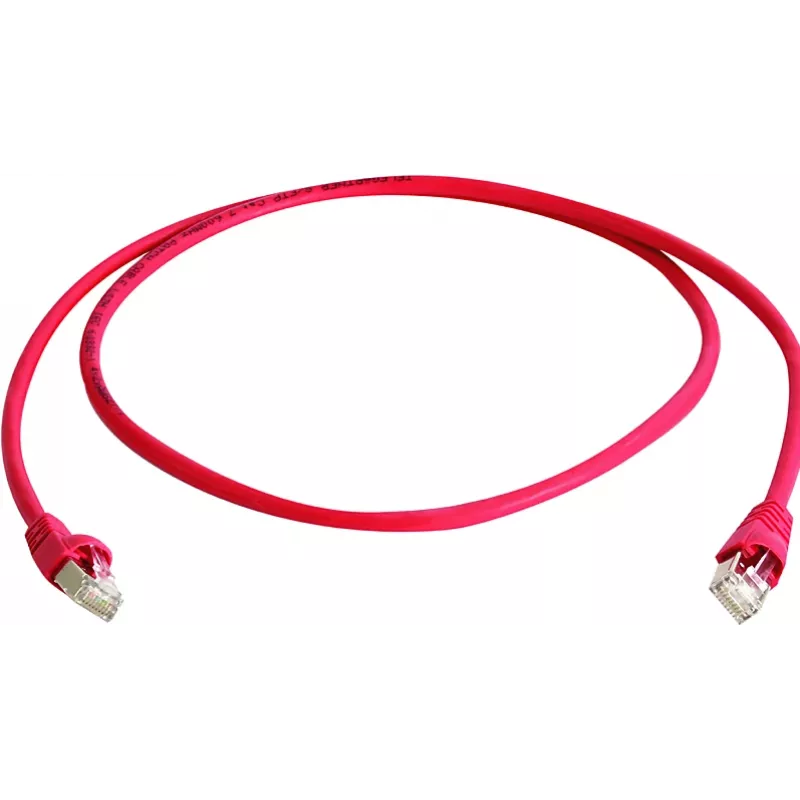

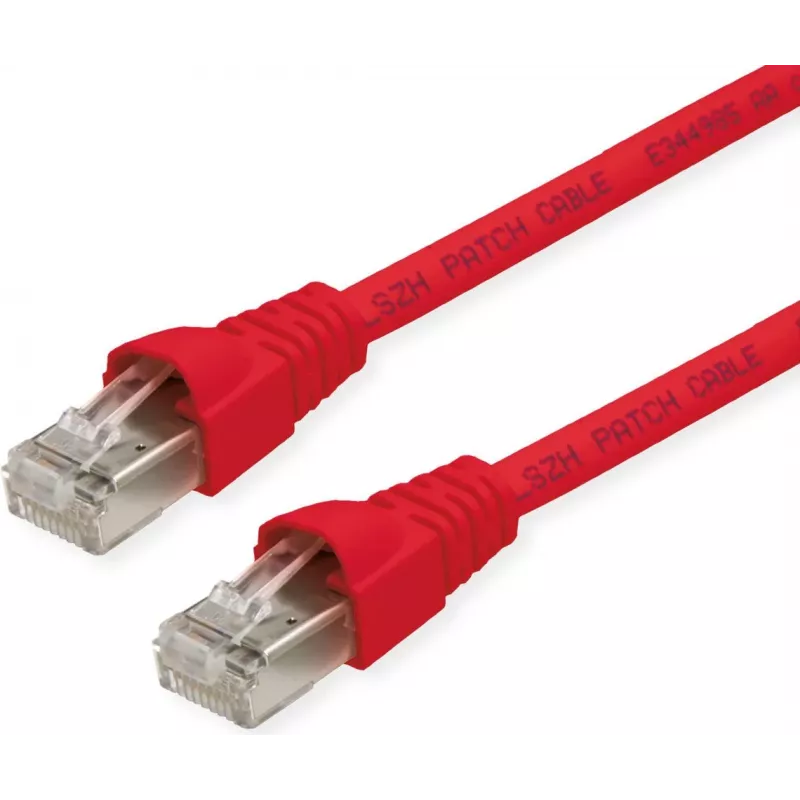

TELEGÄRTNER 100028072 Cat6a S/FTP -patchkaapeli, 5,5 m, punainen

This 5.5 m Cat6a S/FTP patch cable delivers 10 Gigabit Ethernet with 500 MHz bandwidth, ensuring high-speed, interference-free connections for demanding network environments.

Overview

The TELEGÄRTNER 100028072 is a high-performance network patch cable designed for 10GBASE-T applications. Its S/FTP shielding (screened foiled twisted pair with individually foiled pairs) provides excellent protection against electromagnetic interference, making it suitable for data centres and industrial settings.

What stands out

• Cat6a performance: supports 10 Gbps up to 100 m
• S/FTP shielding: each pair is foiled and the overall cable is screened
• Gold-plated RJ45 connectors: 50µ" plating for reliable contacts
• LSZH jacket: low smoke zero halogen for safety in fire conditions
• Snagless molded boots: protect the locking tab during installation

Technical details

• Category: Cat6a (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 5.5 m
• Colour: Red
• Connector type: RJ45 (8P8C) male to male
• Conductor: stranded copper, AWG 26/7
• Jacket material: LSZH
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA 568B
• Operating temperature: -20°C to +60°C
• Outer diameter: 6.2 mm

Our verdict

A reliable, future-proof patch cable for 10G networks, with robust shielding and a safety-focused jacket.
