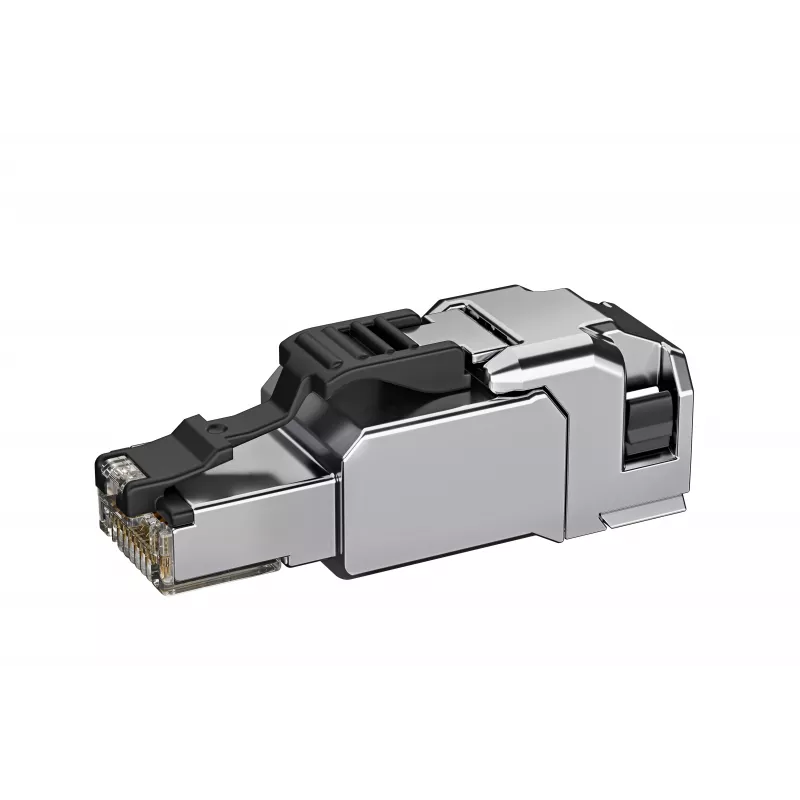

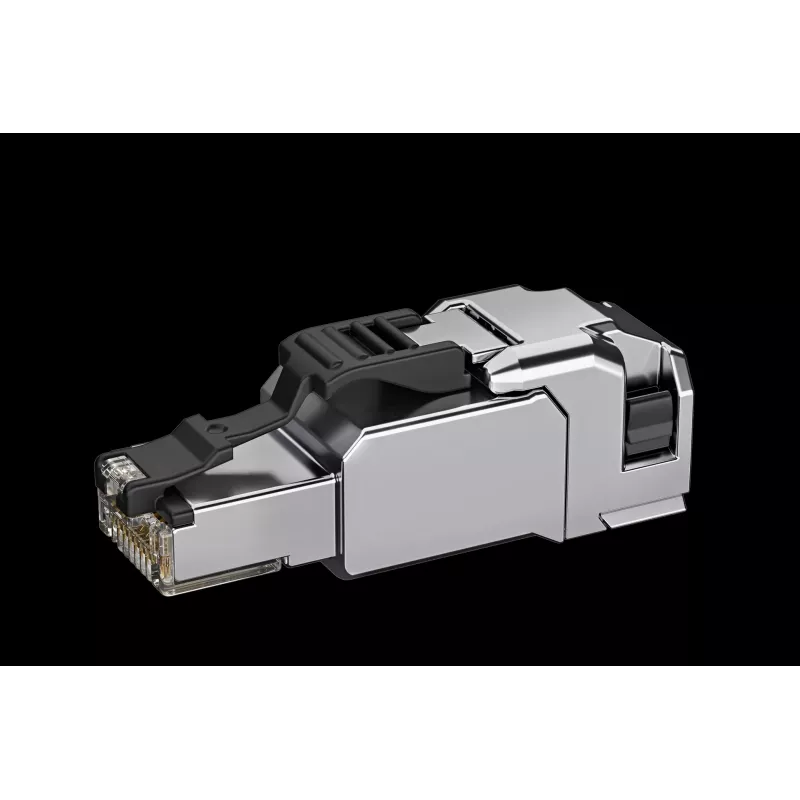

TELEGÄRTNER 100039917 RJ45 kenttäasennettava liitin Cat.6A suojattu ruostumaton teräs

Installing RJ45 plugs on thick or shielded cables in the field often means wrestling with crimp tools and hoping the connection survives. The TELEGÄRTNER 100039917 solves this with a tool-free, reusable field-termination connector that handles solid or stranded conductors from AWG 24 to AWG 22 and cable diameters from 4.5 mm to 9.0 mm.

Who is it for

Network installers and maintenance technicians who need reliable 10-Gigabit connections without carrying a crimper. It suits industrial Ethernet, structured cabling repairs, and any job where a fast, repeatable field termination is required.

Main features

• Tool-free IDC termination – no crimp tool needed
• Cat.6A performance for 10GBASE-T up to 500 MHz
• Shielded design with stainless steel housing for durability
• Supports solid AWG 24/1–22/1 and stranded AWG 27/7–22/7
• Accepts cable outer diameter 4.5–9.0 mm
• Gold-plated contacts (50µ" over nickel) for reliable mating
• Reusable up to 10 times
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• Operating temperature range -40°C to +85°C

Specifications

• Connector type: RJ45 plug, 8P8C
• Performance category: Cat.6A
• Shielding: shielded (STP/FTP)
• Housing material: stainless steel
• Termination method: tool-free IDC
• Wire gauge solid: AWG 24/1 - AWG 22/1
• Wire gauge stranded: AWG 27/7 - AWG 22/7
• Cable outer diameter: 4.5 mm - 9.0 mm
• Contact plating: gold (50µ" over nickel)
• Mating cycles: ≥ 750
• Data rate: up to 10 Gigabit Ethernet
• Wiring scheme: T568A and T568B
• Flammability rating (plastic parts): UL94 V-0
• Protection class: IP20

Tips

For best results, strip the cable jacket to the recommended length and follow the colour code printed on the connector. The connector can be re-terminated up to 10 times, making it ideal for moves, adds, and changes.
