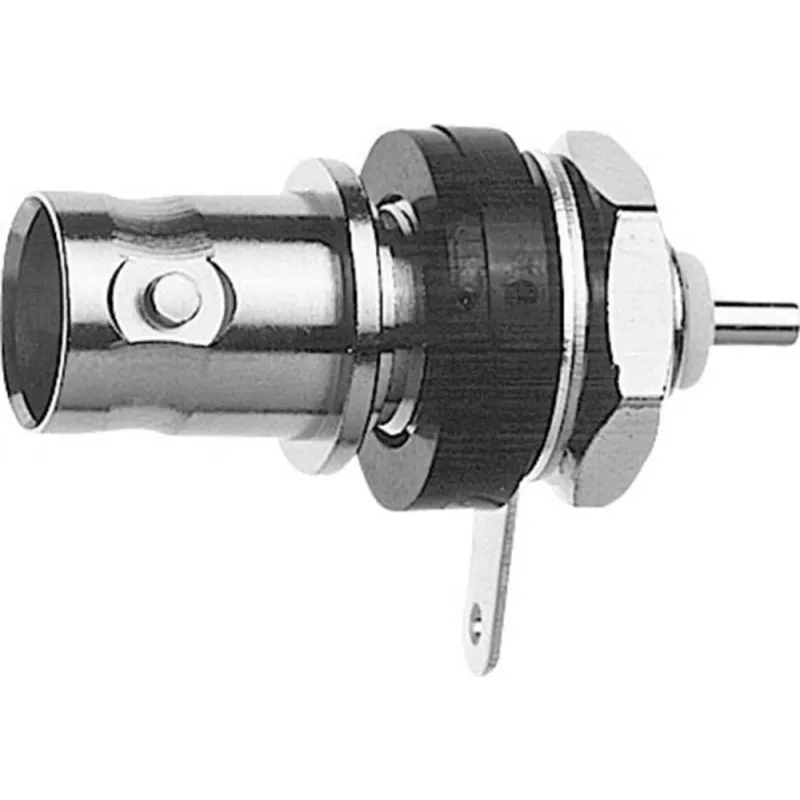

Telegärtner BNC-kojerasia, eristetty 75 Ohm, sinisillä eristelevyillä, Z03-sarja J01003D1286

BNC panel mount jack connector with isolated mounting and blue insulating washers, delivering reliable 75 Ohm performance for video and RF applications. The connector features a nickel-plated brass body and gold-plated beryllium copper center contact for excellent conductivity and corrosion resistance.

Advantages

Isolated panel mounting prevents ground loops and ensures signal integrity. PTFE dielectric provides stable performance across the full DC to 1 GHz frequency range. High insulation resistance (≥ 5 GΩ) and low contact resistance ensure minimal signal loss. Designed for at least 500 mating cycles, making it suitable for repeated connections.

Suitable for

• Broadcast and professional video equipment
• Telecommunications and RF systems
• Test and measurement setups requiring 75 Ohm impedance
• Panel-mounted applications where isolation is required

Key specifications

• Connector type: BNC jack (female), panel mount
• Impedance: 75 Ohm
• Frequency range: DC to 1 GHz
• Voltage rating: 500 V RMS
• Insulation resistance: ≥ 5 GΩ
• Contact resistance: center ≤ 1.5 mΩ, outer ≤ 1 mΩ
• VSWR: ≤ 1.2 at 1 GHz
• Operating temperature: -40°C to +85°C
• Body material: brass, nickel plated
• Center contact: beryllium copper, gold plated
• Dielectric: PTFE
• Insulating washers: blue, included
• Series: Z03

Recommendations

Ideal for professional installations requiring a reliable, isolated 75 Ohm BNC connection. The included blue insulating washers provide clear visual identification and electrical isolation. Ensure proper panel cutout dimensions for secure mounting.
