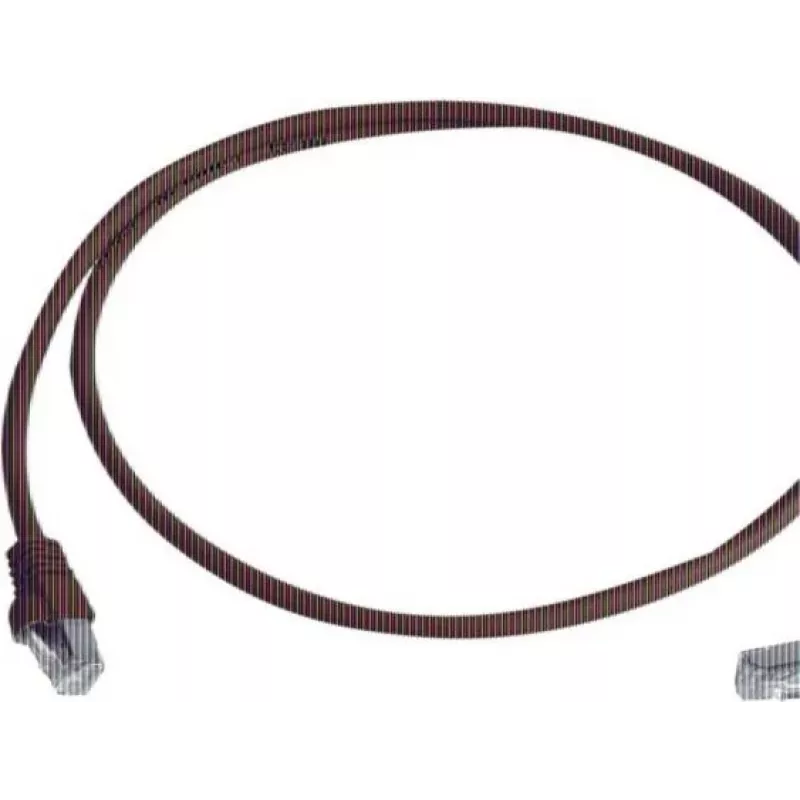

Telegärtner Cat 6A S/FTP patchkaapeli, 2 m, punainen, yksi kulma RJ45 L00001A0157

This Telegärtner patch cable stands out with its one-sided 90° angled RJ45 connector, making it ideal for tight spaces behind desks or in cabinets where a straight plug would protrude. The S/FTP construction with PiMF (pairs in metal foil) ensures superior shielding, supporting 10 Gigabit Ethernet over 2 meters.

Highlights

• Cat 6A performance for 10GBASE-T networks
• S/FTP shielding with PiMF for maximum crosstalk protection
• One straight and one 90° angled RJ45 connector
• LSZH jacket for low smoke and halogen-free safety
• Red colour for easy identification

In daily use

The angled connector allows the cable to run flush along a wall or desk, reducing strain on the port and saving space. The stranded copper conductors provide flexibility for frequent moves, while the snagless molded boot protects the locking tab.

Full specifications

• Cable length: 2.0 m
• Cable standard: Cat 6A
• Cable shielding: S/FTP
• Pair shielding: PiMF
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector 1: RJ45 male, straight
• Connector 2: RJ45 male, 90° angled
• Jacket material: LSZH
• Conductor material: Copper
• Conductor construction: Stranded
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C

Final note

Engineered for high-density environments, this cable combines performance and space-saving design without compromising on shielding.
